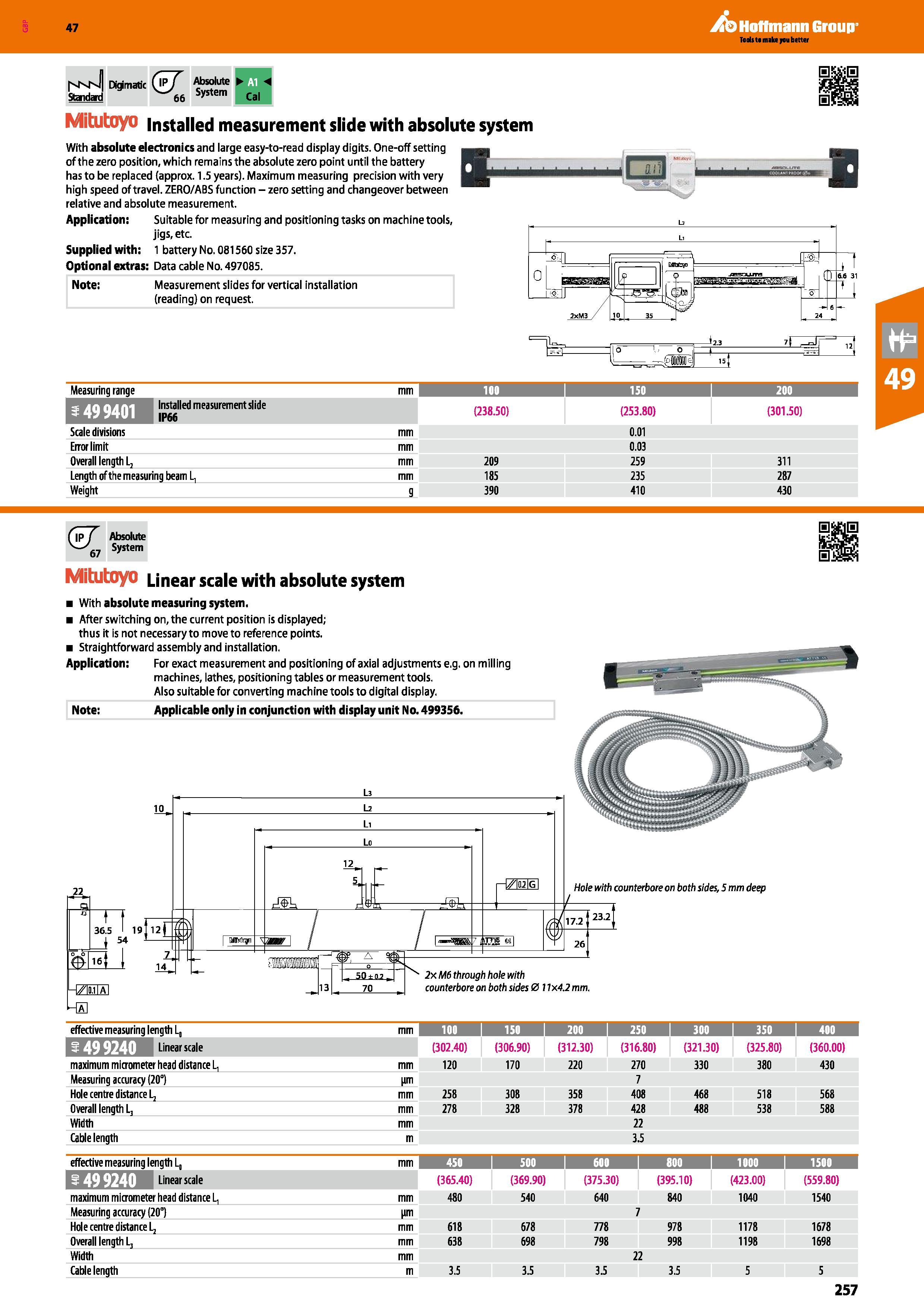

Hoffmann Group 47 I'vM'J Standard Digimatic (&T 66 Absolute System Cal Mitutoyo installed measurement slide with absolute system I With absolute electronics and large easy-to-read display digits. One-off setting of the zero position, which remains the absolute zero point until the battery has to be replaced (approx. 1.5 years). Maximum measuring precision with very high speed of travel. ZERO/ABS function - zero setting and changeover between relative and absolute measurement. Application: Suitable for measuring and positioning tasks on machine tools, jigs, etc. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497085. Note: Measurement slides for vertical installation (reading) on request. 7I r=d 12 Ud . MMI. 1 , Eld 15 Measuring range mo 150 200 Installed measurement slide ip66 (238.50) (253.80) (301.50) Scale divisions mm 0.01 Error limit mm 0.03 Overall length L2 mm 209 259 311 Length of the measuring beam L, mm 185 235 287 Weight g 390 410 430 (zT 67 Absolute System Mitutoyo Linear scale with absolute system With absolute measuring system. After switching on, the current position is displayed; thus it is not necessary to move to reference points. Straightforward assembly and installation. Application: For exact measurement and positioning of axial adjustments e.g. on milling machines, lathes, positioning tables or measurement tools. Also suitable for converting machine tools to digital display. Note: Applicable only in conjunction with display unit No. 499356. Qt ti t t 36.5 1 5,4 Tii -1/10.11 Al l-H 12 Eli MITnflrp 5.h 7me\ Hole with counterbore on both sides, 5 mm deep I- 2xM6 through hole with counterbore on both sides 0 11x4.2 mm. effective measuring length L, mm 100 i 150 i 200 i 250 300 350 400 ryLl'VT flB Linear scale (302.40) (306.90) (312.30) (316.80) (321.30) (325.80) (360.00) maximum micrometer head distance L, mm 120 170 220 270 330 380 430 Measuring accuracy (20°) im 7 Hole centre distance Lj mm 258 308 358 408 468 518 568 Overall length L, mm 278 328 378 428 488 538 588 Width mm 22 Cable length m 3.5 effective measuring length L, mm 450 500 \ 600 i 800 iooo i 1500 1 tT;V7FlW Linear scale (365.40) (369.90) (375.30) (395.10) (423.00) (559.80) maximum micrometer head distance L, mm 480 540 640 840 1040 1540 Measuring accuracy (20°) im 7 Hole centre distance L2 mm 618 678 778 978 1178 1678 Overall length L, mm 638 698 798 998 1198 1698 Width mm 22 Cable length m 3.5 3.5 3.5 3.5 5 5 257
