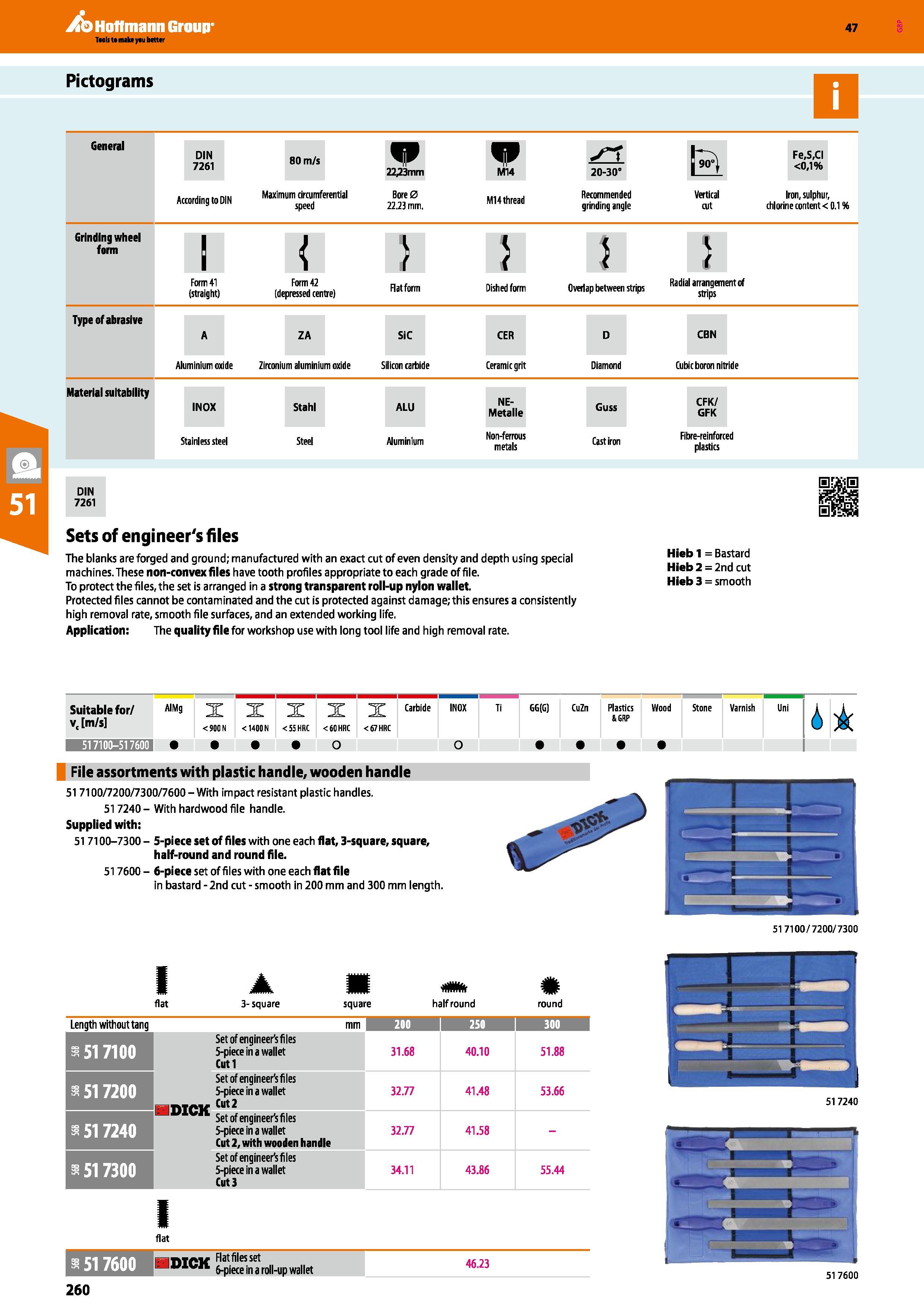

Hoffmann Group 47 Pictograms General DIN 7261 According to DIN 80 m/s Maximum circumferential speed 22,23mm Bore0 22.23 mm. f M14 M14 thread 20-30" Recommended grinding angle Vertical cut Fe,S,CI <0,1% Iron, sulphur, chlorine content <0.1% Grinding wheel form J Form 41 (straight) Form 42 (depressed centre) Flat form Dished form Overlap between strips Radial arrangement of strips Type of abrasive A ZA Aluminium oxide Zirconium aluminium oxide S SiC ilicon carbid e CER Ceramic grit D Diamond CBN Cubic boron nitride Material suitability S INOX tainless stef l Stahl Steel ALU Aluminium NE- Metalle Non-ferrous metals Guss Cast iron CFK/ GFK Fibre-reinforced plastics DIN 7261 Sets of engineer's files The blanks are forged and ground; manufactured with an exact cut of even density and depth using special machines. These non-convex files have tooth profiles appropriate to each grade of file. To protect the files, the set is arranged in a strong transparent roll-up nylon wallet. Protected files cannot be contaminated and the cut is protected against damage; this ensures a consistently high removal rate, smooth file surfaces, and an extended working life. Application: The quality file for workshop use with long tool life and high removal rate. Hieb 1 = Bastard Hieb 2 = 2nd cut Hieb 3 = smooth Suitable for/ v, m/s AIMg X <900N X <1400 N X <55 HRC X <60 HRC X Carbide IN0X <67 HRC Ti GG(G) CuZn Plastics Wood Stone Varnish &GRP Uni A A 517100-517600 File assortments with plastic handle, wooden handle 51 7100/7200/7300/7600-With impact resistant plastic handles. 51 7240- With hardwood file handle. Supplied with: 51 7100-7300 - 5-piece set of files with one each flat, 3-square, square, half-round and round file. 517600 - 6-piece set of files with one each flat file in bastard - 2nd cut - smooth in 200 mm and 300 mm length. I jtk, m fiat 3-square square half round round Length without tang mm 200 250 300 i 517100 Setofengineer'sfiles 5-piece in a wallet Cut 1 31.68 40.10 51.88 s 517200 Setofengineer'sfiles 5-piece in a wallet DICK Cut2 32.77 41.48 53.66 a 517240 Setofengineer'sfiles 5-piece in a wallet Cut 2, with wooden handle 32.77 41.58 - a 51 7300 Setofengineer'sfiles 5-piece in a wallet Cut 3 34.11 43.86 55.44 s 517600 umcv Flat files set HUlbJl Apiece in a roll-up wallet 46.23 260 51 7600
