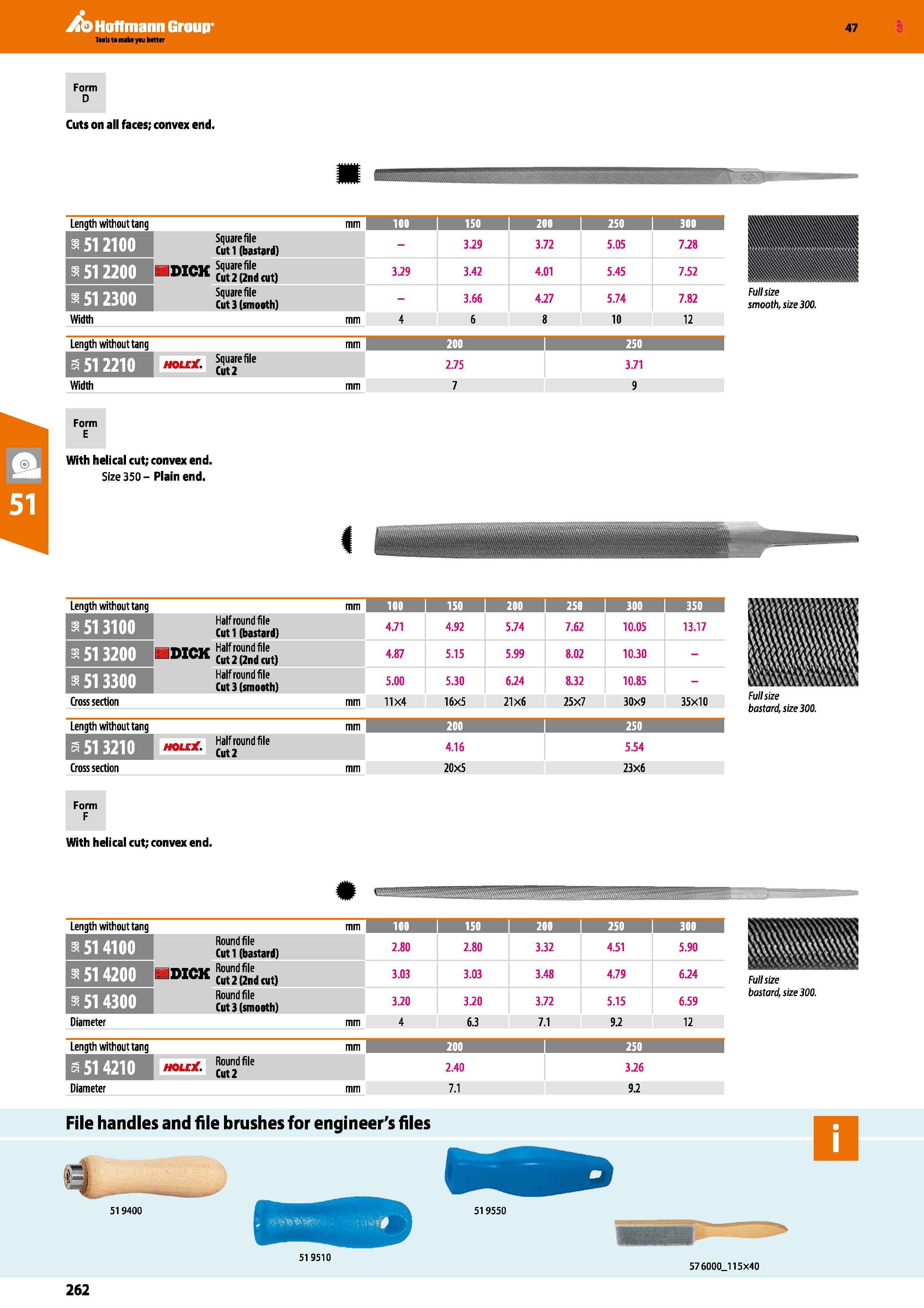

262 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.262

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 262 0262 ENG Lab2u

Hoffmann Group 47 Form D Cuts on all faces; convex end. Length without tang mm 100 I 150 200 I 250 300 S 512100 Square file Cut 1 (bastard) - 3.29 3.72 5.05 7.28 s 512200 Square file Cut 2 (2nd cut) 3.29 3.42 4.01 5.45 7.52 512300 Square file Cut 3 (smooth) - 3.66 4.27 5.74 7.82 Width mm 4 6 8 10 12 Length without tang mm 200 I 250 1 HOLCX. Square file Cut 2 2.75 3.71 Width mm 7 9 Fullsize smooth, size 300. Form E With helical cut; convex end. Size 350 - Plain end. Form F With helical cut; convex end. . . Length without tang 513100 513200 513300 BDICK Cross section mm 100 i 150 i 200 I 250 300 350 I Half round file Cut 1 (bastard) 4.71 4.92 5.74 7.62 10.05 13.17 Half round file Cut 2 (2nd cut) 4.87 5.15 5.99 8.02 10.30 - Half round file Cut 3 (smooth) 5.00 5.30 6.24 8.32 10.85 - mm 11x4 16x5 21x6 25x7 30x9 35X10 Fullsize bastard, size 300. Length without tang mm 200 I 250 a 513210 E3 Half round file Cut 2 4.16 5.54 Cross section mm 20X5 23X6 Length without tang mm 100 150 200 i 250 300 Cut 1 (bastard) 2.80 2.80 3.32 4.51 5.90 HnTMf Round file Cut 2 (2nd cut) 3.03 3.03 3.48 4.79 6.24 Cut 3 (smooth) 3.20 3.20 3.72 5.15 6.59 Diameter mm 4 6.3 7.1 9.2 12 Length without tang mm 200 I 250 1 1 uurf Round file smEW oux. Cut2 2.40 3.26 Diameter mm 7.1 9.2 Fullsize bastard, size 300. File handles and file brushes for engineer's files 519400 519510 519550 57 6000_115X40 262
