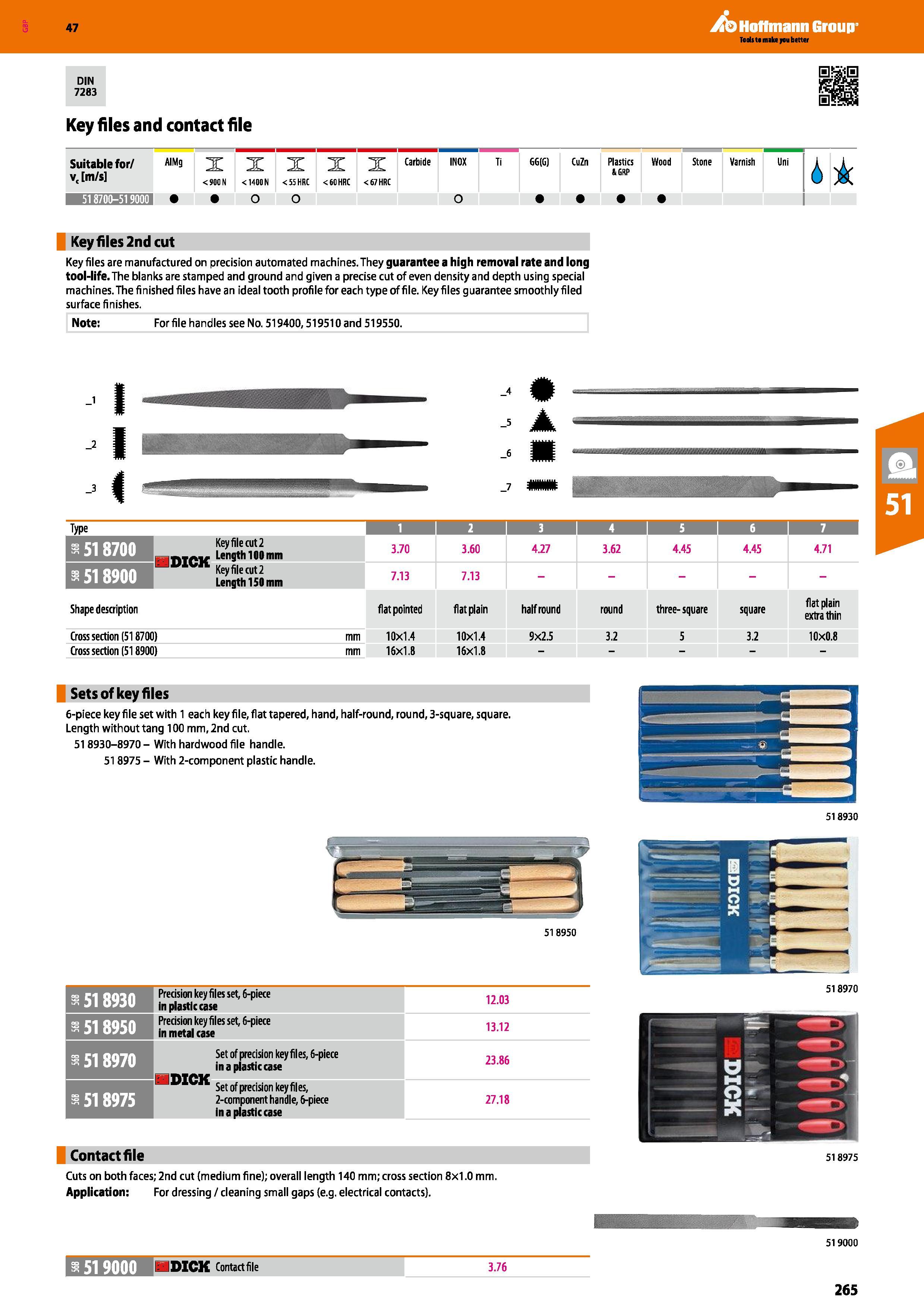

Hoffmann Group 47 DIN 7283 Key files and contact file Suitable for/ v, m/s AIMg X < 90C N X < 1400 N X <55 HRC X < 60 HRC Carbide IN0X <67 HRC Ti GG(G) CuZn Plastics Wood Stone Varnish l GRP Uni iic I 518700-519000 O Key files 2nd cut Key files are manufactured on precision automated machines. They guarantee a high removal rate and long tool-life. The blanks are stamped and ground and given a precise cut of even density and depth using special machines. The finished files have an ideal tooth profile for each type of file. Key files guarantee smoothly filed surface finishes. Note: For file handles see No. 519400,519510and 519550. - -5 Jk - Type I 2 I 3 I 4 5 I 6 7 Key file cut 2 Length 100 mm 3.70 3.60 4.27 3.62 4.45 4.45 4.71 DICK Keyfj ecut2 Length 150 mm 7.13 7.13 Shape description flat pointed flat plain half round round three-square square flat plain extra thin Cross section (518700) mm 10x1.4 10x1.4 9x2.5 3.2 5 3.2 10x0.8 Cross section (518900) mm 16x1.8 16x1.8 Sets of key files 6-piece key file set with 1 each key file, flat tapered, hand, half-round, round, 3-square, square. Length without tang 100 mm, 2nd cut. 51 8930-8970 - With hardwood file handle. 518975 - With 2-component plastic handle. Contact file 51 8950 eg 51 8930 Precision key files set, 6-piece in plastic case 12.03 eg 518950 Precision key files set, 6-piece in metal case 13.12 s 51 8970 Set of precision key files, 6-piece in a plastic case DICK 23.86 s 51 8975 Set of precision key files, 2-component handle, 6-piece in a plastic case 27.18 51 8930 Cuts on both faces; 2nd cut (medium fine); overall length 140 mm; cross section 8x1.0 mm. Application: For dressing / cleaning small gaps (e.g. electrical contacts). 518970 518975 DICK Contact file 3.76 519000 265
