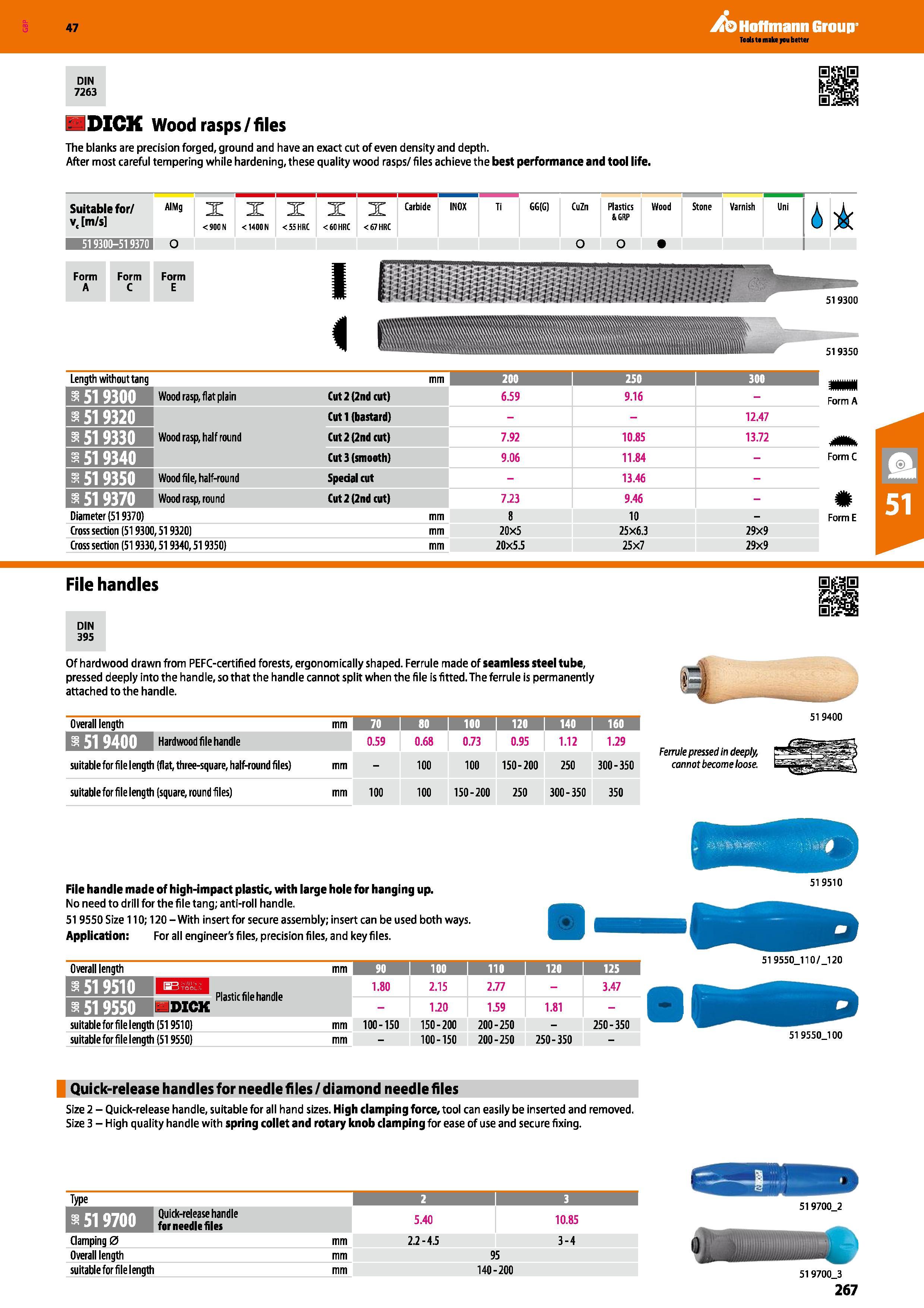

Hoffmann Group 47 DIN 7263 IDICK Wood rasps /files The blanks are precision forged, ground and have an exact cut of even density and depth. After most careful tempering while hardening, these quality wood rasps/ files achieve the best performance and tool life. Suitable for/ v, m/s AIMg X <900 N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics MRP Wood Stone Varnish Uni 519300-519370 O 1 Form Form Form A C E I Length without tang mm 200 250 300 i hifcHUUlIll Wood rasp, flat plain Cut 2 (2nd cut) 6.59 9.16 - a 51 9320 Cut 1 (bastard) 12.47 W°°d rasp, half round Cut 2 (2nd cut) 7.92 10.85 13.72 a 51 9340 Cut 3 (smooth) 9.06 11.84 - tHHl'EVU Wood file, half-rou nd Speaal cut - 13.46 - tiATl J- f 11B Wood rasp, rou nd Cut 2 (2nd cut) 7.23 9.46 - Diameter (519370) mm 8 10 - Cross section (519300,519320) mm 20x5 25x6.3 29x9 Cross section (519330,519340,519350) mm 20x5.5 25x7 29x9 519300 519350 Form A Form C Form E File handles DIN 395 Of hardwood drawn from PEFC-certified forests, ergonomically shaped. Ferrule made of seamless steel tube, pressed deeply into the handle, so that the handle cannot split when the file is fitted. The ferrule is permanently attached to the handle. Overall length mm 70 80 j 100 1 120 I 140 160 I Hardwood file handle 0.59 0.68 0.73 0.95 1.12 1.29 suitable for file length (flat, three-square, half-round files) mm - 100 100 150-200 250 300-350 suitable for file length (square, round files) mm 100 100 150-200 250 300 - 350 350 File handle made of high-impact plastic, with large hole for hanging up. No need to drill for the file tang; anti-roll handle. 519550 Size 110; 120 - With insert for secure assembly; insert can be used both ways. Application: For all engineer's files, precision files, and key files. Ferrule pressed in deeply, cannot become loose 519400 519510 Overall length mm 90 100 110 120 I 125 WLlllLIB 1.80 2.15 2.77 - 3.47 ,-K-, nasiicnienanaie EHI-W DICK - 1.20 1.59 1.81 - suitable for file length (519510) mm 100-150 150-200 200-250 - 250 - 350 suitable for file length (519550) mm - 100-150 200-250 250-350 - 51 9550_110/_120 51 9550J00 Quick-release handles for needle files / diamond needle files Size 2 - Quick-release handle, suitable for all hand sizes. High clamping force, tool can easily be inserted and removed. Size 3 - High quality handle with spring collet and rotary knob clamping for ease of use and secure fixing. Type Quick-release handle bfcUxillJfl for needle files 5.40 10.85 Clamping 0 mm 2.2-4 J 3-4 Overall length mm 95 suitable for file length mm 140-200 519700_2 519700_3 267
