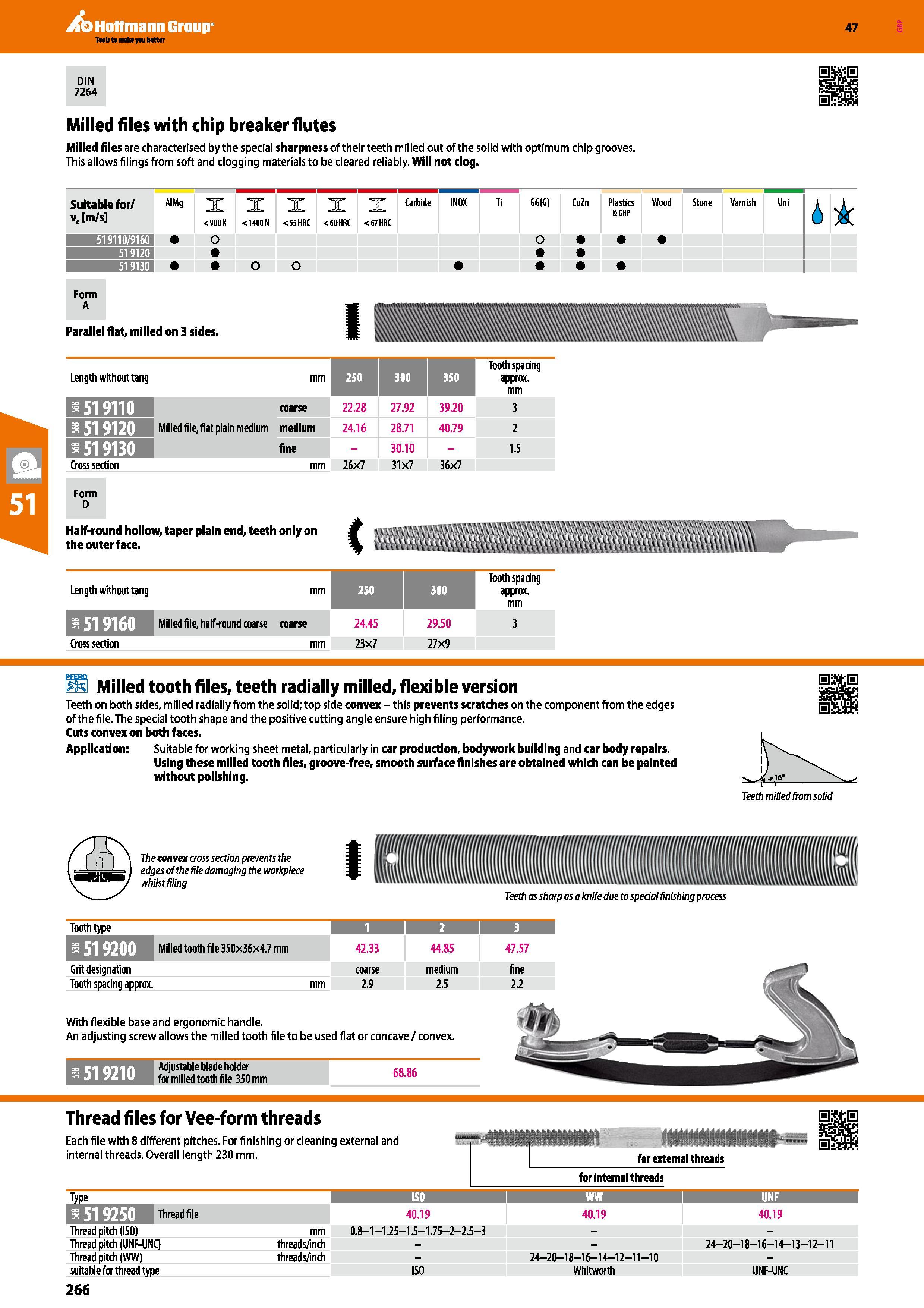

Hoffmann Group 47 DIN 7264 Milled files with chip breaker flutes Milled files are characterised by the special sharpness of their teeth milled out of the solid with optimum chip grooves. This allows filings from soft and clogging materials to be cleared reliably. Will not clog. Suitable for/ v, m/s AIMg X <900N X <1400 N X <55 HRC X <60 HRC Carbide <67 HRC IN0X Ti GG(G) CuZn Plastics SGRP Wood Stone Varnish Uni I 519110/9160 o O 519120 519130 Form A Parallel flat, milled on 3 sides. Length without tang mm 250 300 350 Tooth spacing approx. mm s 519110 coarse 22.28 27.92 39.20 3 s 519120 Milled file, flat plain medium medium 24.16 28.71 40.79 2 s 519130 fine - 30.10 - 1.5 Cross section mm 26x7 31x7 36x7 Form D Half-round hollow, taper plain end, teeth only on the outer face. MB Length without tang mm 250 300 Tooth spacing approx. mm i 519160 Milled file, half-round coarse coarse 24.45 29.50 3 Cross section mm 23X7 27x9 llsi Milled tooth files, teeth radially milled, flexible version Teeth on both sides, milled radially from the solid; top side convex - this prevents scratches on the component from the edges of the file. The special tooth shape and the positive cutting angle ensure high filing performance. Cuts convex on both faces. Application: Suitable for working sheet metal, particularly in car production, bodywork building and car body repairs. Using these milled tooth files, groove-free, smooth surface finishes are obtained which can be painted without polishing. 03ft s E Teeth milled from solid The convex cross section prevents the edges of the file damaging the workpiece whilst filing Teeth as sharp as a knife due to special finishing process Tooth type 1 1 2 - 519200 Milled tooth file 350x36x4.7 mm 42.33 44.85 Grit designation coarse medium Tooth spacing approx. mm 2.9 2.5 With flexible base and ergonomic handle. An adjusting screw allows the milled tooth file to be used flat or concave / convex. I 519210 Adjustable blade holder for milled tooth file 350 mm 68.86 Thread files for Vee-form threads Each file with 8 different pitches. For finishing or cleaning external and internal threads. Overall length 230 mm. for external threads im Type ISO I WW I UNF 1 1 51 9250 40.19 40.19 40.19 Thread pitch (ISO) mm 0.8-1-1.25-1 J-1.75-2-2.5-3 Thread pitch (UNF-UNC) threads/inch 24-20-18-16-14-13-12-11 Thread pitch (WW) threads/inch - 24-20-18-16-14-12-11-10 - suitable for thread type ISO Whitworth UNF-UNC 266
