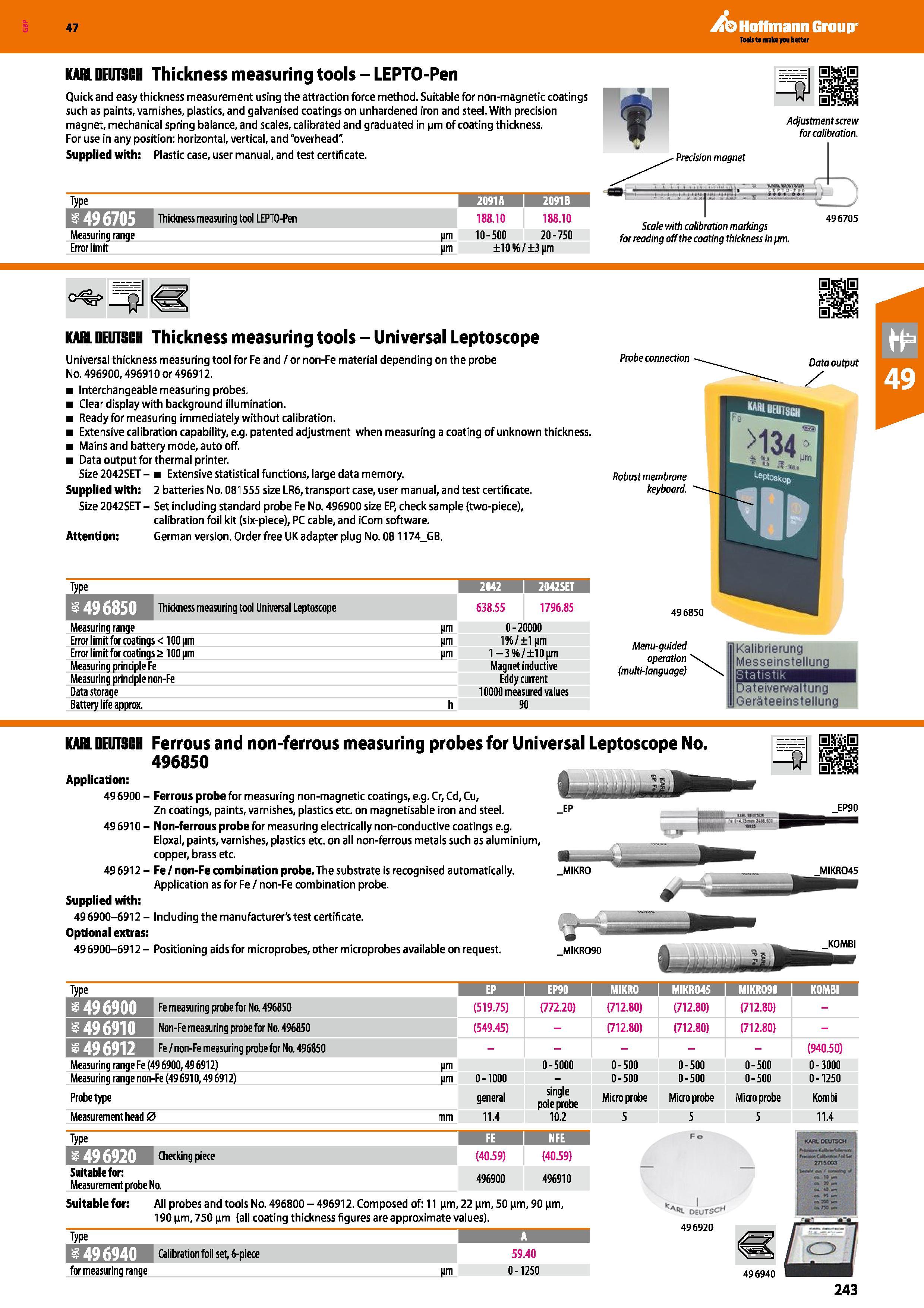

Hoffmann Group 47 KARL DEUTSGH Thickness measuring tools - LEPTO-Pen Quick and easy thickness measurement using the attraction force method. Suitable for non-magnetic coatings such as paints, varnishes, plastics, and galvanised coatings on unhardened iron and steel. With precision magnet, mechanical spring balance, and scales, calibrated and graduated in pm of coating thickness. For use in any position: horizontal, vertical, and "overhead". Supplied with: Plastic case, user manual, and test certificate. Type 2091A 2091B j I fcTiV/lVB Thickness measuring tool LEPTO-Pen 188.10 188.10 Error limit im im ±10%/±3 im KARL DEUTSGH Thickness measuring tools - Universal Leptoscope Universal thickness measuring tool for Fe and / or non-Fe material depending on the probe No. 496900,496910 or 496912. Interchangeable measuring probes. Clear display with background illumination. Ready for measuring immediately without calibration. Extensive calibration capability, e.g. patented adjustment when measuring a coating of unknown thickness. Mains and battery mode, auto off. Data output for thermal printer. Size 2042SET - Extensive statistical functions, large data memory. Supplied with: 2 batteries No. 081555 size LR6, transport case, user manual, and test certificate. Size 2042SET - Set including standard probe Fe No. 496900 size EP, check sample (two-piece), calibration foil kit (six-piece), PC cable, and iCom software. Attention: German version. Order free UK adapter plug No. 081174_GB. Probe connection Robust membrane keyboard. Type 1 2042 2042SET f Thickness measuring tool Universal Leptoscope 638.55 1796.85 Measuring range pm 0-20000 Error limit for coatings < 100 pm pm 1%/±1 im Error limit for coatings 5100 pm pm 1 3 %/±10 im Measuring principle Fe Magnet inductive Measuring principle non-Fe Eddy current Datastorage 10000 measured values Battery life approx. h 90 496850 Menu-guided operation' (multi-language) Kalibrierung Messeinstellung Btatistik Dateiverwaltung Gerateeinstellung KARL DEUTSGH Application: 496900- Ferrous and non-ferrous measuring probes for Universal Leptoscope No. 496850 Ferrous probe for measuring non-magnetic coatings, e.g. Cr, Cd, Cu, Zn coatings, paints, varnishes, plastics etc. on magnetisable iron and steel. 49 6910 - Non-ferrous probe for measuring electrically non-conductive coatings e.g. Eloxal, paints, varnishes, plastics etc. on all non-ferrous metals such as aluminium, copper, brass etc. 49 6912 - Fe / non-Fe combination probe. The substrate is recognised automatically. Application as for Fe / non-Fe combination probe. Supplied with: 496900-6912-Optional extras: 496900-6912- Induding the manufacturer's test certificate. Positioning aids for microprobes, other microprobes available on request. Type 1 EP EP90 MIKR045 I MIKR090 K0MBI ZH.-VHM Fe measuring probe for No. 496850 (519.75) (772.20) (712.80) (712.80) (712.80) - I. ITrVl IB Non-Fe measuring probe for No. 496850 (549.45) - (712.80) (712.80) (712.80) - W. HiU rB Fe / non-Fe measuring probe for No. 496850 (940.50) Measuring range Fe (49 6900,49 6912) pm 0-5000 0-500 0-500 0-500 0-3000 Measuring range non-Fe (49 6910,49 6912) pm 0-1000 - 0-500 0-500 0-500 0-1250 Probe type general single pole probe Micro probe Micro probe Micro probe Kombi Measurement head 0 mm 11.4 10.2 5 5 5 11.4 Type 1 NFE Fe W'UIiVyjll Checkina Diece (40.59) (40.59) Suitable for: Measurement probe No. 496900 496910 Suitable for: All probes and tools No. 496800 - 496912. Composed of: 11 (jm, 22 pm, 50 Jim, 90 Jim, 01. deutscH KAHLDCUT5CH = 5= 496940 Calibration foil set, 6-piece 59.40 496920 mf for measuring range pm 0-1250 496940 H -U.
