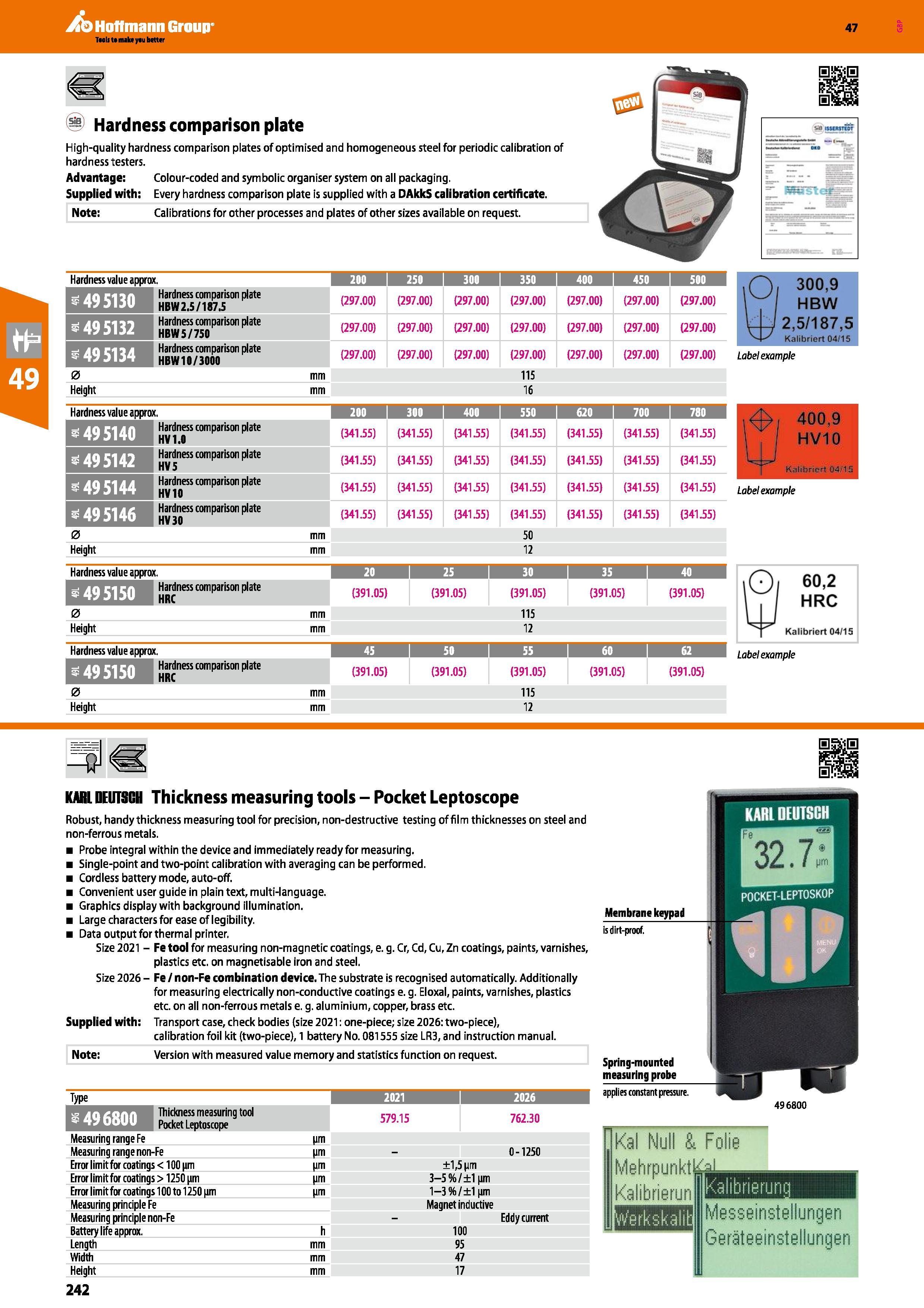

Hoffmann Group 47 Hardness value approx. 1 200 250 wi 350 i 400 i 450 i 500 49 5130 Hardness comparison plate HBW 2,5/117,5 (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) £495132 Hardness comparison plate HBW5/750 (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) 49 5134 Hardness comparison plate HBW10/3000 (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) (297.00) 0 mm 115 Height mm 16 Hardness value approx. 200 IHil 400 i 550 620 700 780 < 495140 Hardness comparison plate HV1.0 (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) £495142 Hardness comparison plate HV5 (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) 495144 Hardness comparison plate HV10 (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) £495146 Hardness comparison plate HV30 (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) (341.55) 0 mm 50 Height mm 12 Hardness value approx. I 25 I 30 1 35 j 40 Hardness comparison plate (391.05) (391.05) (391.05) (391.05) (391.05) 0 mm 115 Height mm 12 Hardness value approx. 45 I 50 I 55 I 60 62 Hardness comparison plate HuAlCllfl HRC (391.05) (391.05) (391.05) (391.05) (391.05) 0 mm 115 300,9 HBW 2,5/187,5 Kalibriert 04/15 Label example Label example 60,2 HRC Kalibriert 04/15 Label example Height 12 KARL DElfTSGH Thickness measuring tools - Pocket Leptoscope Robust, handy thickness measuring tool for precision, non-destructive testing of film thicknesses on steel and non-ferrous metals. Probe integral within the device and immediately ready for measuring. Single-point and two-point calibration with averaging can be performed. Cordless battery mode, auto-off. Convenient user guide in plain text, multi-language. Graphics display with background illumination. Large characters for ease of legibility. Data output for thermal printer. Size 2021 - Fe tool for measuring non-magnetic coatings, e. g. Cr, Cd, Cu, Zn coatings, paints, varnishes, plastics etc. on magnetisable iron and steel. Size 2026 - Fe / non-Fe combination device. The substrate is recognised automatically. Additionally for measuring electrically non-conductive coatings e. g. Eloxal, paints, varnishes, plastics etc. on all non-ferrous metals e. g. aluminium, copper, brass etc. Supplied with: Transport case, check bodies (size 2021: one-piece; size 2026: two-piece), calibration foil kit (two-piece), 1 battery No. 081555 size LR3, and instruction manual. Note: Version with measured value memory and statistics function on request. Type 2021 I 2026 Thickness measuring tool Pocket Leptoscope 579.15 762.30 Measuring range Fe im Measuring range non-Fe im - 0-1250 Error limit for coatings < 100 im im ±1,5 nm Error limit for coatings > 1250 im im 3 5 % / ±1 (im Error limit for coatings 100 to 1250 urn im 1 3%/±1 nm Measuring principle Fe Magnet inductive Measuring principle non-Fe _ Eddy current Battery life apprcxx. h 100 Length mm 95 Width mm 47 Height mm 17 Membrane keypad is dirt-proof. Spring-mounted measuring probe applies constant pressure. P0CKET-LEPT0SK0P iV 496800 Kal Null & Mehrpunktt Folie fal Kalibrierun Haul Messeinstellungen Gerateeinstellungen 242 Hardness comparison plate High-quality hardness comparison plates of optimised and homogeneous steel for periodic calibration of hardness testers. Advantage: Colour-coded and symbolic organiser system on all packaging. Supplied with: Every hardness comparison plate is supplied with a DAkkS calibration certificate. Note: Calibrations for other processes and plates of other sizes available on request.
