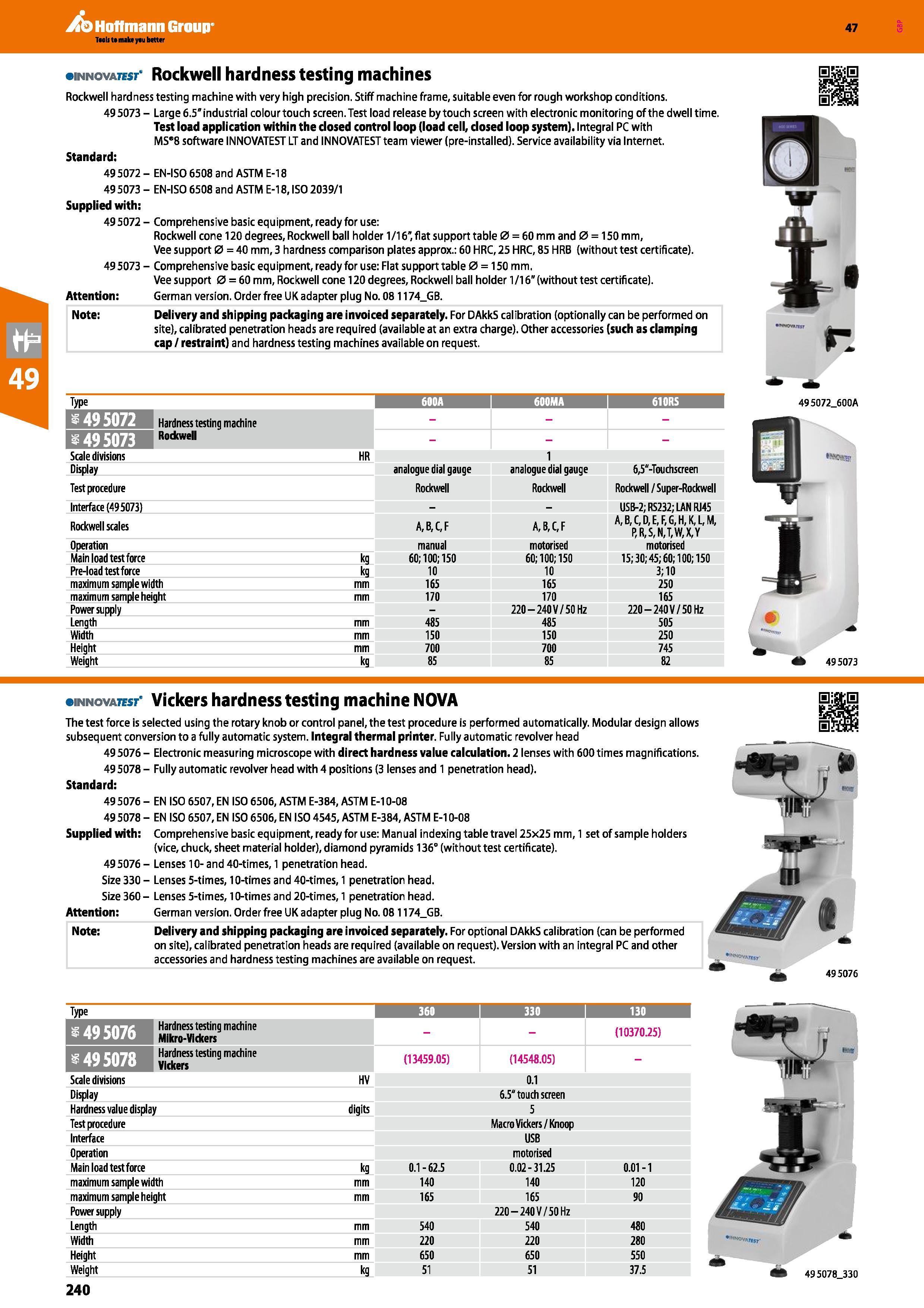

240 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.240

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 240 0240 ENG Lab2u

Hoffmann Group 47 innovator Rockwell hardness testing machines Rockwell hardness testing machine with very high precision. Stiff machine frame, suitable even for rough workshop conditions. 495073 - Large 6.5” industrial colour touch screen. Test load release by touch screen with electronic monitoring of the dwell time. Test load application within the closed control loop (load cell, closed loop system). Integral PC with MS 8 software INNOVATEST LT and INNOVATEST team viewer (pre-installed). Service availability via Internet. Standard: 495072 - EN-ISO 6508 and ASTM E-18 495073 - EN-ISO 6508 and ASTM E-18, ISO 2039/1 Supplied with: 495072 - Comprehensive basic equipment, ready for use: Rockwell cone 120 degrees, Rockwell ball holder 1/16”, flat support table 0 = 60 mm and 0 = 150 mm, Vee support 0 = 40 mm, 3 hardness comparison plates approx.: 60 HRC, 25 HRC, 85 HRB (without test certificate). 495073 - Comprehensive basic equipment, ready for use: Flat support table 0 = 150 mm. Vee support 0 = 60 mm, Rockwell cone 120 degrees, Rockwell ball holder 1/16”(without test certificate). Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Delivery and shipping packaging are invoiced separately. For DAkkS calibration (optionally can be performed on site), calibrated penetration heads are required (available at an extra charge). Other accessories (such as clamping cap/restraint) and hardness testing machines available on request. n Type 1 600A i 600MA 610RS i Hardness testing machine 1 495073 Scale divisions HR 1 Display analogue dial gauge analogue dial gauge 6,5"-Touchscreen Test procedure Rockwell Rockwell Rockwell / Super-Rockwell Interface (495073) USB-2; RS232; LAN RJ45 Rockwell scales A,B,C,F A, B,C,F A,B,C,D,E, F,G,H, K, L,M, P,R,S,N,T,W,X,Y Operation manual motorised motorised Main load test force kg 60; 100; 150 60; 100; 150 15; 30; 45; 60; 100; 150 Pre-load test force kg 10 10 3; 10 maximum sample width mm 165 165 250 maximum sample height mm 170 170 165 Power supply - 220 - 240 V/50 Hz 220 - 240 V/50 Hz Length mm 485 485 505 Width mm 150 150 250 Height mm 700 700 745 Weight kg 85 85 82 495072_600A Mom 495073 iNNovAresr Vickers hardness testing machine NOVA The test force is selected using the rotary knob or control panel, the test procedure is performed automatically. Modular design allows subsequent conversion to a fully automatic system. Integral thermal printer. Fully automatic revolver head 49 5076 - Electronic measuring microscope with direct hardness value calculation. 2 lenses with 600 times magnifications. 49 5078 - Fully automatic revolver head with 4 positions (3 lenses and 1 penetration head). Standard: 495076 - EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08 49 5078 - EN ISO 6507, EN ISO 6506, EN ISO 4545, ASTM E-384, ASTM E-10-08 Supplied with: Comprehensive basic equipment, ready for use: Manual indexing table travel 25x25 mm, 1 set of sample holders (vice, chuck, sheet material holder), diamond pyramids 136° (without test certificate). 495076 - Lenses 10- and 40-times, 1 penetration head. Size 330 - Lenses 5-times, 10-times and 40-times, 1 penetration head. Size 360 - Lenses 5-times, 10-times and 20-times, 1 penetration head. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Delivery and shipping packaging are invoiced separately. For optional DAkkS calibration (can be performed on site , calibrated penetration heads are required (available on request). Version with an integral PC and other accessories and hardness testing machines are available on request. 495076 Type 360 i 330 130 MfVRfl Hardness testing machine Mikro-Vickers (10370.25) Hardness testing machine Vickers (13459.05) (14548.05) - Scale divisions HV 0.1 Display 6.5" touch screen Hardness value display digits 5 Test procedure Macro Vickers/Knoop Interface USB Operation motorised Main load test force kg 0.1-62.5 0.02-31.25 0.01-1 maximum sample width mm 140 140 120 maximum sample height mm 165 165 90 Power supply 220 - 240 V/50 Hz Length mm 540 540 480 Width mm 220 220 280 Height mm 650 650 550 Weight kg 51 51 37.5 240
