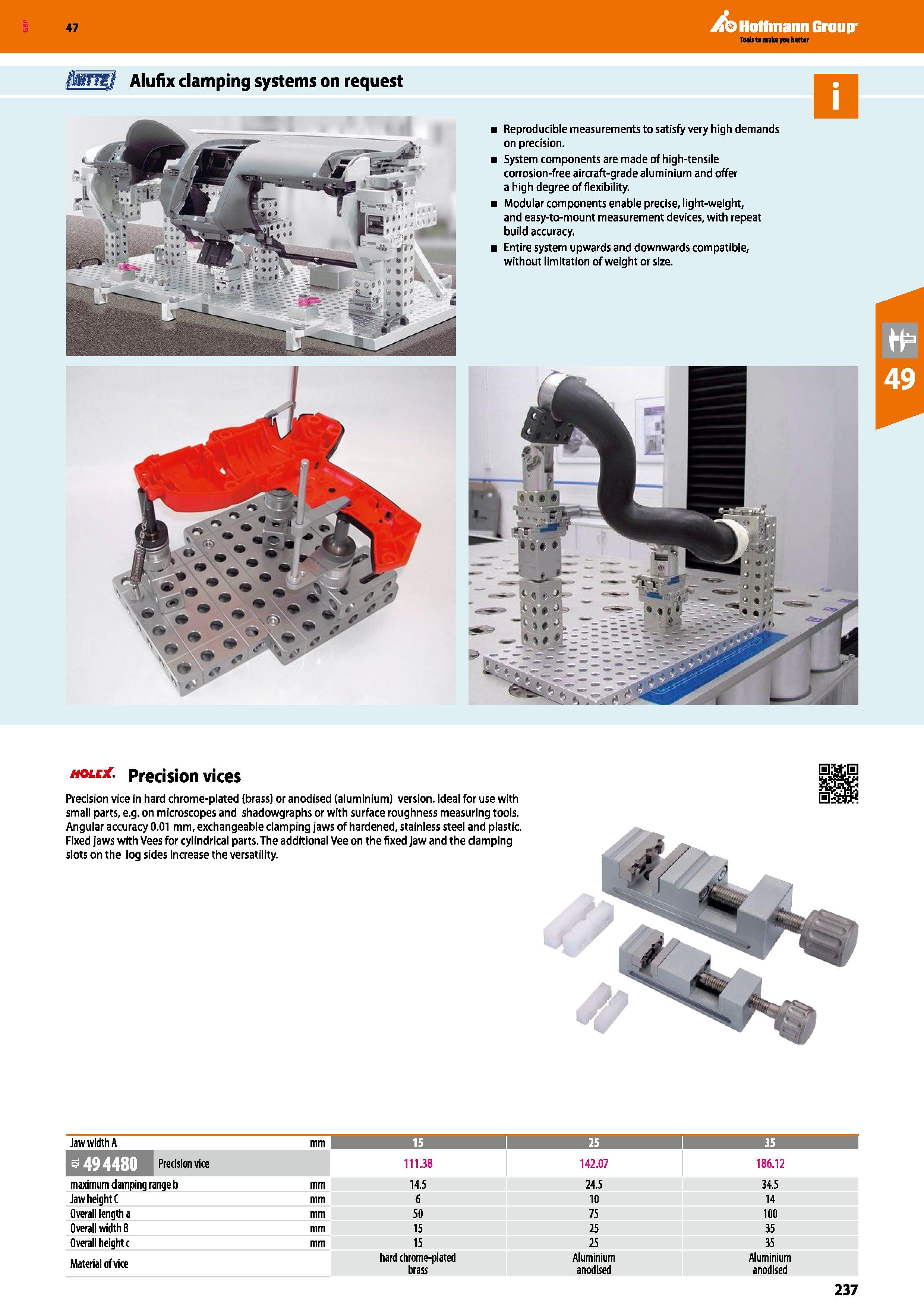

Hoffmann Group 47 Alufix clamping systems on request Reproducible measurements to satisfy very high demands on precision. System components are made of high-tensile corrosion-free aircraft-grade aluminium and offer a high degree of flexibility. Modular components enable precise, light-weight, and easy-to-mount measurement devices, with repeat build accuracy. Entire system upwards and downwards compatible, without limitation of weight or size. hole . Precision vices Precision vice in hard chrome-plated (brass) or anodised (aluminium) version. Ideal for use with small parts, e.g. on microscopes and shadowgraphs or with surface roughness measuring tools. Angular accuracy 0.01 mm, exchangeable clamping jaws of hardened, stainless steel and plastic. Fixed jaws with Vees for cylindrical parts. The additional Vee on the fixed jaw and the clamping slots on the log sides increase the versatility. jaw width A mm 15 1 25 1 35 49 4480 111.38 142.07 186.12 maximum damping range b mm 14.5 24.5 34.5 Jaw height C mm 6 10 14 Overall length a mm 50 75 100 Overall width B mm 15 25 35 Overall height c mm 15 25 35 Material of vice hard chrome-plated brass Aluminium anodised Aluminium anodised 237
