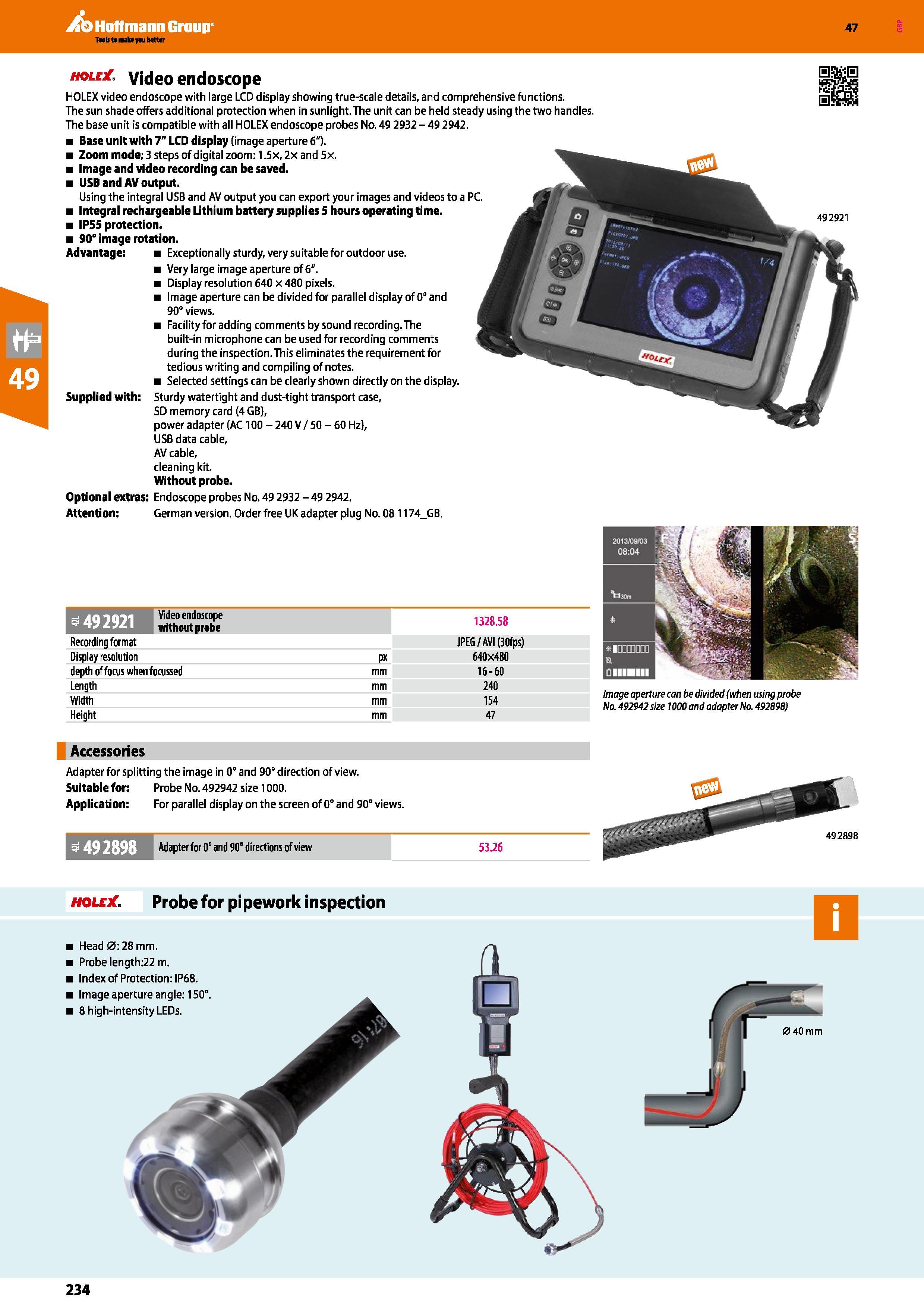

Hoffmann Group 47 hole . Video endoscope HOLEX video endoscope with large LCD display showing true-scale details, and comprehensive functions. The sun shade offers additional protection when in sunlight. The unit can be held steady using the two handles. The base unit is compatible with all HOLEX endoscope probes No. 49 2932 - 49 2942. Base unit with 7" LCD display (image aperture 6"). Zoom mode; 3 steps of digital zoom: 1.5x, 2xand 5x. Image and video recording can be saved. USB and AV output. Using the integral USB and AV output you can export your images and videos to a Integral rechargeable Lithium battery supplies 5 hours operating time. IP55 protection. 90° image rotation. Advantage: Exceptionally sturdy, very suitable for outdoor use. Very large image aperture of 6". Display resolution 640 x 480 pixels. Image aperture can be divided for parallel display of 0° and 90° views. Facility for adding comments by sound recording. The built-in microphone can be used for recording comments during the inspection. This eliminates the requirement for tedious writing and compiling of notes. Selected settings can be clearly shown directly on the display. Supplied with: Sturdy watertight and dust-tight transport case, SD memory card (4 GB), power adapter (AC 100 - 240 V / 50 - 60 Hz), USB data cable, AV cable, cleaning kit. Without probe. Optional extras: Endoscope probes No. 49 2932 - 49 2942. Attention: German version. Order free UK adapter plug No. 081174_GB. Video endoscope without probe 1328.58 Recording format JPEG/AVI (30fps) Display resolution px 640x480 depth of focus when focussed mm 16-60 Length mm 240 Width mm 154 Height mm 47 1 Accessories Adapter for splitting the image in 0° and 90° direction of view. Suitable for: Probe No. 492942 size 1000. Application: For parallel display on the screen of 0° and 90° views. 492898 Adapter for 0° and 90° di rections of view 53.26 holejC. Probe for pipework inspection Head 0:28 mm. Probe length:22 m. Index of Protection: IP68. Image aperture angle: 150°. 8 high-intensity LEDs. Image aperture can be divided (when using probe No. 492942size WOO and adapter No. 492898) 492898 234
