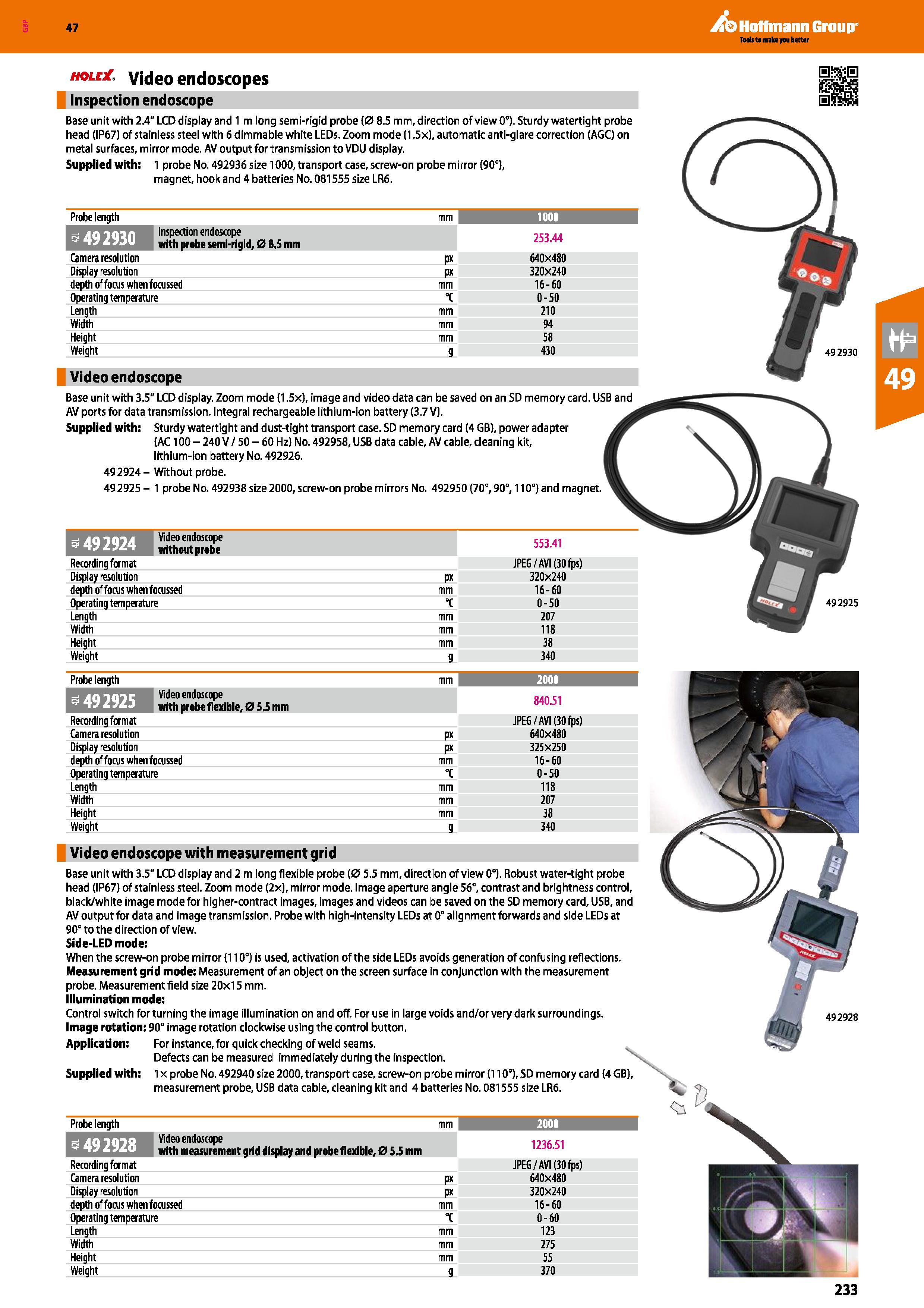

Hoffmann Group 47 hole . Video endoscopes Inspection endoscope Base unit with 2.4" LCD display and 1 m long semi-rigid probe (0 8.5 mm, direction of view 0°). Sturdy watertight probe head (IP67) of stainless steel with 6 dimmable white LEDs. Zoom mode (1,5x), automatic anti-glare correction (AGC) on metal surfaces, mirror mode. AV output for transmission to VDU display. Supplied with: 1 probe No. 492936 size 1000, transport case, screw-on probe mirror (90°), magnet, hook and 4 batteries No. 081555 size LR6. Probe length mm 1000 i PBTCTffll Inspection endoscope with probe semi-rigid, 0 8.5 mm 253.44 Camera resolution px 640x480 Display resolution PX 320X240 depth of focus when focussed mm 16-60 Operating temperature °C 0-50 Length mm 210 Width mm 94 Height mm 58 Weight g 430 Video endoscope 492930 Video endoscope HUXttU without probe 553.41 Recording format JPEG/AVI (30fps) Display resolution p 320x240 depth of focus when focussed mm 16-60 Operating temperature °C 0-50 Length mm 207 Width mm 118 Height mm 38 Weight g 340 492925 Base unit with 3.5" LCD display. Zoom mode (1.5x), image and video data can be saved on an SD memory card. USB and AV ports for data transmission. Integral rechargeable lithium-ion battery (3.7 V). Supplied with: Sturdy watertight and dust-tight transport case. SD memory card (4 GB), power adapter (AC 100 - 240 V / 50 - 60 Hz) No. 492958, USB data cable, AV cable, cleaning kit, lithium-ion battery No. 492926. 492924 - Without probe. 49 2925 - 1 probe No. 492938 size 2000, screw-on probe mirrors No. 492950 (70°, 90°, 110°) and magnet. Probe length mm 2000 1 UPTCTW Video endoscope with probe flexible, 0 5.5 mm 840.51 Recording format JPEG/AVI (30fps) Camera resolution p 640X480 Display resolution P 325x250 depth of focus when focussed mm 16-60 Operating temperature °C 0-50 Length mm 118 Width mm 207 Height mm 38 Weight g 340 Base unit with 3.5" LCD display and 2 m long flexible probe (0 5.5 mm, direction of view 0°). Robust water-tight probe head (IP67) of stainless steel. Zoom mode (2x), mirror mode. Image aperture angle 56°, contrast and brightness control, black/white image mode for higher-contract images, images and videos can be saved on the SD memory card, USB, and AV output for data and image transmission. Probe with high-intensity LEDs at 0° alignment forwards and side LEDs at 90° to the direction of view. Side-LED mode: When the screw-on probe mirror (110°) is used, activation of the side LEDs avoids generation of confusing reflections. Measurement grid mode: Measurement of an object on the screen surface in conjunction with the measurement probe. Measurement field size 20x15 mm. Illumination mode: Control switch for turning the image illumination on and off. For use in large voids and/or very dark surroundings. Image rotation: 90° image rotation clockwise using the control button. Application: For instance, for quick checking of weld seams. Defects can be measured immediately during the inspection. Supplied with: 1 x probe No. 492940 size 2000, transport case, screw-on probe mirror (110°), SD memory card (4 GB), measurement probe, USB data cable, cleaning kit and 4 batteries No. 081555 size LR6. Probe length mm 2000 I Video endoscope with measurement grid display and probe flexible, 0 5.5 mm 1236.51 Recording format JPEG/AVI (30fps) Camera resolution P 640x480 Display resolution P 320x240 depth of focus when focussed mm 16-60 Operating temperature °C 0-60 Length mm 123 Width mm 275 Height mm 55 Weight g 370 492928
