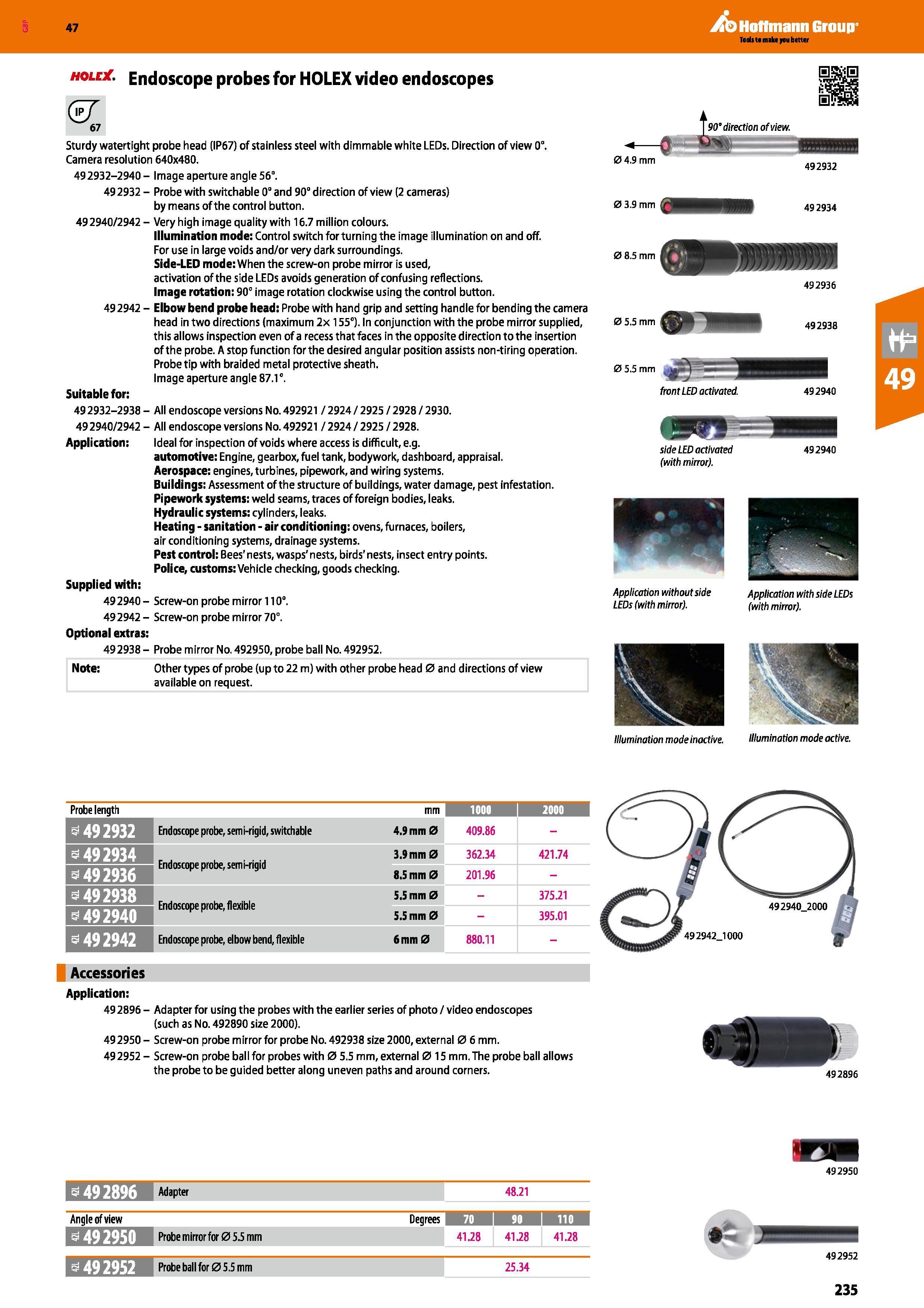

47 hole . Endoscope probes for HOLEX video endoscopes ar 67 Sturdy watertight probe head (IP67) of stainless steel with dimmable white LEDs. Direction of view 0°. Camera resolution 640x480. 492932-2940 - Image aperture angle 56°. 492932 - Probe with switchable 0°and 90°direction of view (2 cameras) by means of the control button. 492940/2942 - Very high image quality with 16.7 million colours. Illumination mode: Control switch for turning the image illumination on and off. For use in large voids and/or very dark surroundings. Side-LED mode: When the screw-on probe mirror is used, activation of the side LEDs avoids generation of confusing reflections. Image rotation: 90° image rotation clockwise using the control button. 49 2942 - Elbow bend probe head: Probe with hand grip and setting handle for bending the camera head in two directions (maximum 2x 155°). In conjunction with the probe mirror supplied, this allows inspection even of a recess that faces in the opposite direction to the insertion of the probe. A stop function for the desired angular position assists non-tiring operation. Probe tip with braided metal protective sheath. Image aperture angle 87.1 °. Suitable for: 49 2932-2938 - All endoscope versions No. 492921 / 2924 / 2925 / 2928 / 2930. 492940/2942- All endoscope versions No. 492921 / 2924/2925/2928. Application: Ideal for inspection of voids where access is difficult, e.g. automotive: Engine, gearbox, fuel tank, bodywork, dashboard, appraisal. Aerospace: engines, turbines, pipework, and wiring systems. Buildings: Assessment of the structure of buildings, water damage, pest infestation. Pipework systems: weld seams, traces of foreign bodies, leaks. Hydraulic systems: cylinders, leaks. Heating - sanitation - air conditioning: ovens, furnaces, boilers, air conditioning systems, drainage systems. Pest control: Bees' nests, wasps' nests, birds’ nests, insect entry points. Police, customs: Vehicle checking, goods checking. Supplied with: 492940- Screw-on probe mirror 110°. 492942 - Screw-on probe mirror 70°. Optional extras: 49 2938 - Probe mirror No. 492950, probe ball No. 492952. Note: Other types of probe (up to 22 m) with other probe head 0 and directions of view available on request. Hoffmann Group 0 4.9 mm 0 3.9 mm 0 8.5 mm 0 5.5 mm 0 5.5 mm 492932 49 2934 front LED activated. side LED activated (with mirror). 492936 492938 492940 492940 Application without side LEDs (with mirror). Application with side LEDs (with mirror). Probe length mm 1000 i 2000 I Endoscope probe, semi-rigid, switchable 4.9 mm 0 409.86 - 49 2934 Endoscope probe, semi-rigid 3.9 mm 0 362.34 421.74 492936 8.5 mm 0 201.96 - 492938 Endoscope probe, flexible 5.5 mm 0 - 375.21 -492940 5.5 mm 0 - 395.01 492942 Endoscope probe, elbow bend, flexible 6mm 0 880.11 - Accessories Application: 49 2896 - Adapter for using the probes with the earlier series of photo / video endoscopes (such as No. 492890 size 2000). 49 2950 - Screw-on probe mirror for probe No. 492938 size 2000, external 0 6 mm. 492952 - Screw-on probe ball for probes with 0 5.5 mm, external 0 15 mm. The probe ball allows the probe to be guided better along uneven paths and around corners. 492896 Adapter 48.21 Angle of view Degrees I 70 I 90 I 110 492950 Probe mirror for 05.5 mm 41.28 41.28 41.28 492952 Probe ball for 05.5 mm 25.34 Illumination mode inactive. Illumination mode active. 492952 235
