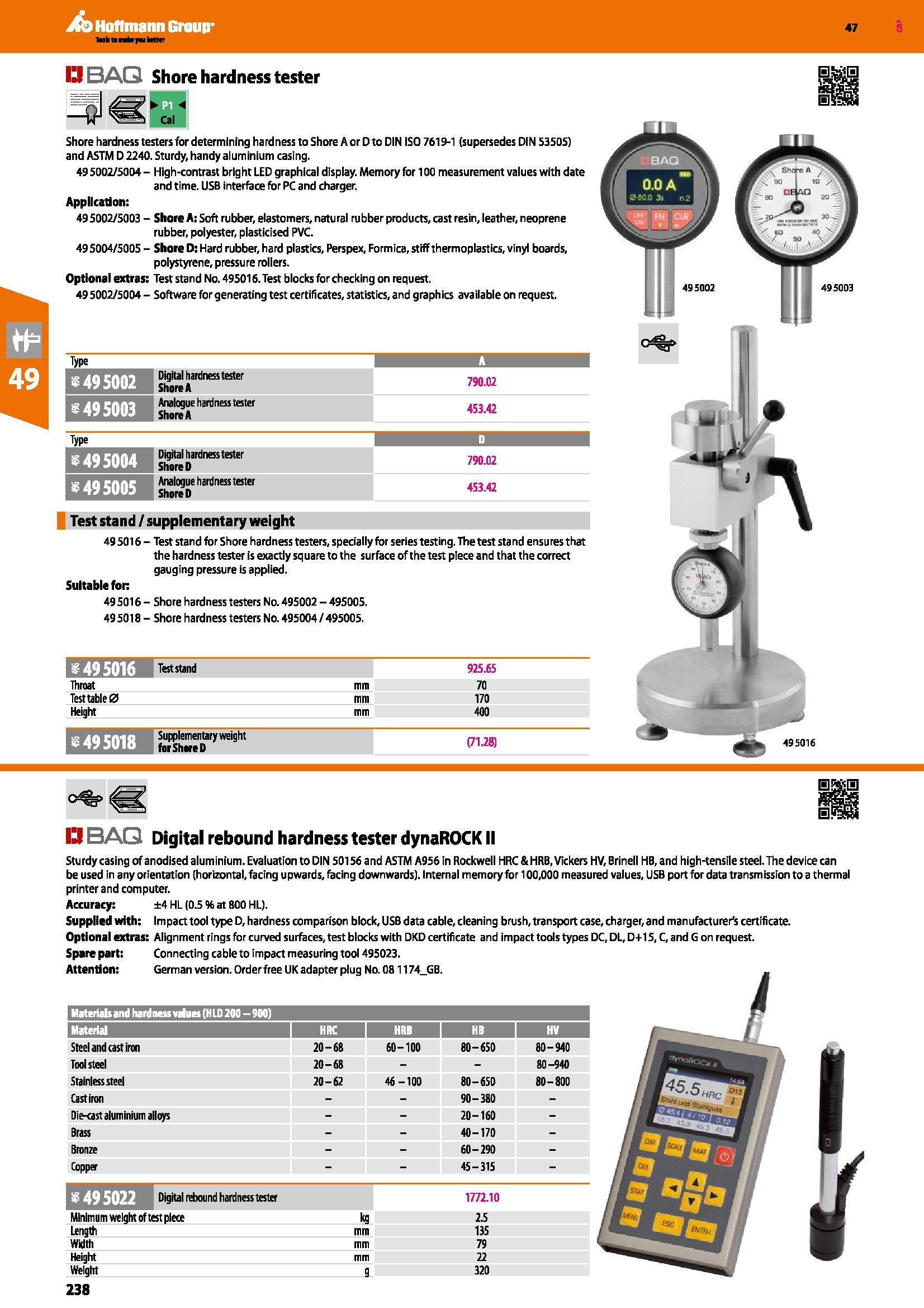

13 BAQ Shore hardness tester Cal Shore hardness testers for determining hardness to Shore A or D to DIN ISO 7619-1 (supersedes DIN 53505) and ASTM D 2240. Sturdy, handy aluminium casing. 495002/5004 - High-contrast bright LED graphical display. Memory for 100 measurement values with date and time. USB interface for PC and charger. Application: 495002/5003 - Shore A; Soft rubber, elastomers, natural rubber products, cast resin, leather, neoprene rubber, polyester, plasticised PVC. 495004/5005 - Shore D: Hard rubber, hard plastics. Perspex, Formica, stiff thermoplastics, vinyl boards, polystyrene, pressure rollers. Optional extras: Test stand No. 495016. Test blocks for checking on request. 49 5002/5004 - Software for generating test certificates, statistics, and graphics available on request. £495002 Digital hardness tester Shore A 790.02 495003 Analogue hardness tester Shore A 453.42 Type 1 D 495004 Digital hardness tester Shore D 790.02 495005 Analogue hardness tester Shore D 453.42 Test stand / supplementary weight 49 5016 - Test stand for Shore hardness testers, specially for series testing. The test stand ensures that the hardness tester is exactly square to the surface of the test piece and that the correct gauging pressure is applied. Suitable for: 495016 - Shore hardness testers No. 495002 - 495005. 495018 - Shore hardness testers No. 495004 / 495005. £495016 E33B 925.65 Throat mm 70 Test table 0 mm 170 Height mm 400 Supplementary weight tor Share D (71.28) 13 BAQ Digital rebound hardness tester dynaROCK II Sturdy casing of anodised aluminium. Evaluation to DIN 50156 and ASTM A956 in Rockwell HRC &HRB, Vickers HV, Brinell HB, and high-tensile steel. The device can be used in any orientation (horizontal, facing upwards, facing downwards). Internal memory for 100,000 measured values, USB port for data transmission to a thermal printer and computer. Accuracy: ±4 HL (0.5 % at 800 HL). Supplied with: Impact tool type D, hardness comparison block, USB data cable, cleaning brush, transport case, charger, and manufacturer's certificate. Optional extras: Alignment rings for curved surfaces, test blocks with DKD certificate and impact tools types DC, DL, D+15, C, and G on request. Spare part: Connecting cable to impact measuring tool 495023. Attention: German version. Order free UK adapter plug No. 081174_GB. 1 Materials and hardness values (HLD 200 -900) Material I HRC K9I HB 1 HV I Steel and cast iron 20-68 60-100 80- 650 80-940 Tool steel 20-68 80 -940 Stainless steel 20-62 s 1 80- 650 80- 800 Cast iron 90- 380 - Die-cast aluminium alloys 20-160 - Brass 40-170 - Bronze 60- 290 - Copper 45-315 - Digital rebound hardness tester Minimum weight of test piece Length Width Height Weight 238 kg mm g 1772.10 25 135 79 22 320 495002 495003 495016
