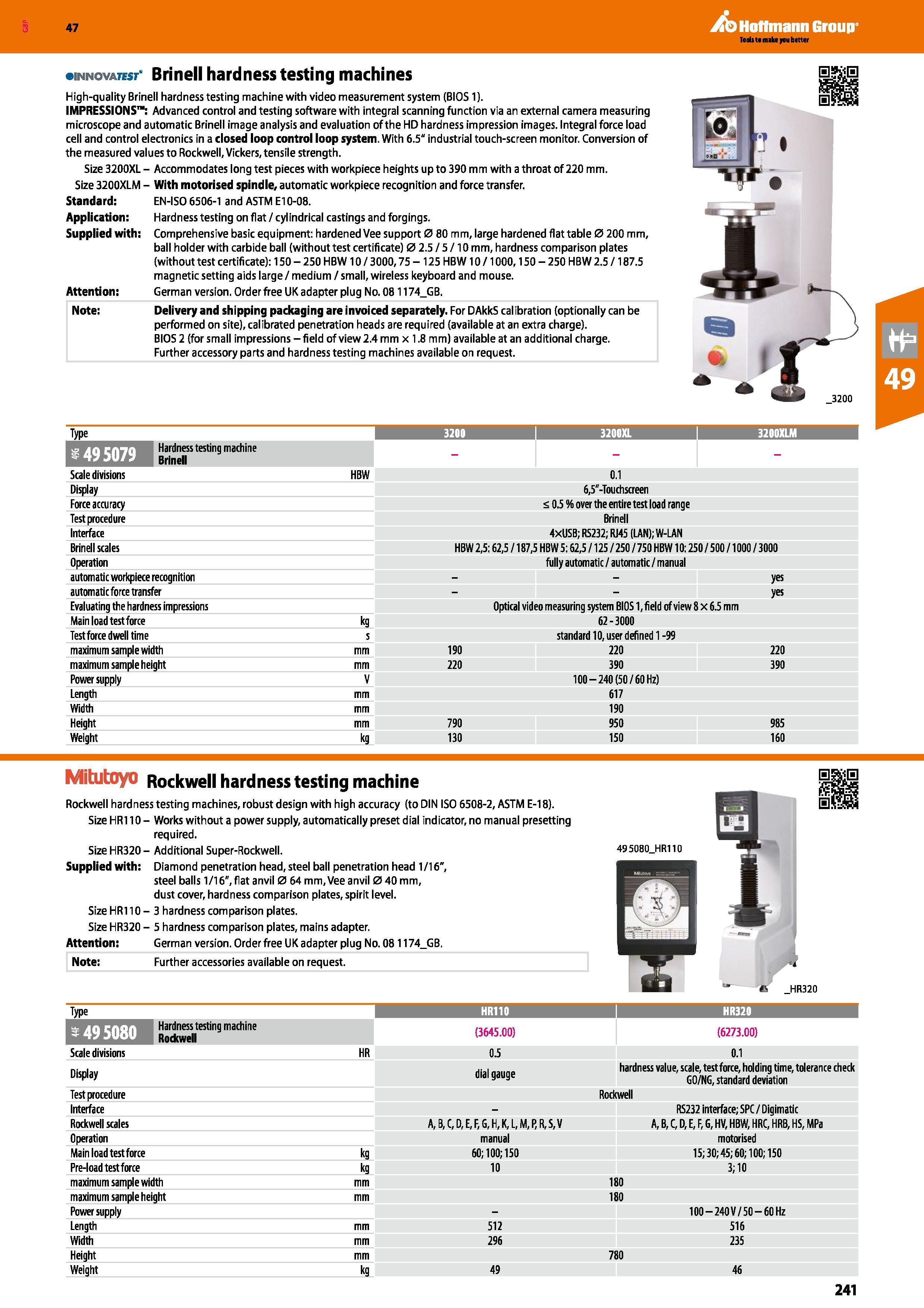

47 innovator Brinell hardness testing machines High-quality Brinell hardness testing machine with video measurement system (BIOS 1). IMPRESSIONS : Advanced control and testing software with integral scanning function via an external camera measuring microscope and automatic Brinell image analysis and evaluation of the HD hardness impression images. Integral force load cell and control electronics in a closed loop control loop system. With 6.5“ industrial touch-screen monitor. Conversion of the measured values to Rockwell, Vickers, tensile strength. Size 3200XL - Accommodates long test pieces with workpiece heights up to 390 mm with a throat of 220 mm. Size 3200XLM - With motorised spindle, automatic workpiece recognition and force transfer. Standard: EN-ISO 6506-1 and ASTM El 0-08. Application: Hardness testing on flat / cylindrical castings and forgings. Supplied with: Comprehensive basic equipment: hardened Vee support 0 80 mm, large hardened flat table 0 200 mm, ball holder with carbide ball (without test certificate) 0 2.5 / 5 /10 mm, hardness comparison plates (without test certificate): 150 - 250 HBW10 / 3000,75 - 125 HBW10/1000,150 - 250 HBW 2.5 /187.5 magnetic setting aids large / medium / small, wireless keyboard and mouse. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Delivery and shipping packaging are invoiced separately. For DAkkS calibration (optionally can be performed on site), calibrated penetration heads are required (available at an extra charge). BIOS 2 (for small impressions - field ofview2.4mm x 1.8 mm) available at an additional charge. Further accessory parts and hardness testing machines available on request. Hoffmann Group 3210 I 3200XL I 3200XLM I Hardness testing machine Scale divisions HBW 0.1 Display 6,5"-Touchscreen Force accuracy <, 0.5 % over the entire test load range Test procedure Brinell Interface 4XUSB; RS232; RJ45 (LAN); W-LAN Brinell scales HBW 2,5:62,5/187,5 HBW 5:62,5/125 / 250 / 750 HBW10:250/500/1000/3000 Operation fully automatic / automatic / manual automatic workpiece recognition - yes automatic force transfer - yes Evaluating the hardness impressions Optical video measuring system BIOS 1, field of view 8 x 6.5 mm Main load test force kg 62-3000 Test force dwell time s standard 10, user defined 1 -99 maximum sample width mm 190 220 220 maximum sample height mm 220 390 390 Power supply V 100 - 240 (50 / 60 Hz) Length mm 617 Width mm 190 Height mm 790 950 985 Weight kg 130 150 160 Mitutoyo Rockwell hardness testing machine Rockwell hardness testing machines, robust design with high accuracy (to DIN ISO 6508-2, ASTM E-18). Size HR110 - Works without a power supply, automatically preset dial indicator, no manual presetting required. Size HR320- Additional Super-Rockwell. Supplied with: Diamond penetration head, steel ball penetration head 1/16", steel balls 1/16", flat anvil 0 64 mm, Vee anvil 0 40 mm, dust cover, hardness comparison plates, spirit level. Size HR110 - 3 hardness comparison plates. Size HR320 - 5 hardness comparison plates, mains adapter. Attention: German version. Order free UK adapter plug No. 081174_GB, Note: Further accessories available on request. 6 HR320 Type HR110 I HR320 Hardness testing machine Rockwell (3645.00) (6273.00) Scale divisions HR Oi 0.1 Display dial gauge hardness value, scale, test force, holding time, tolerance check G0/NG, standard deviation Test procedure Rockwell Interface - RS232 interface; SPC / Digimatic Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V A, B, C, D, E, F, G, HV, HBW, HRC, HRB, HS, MPa Operation manual motorised Main load test force kg 60; 100; 150 15; 30; 45; 60; 100; 150 Pre-load test force kg 10 3; 10 maximum sample width mm 180 maximum sample height mm 180 Power supply - 100 240V/50 60 Hz Length mm 512 516 Width mm 296 235 Height Weight mm kg 780 49 46 241
