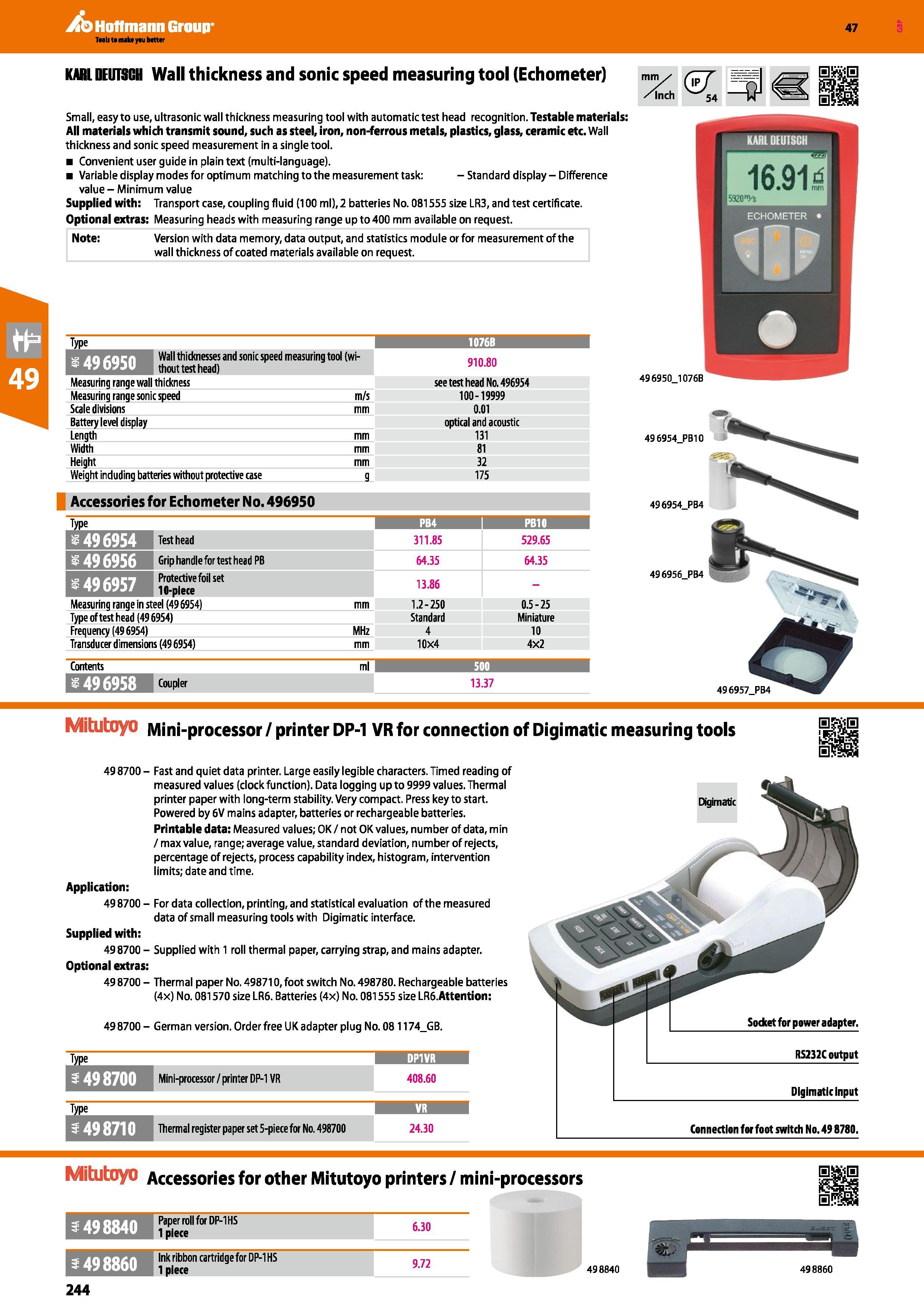

Hoffmann Group 47 KARL DEUTSCH Wall thickness and sonic speed measuring tool (Echometer) Small, easy to use, ultrasonic wall thickness measuring tool with automatic test head recognition. Testable materials: All materials which transmit sound, such as steel, iron, non-ferrous metals, plastics, glass, ceramic etc. Wall thickness and sonic speed measurement in a single tool. Convenient user guide in plain text (multi-language). Variable display modes for optimum matching to the measurement task: - Standard display - Difference value - Minimum value Supplied with: Transport case, coupling fluid (100 ml), 2 batteries No. 081555 size LR3, and test certificate. Optional extras: Measuring heads with measuring range up to 400 mm available on request. Note: Version with data memory, data output, and statistics module or for measurement of the wall thickness of coated materials available on request. Inch Type 1076B Wall thicknesses and sonic speed measuring tool (wi- HiiAaM thout test head) 910.80 Measuring range wall thickness see test head No. 496954 Measuring range sonic speed m/s 100-19999 Scale divisions mm 0.01 Battery level display optical and acoustic Length mm 131 Width mm 81 Height mm 32 Weight induding batteries without protective case g 175 Accessories for Echometer No. 496950 Type PB4 i PB10 I 49 6954 311.85 529.65 JiVJmiM Grip handle for test head PB 64.35 64.35 Protective foil set SEEttZi 10-piece 13.86 - Measuring range in steel (496954) mm 1.2-250 0.5-25 Type of test head (49 6954) Standard Miniature Frequency (496954) MHz 4 10 Transducer dimensions (49 6954) mm 10X4 4x2 Contents ml 500 gUI.'VliU Coupler 13.37 496950 1076B 496954_PB10 496954_PB4 496956 PB4 Mitutoyo Mini-processor / printer DP-1 VR for connection of Digimatic measuring tools 49 8700 - Fast and quiet data printer. Large easily legible characters. Timed reading of measured values (clock function). Data logging up to 9999 values. Thermal printer paper with long-term stability. Very compact. Press key to start. Powered by 6V mains adapter, batteries or rechargeable batteries. Printable data: Measured values; OK / not OK values, number of data, min /max value, range; average value, standard deviation, number of rejects, percentage of rejects, process capability index, histogram, intervention limits; date and time. Application: 49 8700 - For data collection, printing, and statistical evaluation of the measured data of small measuring tools with Digimatic interface. Supplied with: 498700 - Supplied with 1 roll thermal paper, carrying strap, and mains adapter. Optional extras: 49 8700 - Thermal paper No. 498710, foot switch No. 498780. Rechargeable batteries (4x) No. 081570 size LR6. Batteries (4x) No. 081555 size LRS.Attention: 498700- German version. Order free UK adapter plug No. 081174_GB. Type DP1VR mmm Mini-processor / printer DP-1 VR 408.60 Type VR i 3 498710 Thermal register paper set 5-piece for No. 498700 24.30 RS232C output Digimatic input Connection for foot switch No. 49 8780. Mitutoyo Accessories for other Mitutoyo printers / mini-processors 3 49 8840 Paper roll for DP-1 HS 1 piece 6.30 Ink ribbon cartridge for DP-1 HS 1 piece 9.72 49 8840 498860 244 Digimatic Sodcet for power adapter.
