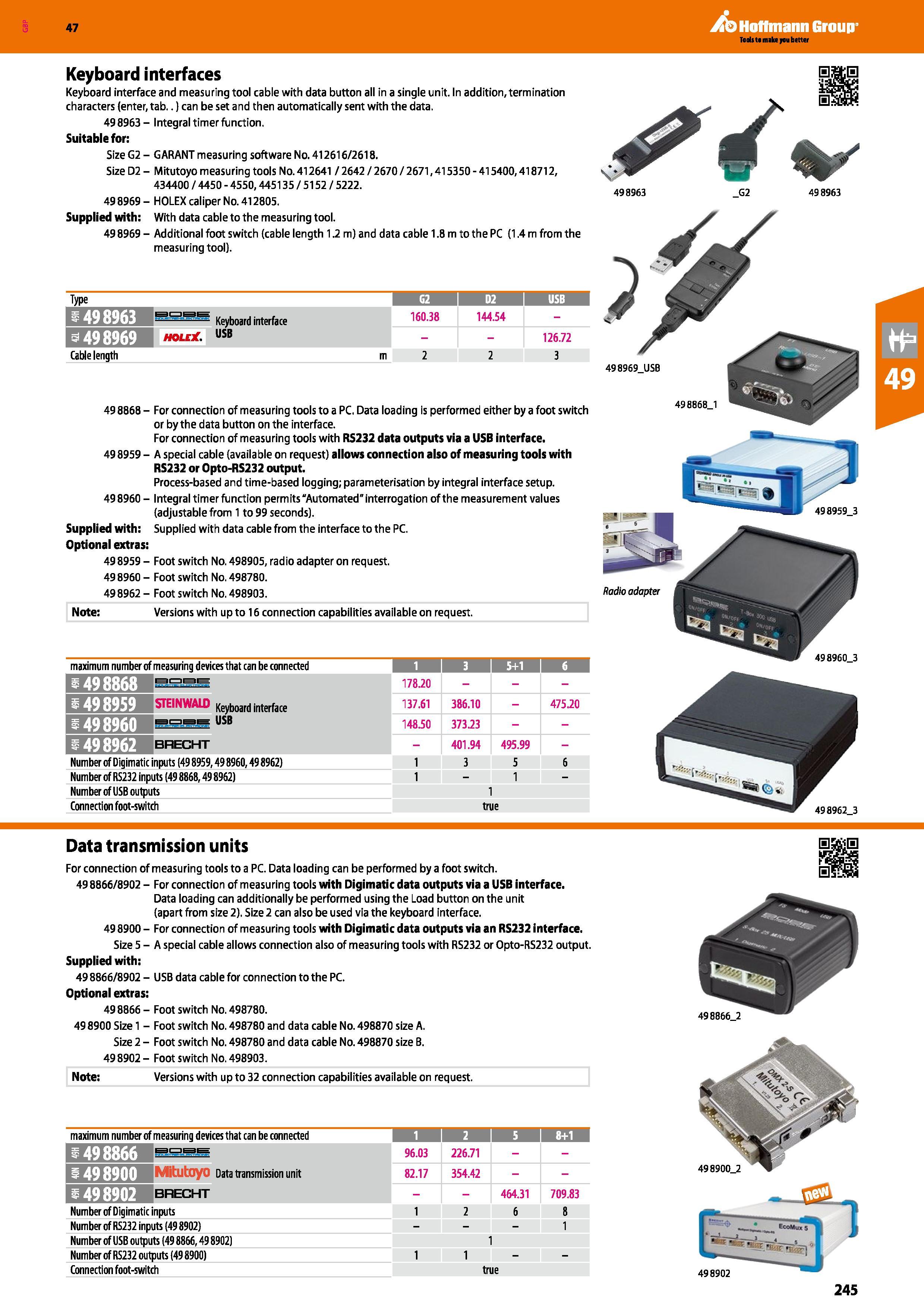

47 Keyboard interfaces Keyboard interface and measuring tool cable with data button all in a single unit. In addition, termination characters (enter, tab..) can be set and then automatically sent with the data. 498963- Integral timer function. Suitable for: Size G2 - GARANT measuring software No. 412616/2618. Size D2 - Mitutoyo measuring tools No. 412641 / 2642 / 2670 / 2671,415350 - 415400,418712, 434400 / 4450 - 4550,445135 / 5152 / 5222. 49 8969 - HOLEX caliper No. 412805. Supplied with: With data cable to the measuring tool. 498969 - Additional foot switch (cable length 1.2 m)and data cable 1.8 m to the PC (1.4 m from the measuring tool). As) Hoffmann Group Type mmm q i 02 USB 1 Keyboard interface 160.38 144.54 - N 49 8969 HOLE . USB 126.72 Cable length m 2 2 3 49 8868 - For connection of measuring tools to a PC. Data loading is performed either by a foot switch or by the data button on the interface. For connection of measuring tools with RS232 data outputs via a USB interface. 49 8959 - A special cable (available on request) allows connection also of measuring tools with RS232 or Opto-RS232 output. Process-based and time-based logging; parameterisation by integral interface setup. 498960 - Integral timer function permits "Automated" interrogation of the measurement values (adjustable from 1 to 99 seconds). Supplied with data cable from the interface to the PC. Supplied with: Optional extras: 498959- 498960-498962- Note: Foot switch No. 498905, radio adapter on request. Foot switch No. 498780. Foot switch No. 498903. Versions with up to 16 connection capabilities available on request. maximum number of measuring devices that can be connected H 3 I 3+1 EESj susam 178.20 STEINWALD Keyboard interface 137.61 386.10 - 475.20 pi =y=a= USB 148.50 373.23 TlVLVIftM BRECHT - 401.94 495.99 - Number of Digimatic inputs (49 8959,49 8960,49 8962) 1 3 5 6 Number of RS232 inputs (49 8868,49 8962) 1 - 1 - Number of USB outputs 1 Connection foot-switch true 498962_3 Data transmission units For connection of measuring tools to a PC. Data loading can be performed by a foot switch. 49 8866/8902 - For connection of measuring tools with Digimatic data outputs via a USB interface. Data loading can additionally be performed using the Load button on the unit (apart from size 2), Size 2 can also be used via the keyboard interface. 49 8900 - For connection of measuring tools with Digimatic data outputs via an RS232 interface. Size 5 - A special cable allows connection also of measuring tools with RS232 or Opto-RS232 output. Supplied with: 498866/8902 - USB data cable for connection to the PC. Optional extras: 498866 - Foot switch No. 498780. 49 8900 Size 1 - Foot switch No. 498780 and data cable No. 498870 size A. Size 2 - Foot switch No. 498780 and data cable No. 498870 size B. 498902 - Foot switch No. 498903. Note: Versions with up to 32 connection capabilities available on request. maximum number of measuring devices that can be connected 1 I 2 5 8+1 96.03 226.71 ££Ji£JimMitutoyG Data transmission unit 82.17 354.42 EUl BRECHT 464.31 709.83 Number of Digimatic inputs 1 2 6 8 Number of RS232 inputs (49 8902) 1 Number of USB outputs (49 8866,49 8902) 1 Number of RS232 outputs (49 8900) 1 1 Connection foot-switch true 498866_2 498900_2
