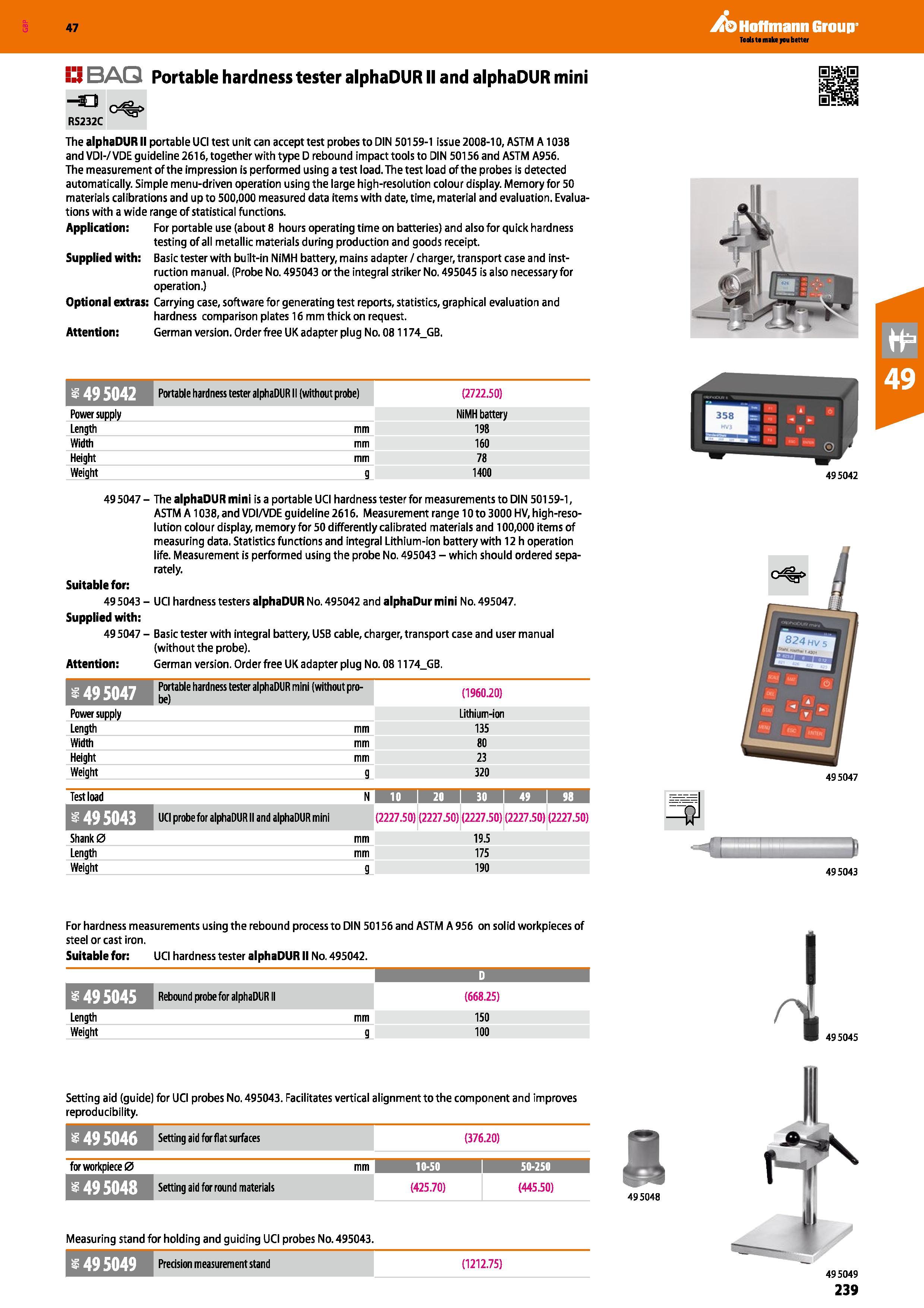

Hoffmann Group 47 s3 BAQ Portable hardness tester alphaDUR II and alphaDUR mini an RS232C The alphaDUR II portable UCI test unit can accept test probes to DIN 50159-1 issue 2008-10, ASTM A1038 and VDI-/VDE guideline 2616, together with type D rebound impact tools to DIN 50156 and ASTM A956. The measurement of the impression is performed using a test load. The test load of the probes is detected automatically. Simple menu-driven operation using the large high-resolution colour display. Memory for 50 materials calibrations and up to 500,000 measured data items with date, time, material and evaluation. Evaluations with a wide range of statistical functions. Application: For portable use (about 8 hours operating time on batteries) and also for quick hardness testing of all metallic materials during production and goods receipt. Supplied with: Basic tester with built-in NiMH battery, mains adapter /charger, transport case and instruction manual. (Probe No. 495043 or the integral striker No. 495045 is also necessary for operation.) Optional extras: Carrying case, software for generating test reports, statistics, graphical evaluation and hardness comparison plates 16 mm thick on request. Attention: German version. Order free UK adapter plug No. 081174_GB. £495042 Portable hardness tester alphaDUR II (without probe) (2722.50) Power supply NiMH battery Length mm 198 Width mm 160 Height mm 78 Weight g 1400 495047 - The alphaDUR mini is a portable UCI hardness tester for measurements to DIN 50159-1, ASTM A1038, and VDI/VDE guideline 2616. Measurement range 10 to 3000 HV, high-resolution colour display, memory for 50 differently calibrated materials and 100,000 items of measuring data. Statistics functions and integral Lithium-ion battery with 12 h operation life. Measurement is performed using the probe No. 495043 - which should ordered separately. Suitable for: 49 5043 - UCI hardness testers alphaDUR No. 495042 and alphaDur mini No. 495047. Supplied with: 495047 - Basic tester with integral battery, USB cable, charger, transport case and user manual (without the probe). Attention: German version. Order free UK adapter plug No. 081174_GB. Power supply Length Width Height Weight Portable hardness tester alphaDUR mini (without probe) mm 9 (1960.20) Lithium-ion 135 80 23 320 495042 495047 Test load N mmmiumiumiuuiu UCI probe for alphaDUR II and alphaDUR mini (2227.50) (2227.50) (2227.50) (2227.50) (2227.50) Shank 0 mm 19 J Length mm 175 Weight g 190 495043 For hardness measurements using the rebound process to DIN 50156 and ASTM A 956 on solid workpieces of steel or cast iron. Suitable for: UCI hardness tester alphaDUR II No. 495042. £LLfl£tS Rebound probe for alphaDUR II (668.25) Length mm 150 Weight g 100 495045 Setting aid (guide) for UCI probes No. 495043. Facilitates vertical alignment to the component and improves reproducibility. £49 5046 Setting aid for flat surfaces (376.20) for workpiece 0 mm 10-50 i 50-250 1 Setting aid for round materials (425.70) (445.50) 495048 Measuring stand for holding and guiding UCI probes No. 495043. 495049 Precision measurement stand (1212.75) 239
