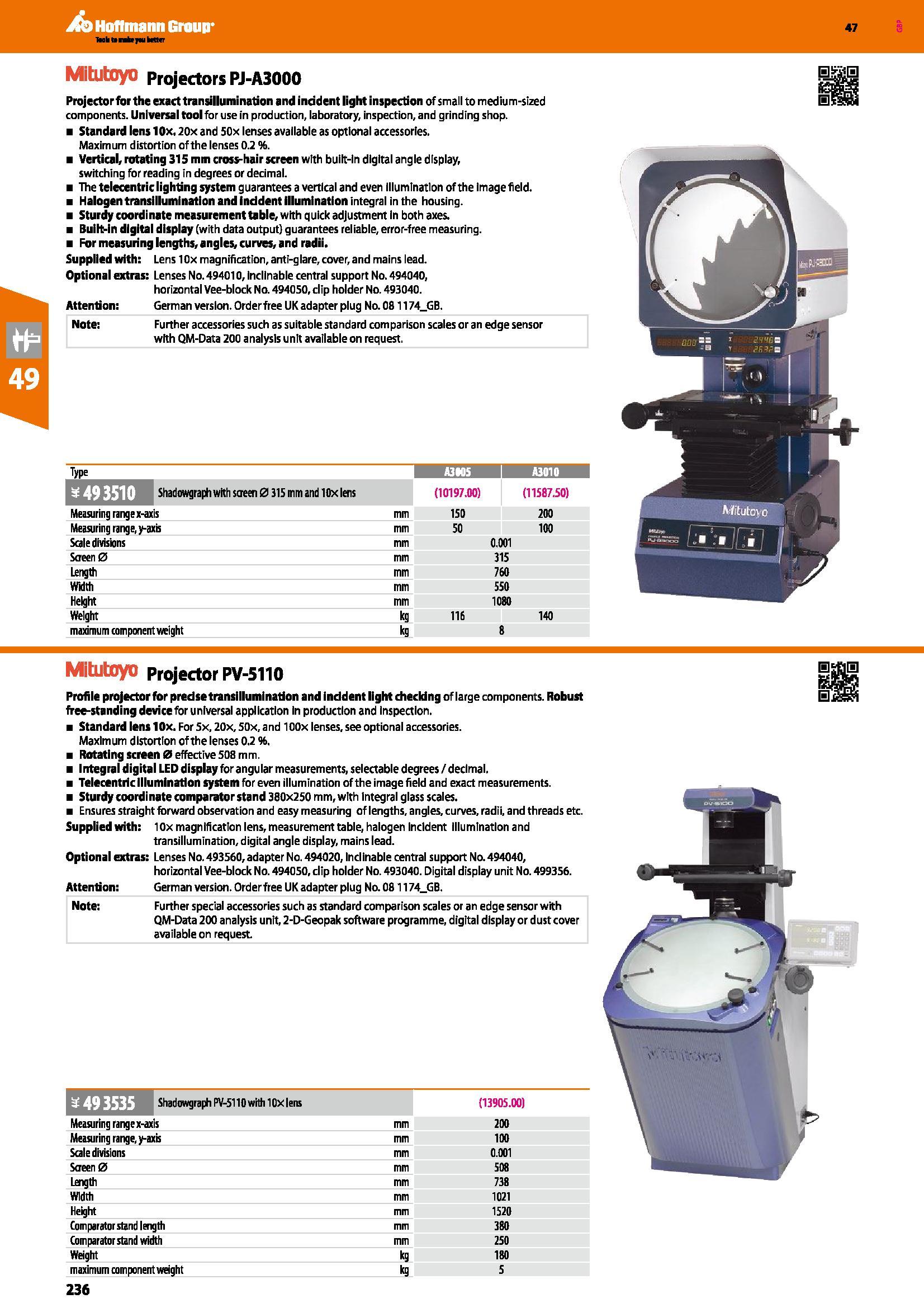

Mitutoyo Projectors PJ-A3000 Projector for the exact transillumination and incident light inspection of small to medium-sized components. Universal tool for use in production, laboratory, inspection, and grinding shop. Standard lens lOx, 20x and 50x lenses available as optional accessories. Maximum distortion of the lenses 0.2 %. Vertical, rotating 315 mm cross-hair screen with built-in digital angle display, switching for reading in degrees or decimal. The telecentric lighting system guarantees a vertical and even Illumination of the Image field. Halogen transillumination and inddent illumination integral in the housing. Sturdy coordinate measurement table/ with quick adjustment In both axes. Built-in digital display (with data output) guarantees reliable, error-free measuring. For measuring lengths, angles, curves, and radii. Supplied with: Lens 10x magnification, anti-glare, cover, and mains lead. Optional extras: Lenses No. 494010, inclinable central support No. 494040, horizontal Vee-block No. 494050, clip holder No. 493040. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Further accessories such as suitable sta ndard com parison scales or an edge sensor with QM-Data 200 analysts unit available on request. Type i A3010 1 rrrll'B Shadowgraph with screen 0 315 mm and 10x lens (10197.00) (11587.50) Measuring range x-axis mm 150 200 Measuring range, y-axis mm 50 100 Scale divisions mm 0.001 Screen 0 mm 315 Length mm 760 Width mm 550 Height mm 1080 Weight kg 116 140 maximum component weight kg 8 MitutoyD projector PV-5110 Profile projector for predse transillumination and inddent light checking of large components. Robust free-standing device for universal application In production and Inspection. Standard lens 10x. For Sx, 20x, SOx, and 100x lenses, see optional accessories. Maximum distortion of the lenses 0.2 %, Rotating screen 0 effective 508 mm. I ntegral digital LED display for angu lar measurements, selectable degrees / decimal. Telecentric Illumination system for even illumination of the image field and exact measurements. Sturdy coordinate comparator stand 380x250 mm, with integral glass scales. Ensures straight forward observation and easy measuring of lengths, angles, curves, radii, and threads etc. Supplied with: 10x magnification lens, measurement table, halogen Incident Illumination and transillumination, digital angle display, mains lead. Optional extras: Lenses No. 493560, adapter No. 494020, Inclinable central support No. 494040, horizontal Vee-block No. 494050, dip holder No. 493040. Digital display unit No. 499356. Attention: German version. Order free UK adapter plug No. 081174_GB. Further special accessories such as standard comparison scales or an edge sensor with QM-Data 200 analysis unit, 2-D-Geopak software programme, digital display or dust cover available on request Shadowgraph PV-5110 with 10x lens (13905.00) Measuring range x-axis mm 200 Measuring range, y-axis mm 100 Scale divisions mm 0.001 Saeen0 mm 508 Length mm 738 Width mm 1021 Height mm 1520 Comparator stand length mm 380 Comparator stand width mm 250 Weight kg 180 maximum component weight kg 5 236
