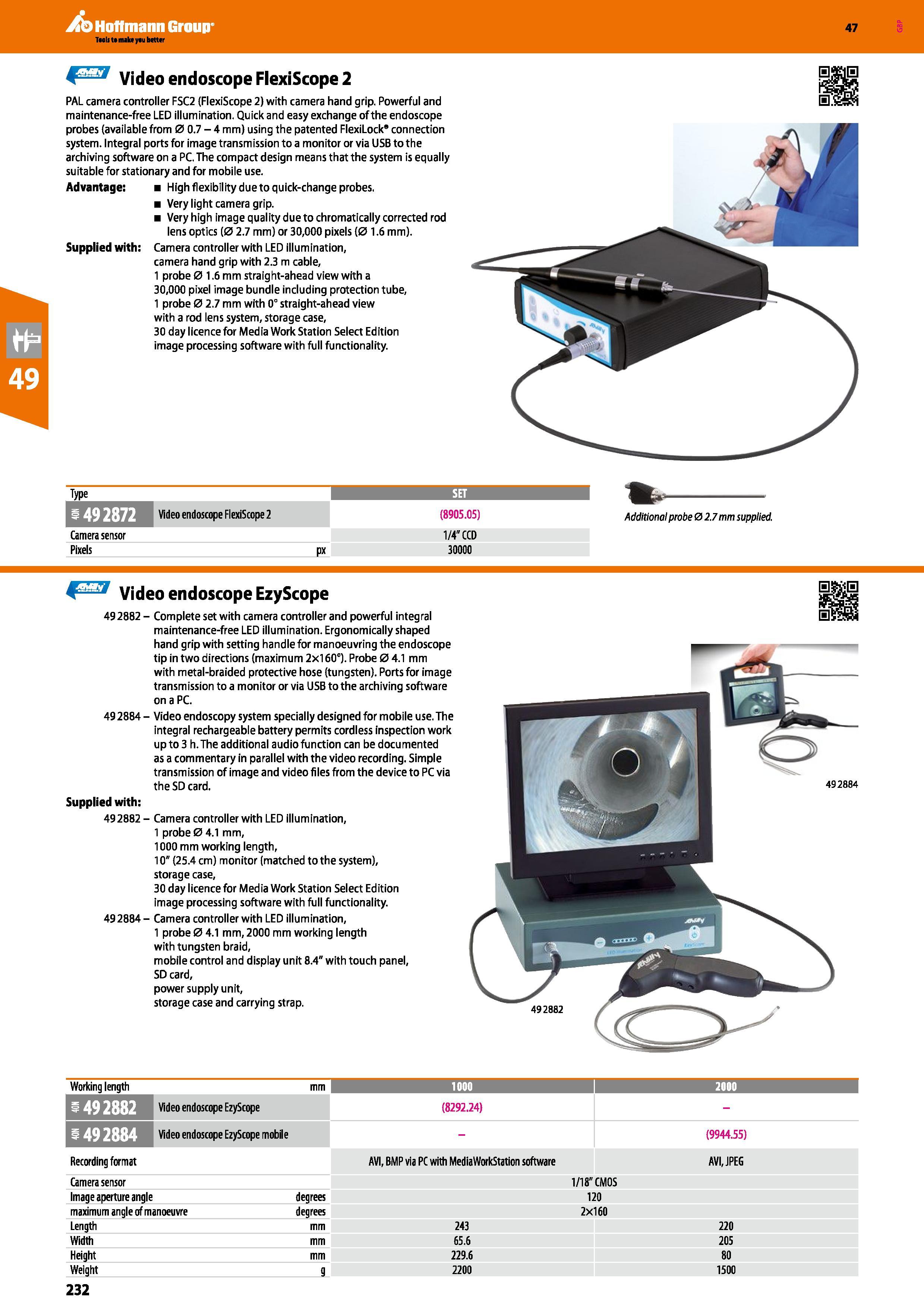

Hoffmann Group 47 Y Video endoscope FlexiScope 2 PAL camera controller FSC2 (FlexiScope 2) with camera hand grip. Powerful and maintenance-free LED illumination. Quick and easy exchange of the endoscope probes (available from 0 0.7 - 4 mm) using the patented FlexiLock” connection system. Integral ports for image transmission to a monitor or via USB to the archiving software on a PC. The compact design means that the system is equally suitable for stationary and for mobile use. Advantage: High flexibility due to quick-change probes. Very light camera grip. Very high image quality due to chromatically corrected rod lens optics (0 2.7 mm) or 30,000 pixels (0 1.6 mm). Supplied with: Camera controller with LED illumination, camera hand grip with 2.3 m cable, 1 probe 0 1.6 mm straight-ahead view with a 30,000 pixel image bundle including protection tube, 1 probe 0 2.7 mm with 0° straight-ahead view with a rod lens system, storage case, 30 day licence for Media Work Station Select Edition image processing software with full functionality. Type SET Video endoscope FlexiScope 2 (8905.05) Camera sensor 1/4"CCD Pixels px 30000 Additional probe 02.7 mm supplied. Y Video endoscope EzyScope 492882 - Complete set with camera controller and powerful integral maintenance-free LED illumination. Ergonomically shaped hand grip with setting handle for manoeuvring the endoscope tip in two directions (maximum 2x160°). Probe 0 4.1 mm with metal-braided protective hose (tungsten). Ports for image transmission to a monitor or via USB to the archiving software on a PC. 49 2884 - Video endoscopy system specially designed for mobile use. The integral rechargeable battery permits cordless inspection work upto3 h.The additional audio function can be documented as a commentary in parallel with the video recording. Simple transmission of image and video files from the device to PC via the SD card. Supplied with: 492882 - Camera controller with LED illumination, 1 probe 0 4.1 mm, 1000 mm working length, 10" (25.4 cm) monitor (matched to the system), storage case, 30 day licence for Media Work Station Select Edition image processing software with full functionality. 492884- Camera controller with LED illumination, 1 probe 0 4.1 mm, 2000 mm working length with tungsten braid, mobile control and display unit 8.4" with touch panel, SD card, power supply unit, storage case and carrying strap. Working length mm 1000 1 2000 Video endoscope EzyScope (8292.24) - Video endoscope EzyScope mobile - (9944.55) Recording format AVI, BMP via PC with MediaWorkStation software AVI, JPEG Camera sensor 1/18" CMOS Image aperture angle degrees 120 maximum angle of manoeuvre degrees 2x160 Length mm 243 220 Width mm 65.6 205 Height mm 229.6 80 Weight 9 2200 1500
