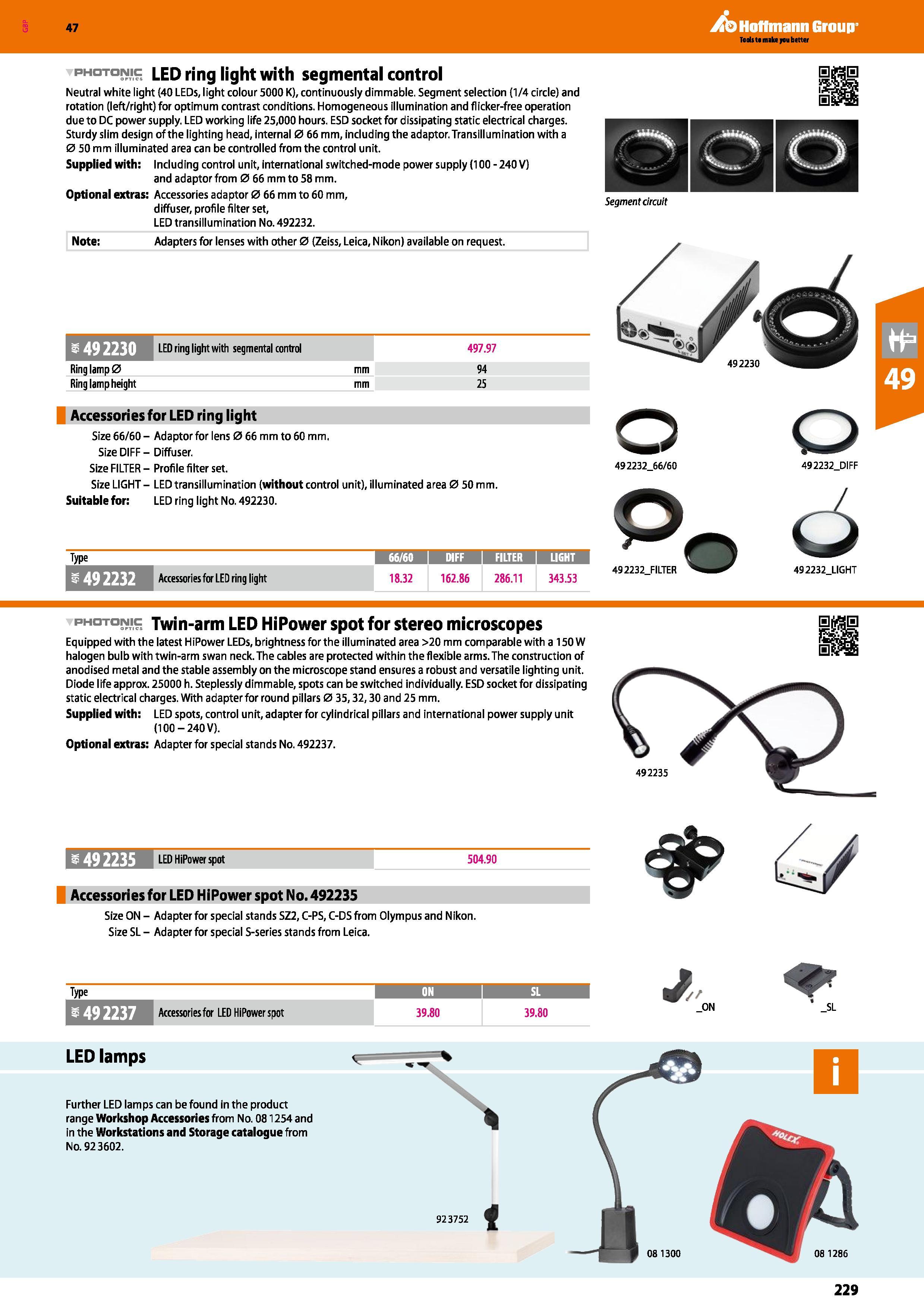

47 photonic LED ring light with segmental control Neutral white light (40 LEDs, light colour 5000 K), continuously dimmable. Segment selection (1/4 circle) and rotation (left/right) for optimum contrast conditions. Homogeneous illumination and flicker-free operation due to DC power supply. LED working life 25,000 hours. ESD socket for dissipating static electrical charges. Sturdy slim design of the lighting head, internal 0 66 mm, including the adaptor. Transillumination with a 0 50 mm illuminated area can be controlled from the control unit. Supplied with: Including control unit, international switched-mode power supply (100 - 240 V) and adaptor from 0 66 mm to 58 mm. Optional extras: Accessories adaptor 0 66 mm to 60 mm, diffuser, profile filter set, LED transillumination No. 492232. Hoffmann Group Note: Adapters for lenses with other 0 (Zeiss, Leica, Nikon) available on request. £492230 LED ring light with segmental control 497.97 Ring lamp 0 mm 94 Ring lamp height mm 25 Accessories for LED ring light Size 66/60 - Adaptor for lens 0 66 mm to 60 mm. Size DIFF - Diffuser. Size FILTER - Profile filter set. Size LIGHT - LED transillumination (without control unit), illuminated area 0 50 mm. Suitable for: LED ring light No. 492230. Type 66/60 j DIFF I FILTER I LIGHT 2232 Accessories for LED ring light 18.32 162.86 286.11 343.53 photonic Twin-arm LED HiPower spot for stereo microscopes Equipped with the latest HiPower LEDs, brightness for the illuminated area >20 mm comparable with a 150W halogen bulb with twin-arm swan neck. The cables are protected within the flexible arms. The construction of anodised metal and the stable assembly on the microscope stand ensures a robust and versatile lighting unit. Diode life approx. 25000 h. Steplessly dimmable, spots can be switched individually. ESD socket for dissipating static electrical charges. With adapter for round pillars 0 35,32,30 and 25 mm. Supplied with: LED spots, control unit, adapter for cylindrical pillars and international power supply unit (100 - 240 V). Optional extras: Adapter for special stands No. 492237. LED HiPower spot 504.90 Accessories for LED HiPower spot No. 492235 Size ON - Adapter for special stands SZ2, C-PS, C-DS from Olympus and Nikon. Size SL - Adapter for special S-series stands from Leica. Type SL Accessories for LED HiPower spot 39.80 39.80 LED lamps c Further LED lamps can be found in the product range Workshop Accessories from No. 081254 and in the Workstations and Storage catalogue from No. 923602. 923752 Segmentdrcult O Q 492232_66/60 492232_DIFF 00 o 492232 FILTER 492232 LIGHT 492235 & J _ON 229
