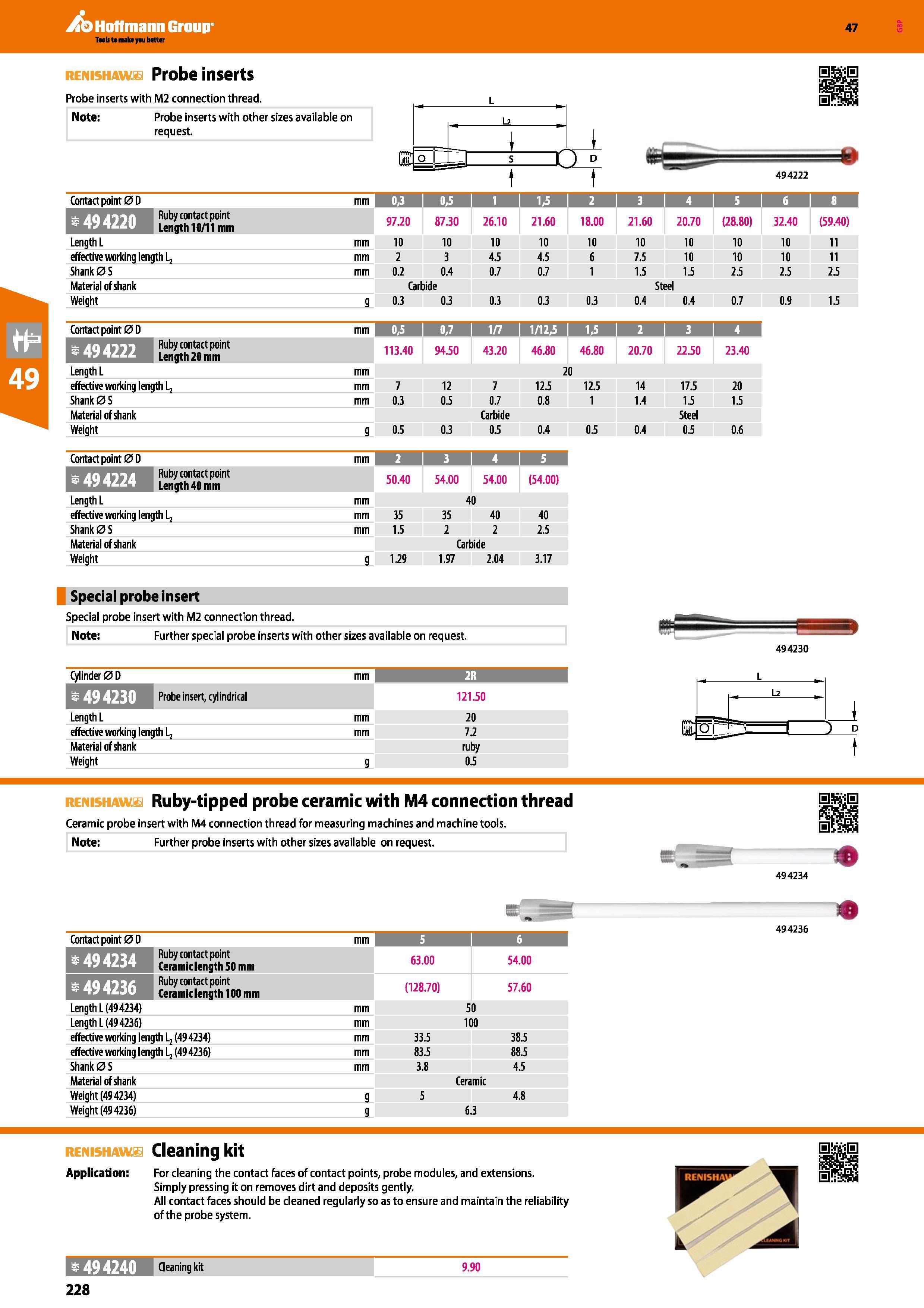

Hoffmann Group Taoli t make yau better renishaws Probe inserts Probe inserts with M2 connection thread. Note: Probe inserts with other sizes available on request. L2 - i 1 li O 1 I s = 0 D 47 494222 Contact point 0D mm 1 0,3 nm 1 i 1,5 2 I 3 I 4 I 5 I 6 8 E9TTRTV Ruby contact point Length 10/11 mm 97.20 87.30 26.10 21.60 18.00 21.60 20.70 (28.80) 32.40 (59.40) Length L mm 10 10 10 10 10 10 10 10 10 11 effective working length L2 mm 2 3 4.5 4.5 6 7.5 10 10 10 11 Shank 0S mm 0.2 0.4 0.7 0.7 1 1.5 1.5 2.5 2.5 2.5 Material of shank Carbide Steel Weight g 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.7 0.9 1.5 Contact point 0D mm wnBi 1/7 1 1/12,5 1 1,5 I 2 I 3 I Ruby contact point Length 20 mm 113.40 94.50 43.20 46.80 46.80 20.70 22.50 23.40 Length L mm 20 effective working length L2 mm 7 12 7 12.5 12.5 14 17.5 20 Shank 0S mm 0.3 0.5 0.7 0.8 1 1.4 1.5 1.5 Material of shank Carbide Steel Weight g 0.5 0.3 0.5 0.4 0.5 0.4 0.5 0.6 Contact point 0D mm 2 I 3 i 4 I 5 Ruby contact point Length 40 mm 50.40 54.00 54.00 (54.00) Length L mm 40 effective working length L, mm 35 35 40 40 Shank 05 mm 1.5 2 2 2.5 Material of shank Carbide Weight g 1.29 1.97 2.04 3.17 Speci al probe insert Special probe insert with M2 connection thread. Note: Further special probe inserts with other sizes available on request. 494230 Cylinder 0 D mm 2R Probe insert, cylindrical 121.50 Length L mm 20 effective working length L2 mm 7.2 Material of shank Weight EuE ruby 0.5 Ruby-tipped probe ceramic with M4 connection thread Ceramic probe insert with M4 connection thread for measuring machines and machine tools. Note: Further probe inserts with other sizes available on request. 494234 Contact point 0D mm 5 1 6 1 Ruby contact point Ceramic length 50 mm 63.00 54.00 Ruby contact point CeramidengthlOOmm (128.70) 57.60 Length L (494234) mm 50 Length L (49 4236) mm 100 effective working length L2 (49 4234) mm 33.5 38.5 effective working length Lj (49 4236) mm 83.5 88.5 Shank 05 mm 3.8 4.5 Material of shank Ceramic Weight (494234) g 5 4.8 494236 Weight (494236) 6.3 5hawb Cleaning kit Application: For cleaning the contact faces of contact points, probe modules, and extensions. Simply pressing it on removes dirt and deposits gently. All contact faces should be cleaned regularly so as to ensure and maintain the reliability of the probe system. Cleaning kit 228 9.90
