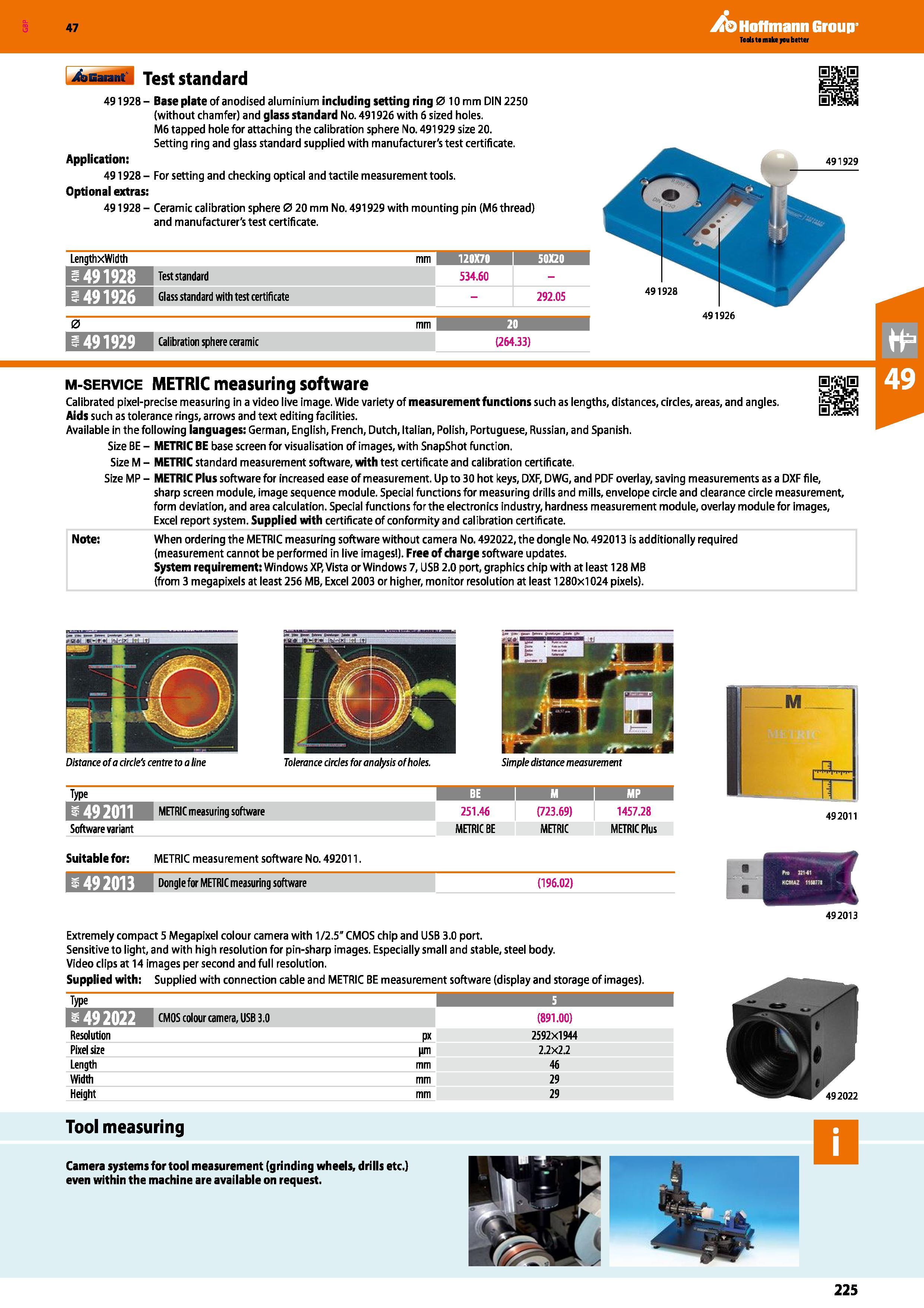

225 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.225

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 225 0225 ENG Lab2u

Hoffmann Group 47 XbGaaaitf Test standard 491928 - Base plate of anodised aluminium including setting ring 0 10 mm DIN 2250 (without chamfer) and glass standard No. 491926 with 6 sized holes. M6 tapped hole for attaching the calibration sphere No. 491929 size 20. Setting ring and glass standard supplied with manufacturer's test certificate. Application: 491928 - For setting and checking optical and tactile measurement tools. Optional extras: 491928 - Ceramic calibration sphere 0 20 mm No. 491929 with mounting pin (M6 thread) and manufacturer's test certificate. 491929 LengthxWidth mm 120X70 I 50X20 I i491928 Test standard 534.60 - i491926 Glass standard with test certificate - 292.05 491928 0 mm 20 Calibration sphere ceramic (264.33) 491926 m-service METRIC measuring software Calibrated pixel-precise measuring in a video live image. Wide variety of measurement functions such as lengths, distances, circles, areas, and angles. Aids such as tolerance rings, arrows and text editing facilities. Available in the following languages: German, English, French, Dutch, Italian, Polish, Portuguese, Russian, and Spanish. Size BE - METRIC BE base screen for visualisation of images, with SnapShot function. Size M - METRIC standard measurement software, with test certificate and calibration certificate. Size MP - METRIC Plus software for increased ease of measurement. Up to 30 hot keys, DXF, DWG, and PDF overlay, saving measurements as a DXF file, sharp screen module, image sequence module. Special functions for measuring drills and mills, envelope circle and clearance circle measurement, form deviation, and area calculation. Special functions for the electronics industry, hardness measurement module, overlay module for images, Excel report system. Supplied with certificate of conformity and calibration certificate. Note: When ordering the METRIC measuring software without camera No. 492022, the dongle No. 492013 is additionally required (measurement cannot be performed in live images ). Free of charge software updates. System requirement: Windows XP, Vista or Windows 7, USB 2.0 port, graphics chip with at least 128 MB (from 3 megapixels at least 256 MB, Excel 2003 or higher, monitor resolution at least 1280x1024 pixels). Distance of a circle's centre to a line Tolerance circles for analysis of holes. Simple distance measurement Type METRIC measuring software 251.46 (723.69) 1457.28 Software variant METRIC BE METRIC METRIC Plus Suitable for: METRIC measurement software No. 492011. Donale for METRIC measurina software (196.02) Extremely compact 5 Megapixel colour camera with 1/2.5" CMOS chip and USB 3.0 port. Sensitive to light, and with high resolution for pin-sharp images. Especially small and stable, steel body. Video clips at 14 images per second and full resolution. Supplied with: Supplied with connection cable and METRIC BE measurement software (display and storage of images). Type 5 CMOS colour camera, USB 3.0 (891.00) Resolution P 2592X1944 Pixel size im 2.2X2.2 Length mm 46 Width mm 29 Height mm 29 M 492011 492013 Tool measuring Camera systems for tool measurement (grinding wheels, drills etc.) even within the machine are available on request. 492022 225
