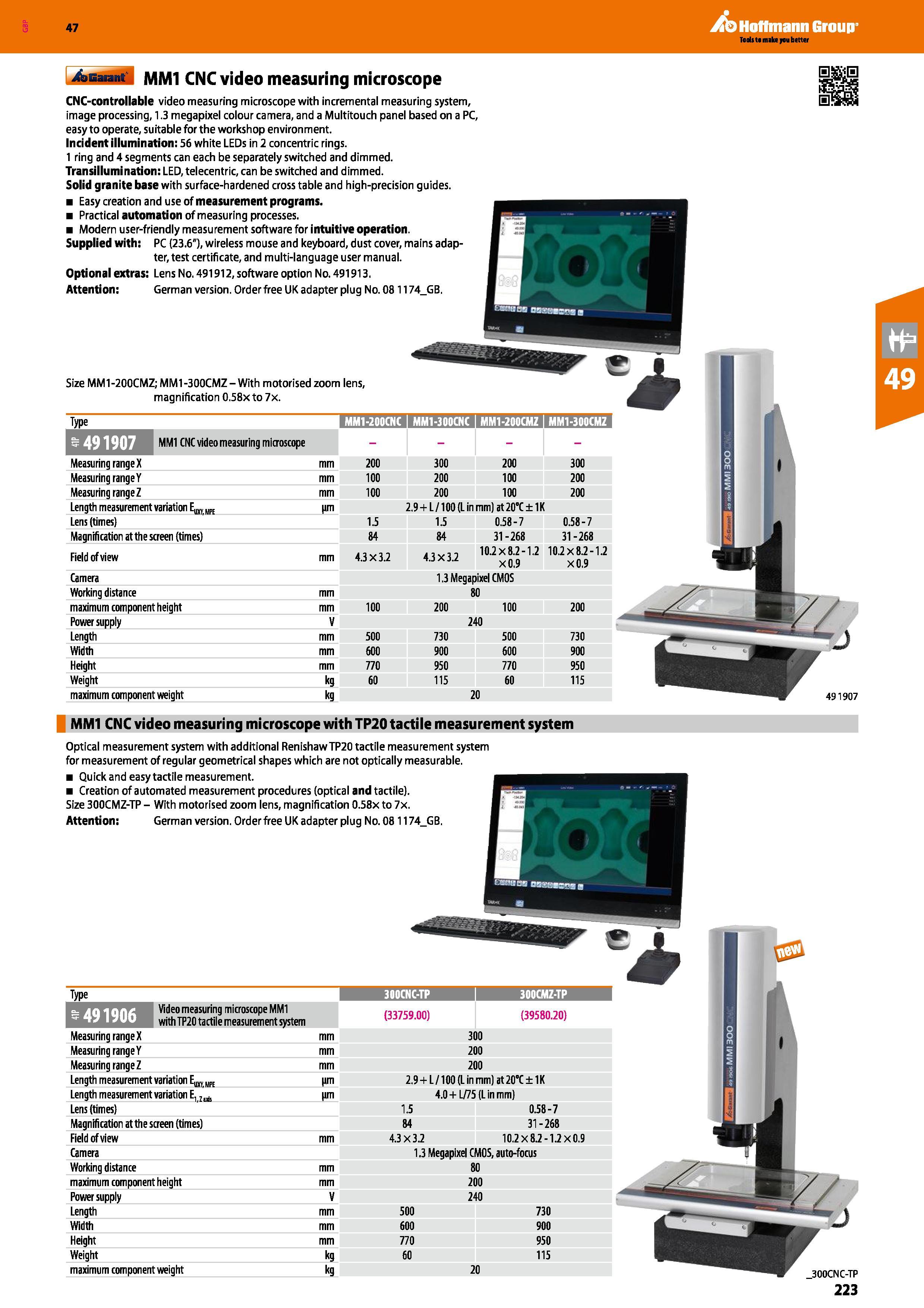

Hoffmann Group 47 Type MM1-200CNC 1 MM1-300CNC 1 MM1-200CMZ 1 MM1-300CMZ MM1 CNC video measuring microscope - Measuring range X mm 200 300 200 300 Measuring range Y mm 100 200 100 200 Measuring range Z mm 100 200 100 200 Length measurement variation EnMFE im 2.9 + L /100 (L in mm) at 20°C ± 1K Lens (times) 1.5 1.5 0.58-7 0.58-7 Magnification at the screen (times) 84 84 31-268 31-268 Field of view mm 4.3 x 3.2 4.3 x 3.2 10.2x8.2-1.2 xO.9 10.2x8.2-1.2 xO.9 Camera 1.3 Megapixel CMOS Working distance mm 80 maximum component height mm 100 200 100 200 Power supply V 240 Length mm 500 730 500 730 Width mm 600 900 600 900 Height mm 770 950 770 950 Weight kg 60 115 60 115 maximum component weight kg 20 4ana M MM1 CNC video measuring microscope CNC-controllable video measuring microscope with incremental measuring system, image processing, 1.3 megapixel colour camera, and a Multitouch panel based on a PC, easy to operate, suitable for the workshop environment. Incident illumination: 56 white LEDs in 2 concentric rings. 1 ring and 4 segments can each be separately switched and dimmed. Transillumination: LED, telecentric, can be switched and dimmed. Solid granite base with surface-hardened cross table and high-precision guides. Easy creation and use of measurement programs. Practical automation of measuring processes. Modern user-friendly measurement software for intuitive operation. Supplied with: PC (23.6"), wireless mouse and keyboard, dust cover, mains adapter, test certificate, and multi-language user manual. Optional extras: Lens No. 491912, software option No. 491913. Attention: German version. Order free UK adapter plug No. 081174_GB. 491907 Size MM1-200CMZ;MM1-300CMZ-With motorised zoom lens, magnification 0.58x to 7x. MM1 CNC video measuring microscope with TP20 tactile measurement system 300CNC-TP 300CMZ-TP WTffEffW Video measuring microscope MM1 with TP20 tactile measurement system (33759.00) (39580.20) Measuring range X mm 300 Measuring rangeY mm 200 Measuring range Z mm 200 Length measurement variation Euiv hpe im 2.9 + L /100 (L in mm) at 20°C ± 1K Length measurement variation E, Zub im 4.0+L/75(Linmm) Lens (times) 1.5 0.58-7 Magnification at the screen (times) 84 31-268 Field of view mm 4.3 X 3.2 10.2x8.2-1.2x0.9 Camera 1.3 Megapixel CMOS, auto-focus Working distance mm 80 maximum component height mm 200 Power supply V 240 Length mm 500 730 Width mm 600 900 Height mm 770 950 Weight kg 60 115 maximum component weight kg 20 Optical measurement system with additional RenishawTP20 tactile measurement system for measurement of regular geometrical shapes which are not optically measurable. Quick and easy tactile measurement. Creation of automated measurement procedures (optical and tactile). Size 300CMZ-TP - With motorised zoom lens, magnification 0.58x to 7x. Attention: German version. Order free UK adapter plug No. 081174_GB. _300CNC-TP 223
