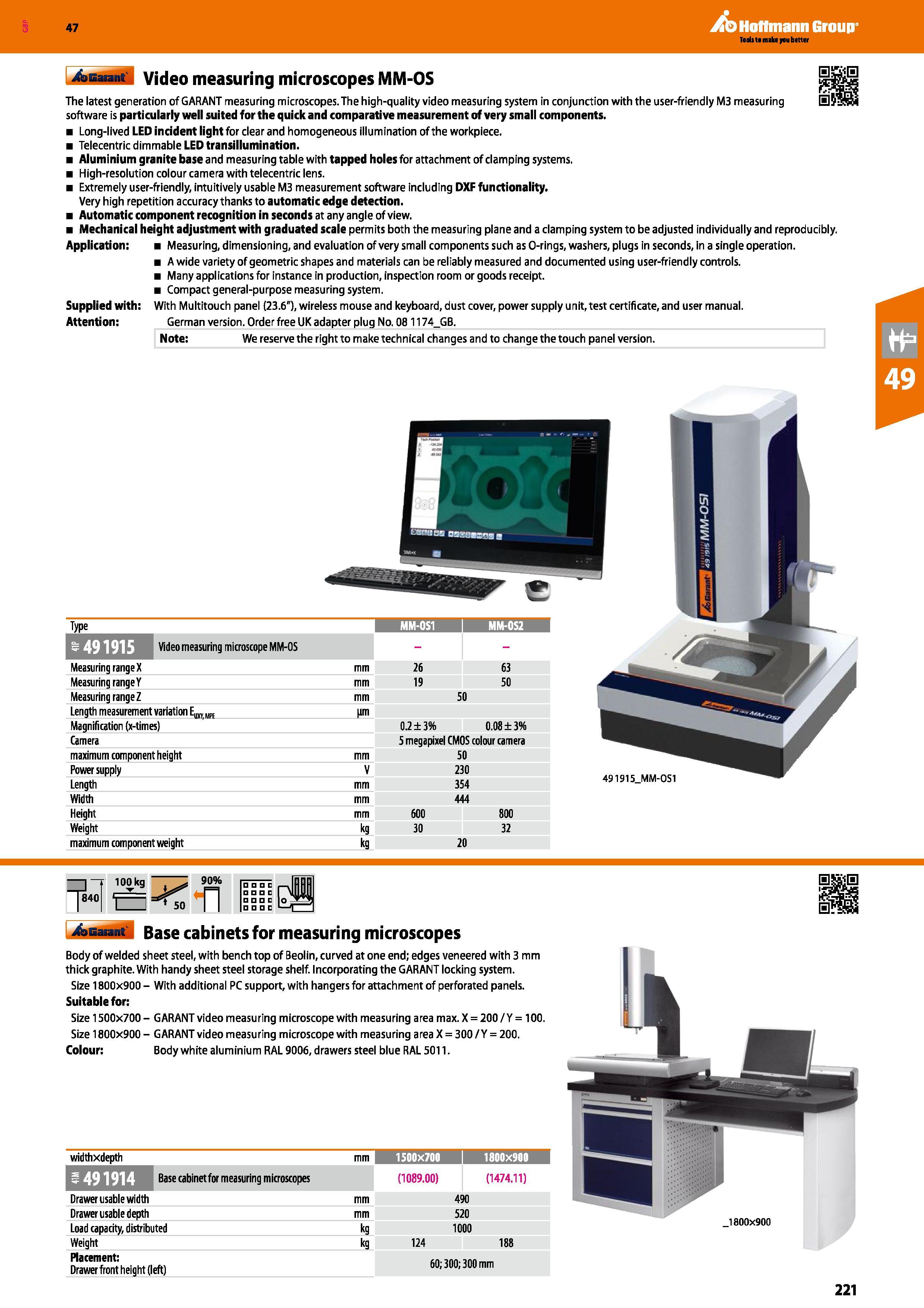

Hoffmann Group 47 XbGaaaitf Video measuring microscopes MM-OS The latest generation of GARANT measuring microscopes. The high-quality video measuring system in conjunction with the user-friendly M3 measuring software is particularly well suited for the quick and comparative measurement of very small components. Long-lived LED incident light for clear and homogeneous illumination of the workpiece. Telecentric dimmable LED transillumination. Aluminium granite base and measuring table with tapped holes for attachment of clamping systems. High-resolution colour camera with telecentric lens. Extremely user-friendly, intuitively usable M3 measurement software including DXF functionality. Very high repetition accuracy thanks to automatic edge detection. Automatic component recognition in seconds at any angle of view. Mechanical height adjustment with graduated scale permits both the measuring plane and a clamping system to be adjusted individually and reproducibly. Application: Supplied with: Attention: Measuring, dimensioning, and evaluation of very small components such as O-rings, washers, plugs in seconds, in a single operation. A wide variety of geometric shapes and materials can be reliably measured and documented using user-friendly controls. Many applications for instance in production, inspection room or goods receipt. Compact general-purpose measuring system. With Multitouch panel (23.6"), wireless mouse and keyboard, dust cover, power supply unit, test certificate, and user manual. German version. Order free UK adapter plug No. 08 1174_GB. Note: We reserve the right to make technical changes and to change the touch panel version. Type 1 MM-0S1 MM-0S2 Video measuring microscope MM-OS Measuring range X mm 26 63 Measuring range Y mm 19 50 Measuring range Z mm 50 Length measurement variation EUXTi UPE im Magnification (x-times) 0.2 ±3% 0.08 ±3% Camera 5 megapixel CMOS colour camera maximum component height mm 50 Power supply V 230 Length mm 354 Width mm 444 Height mm 600 800 Weight kg 30 32 maximum component weight kg 20 491915_MM-OS1 84<>j 100 kg 50 90% n ID D D E lO C XbGarant Base cabinets for measuring microscopes Body of welded sheet steel, with bench top of Beolin, curved at one end; edges veneered with 3 mm thick graphite. With handy sheet steel storage shelf. Incorporating the GARANT locking system. Size 1800x900 - With additional PC support, with hangers for attachment of perforated panels. Suitable for: Size 1500x700 - GARANT video measuring microscope with measuring area max. X = 200 / Y = 100. Size 1800x900- GARANT video measuring microscope with measuring area X = 300 /Y = 200. Colour: Body white aluminium RAL 9006, drawers steel blue RAL 5011. widthxdepth mm 1500x700 i 1800x900 Base cabinet for measuring microscopes (1089.00) (1474.11) Drawer usable width mm 490 Drawer usable depth mm 520 Load capacity, distributed kg 1000 Weight kg 124 188 Placement: Drawer front height (left) 60; 300; 300 mm j800x900 221
