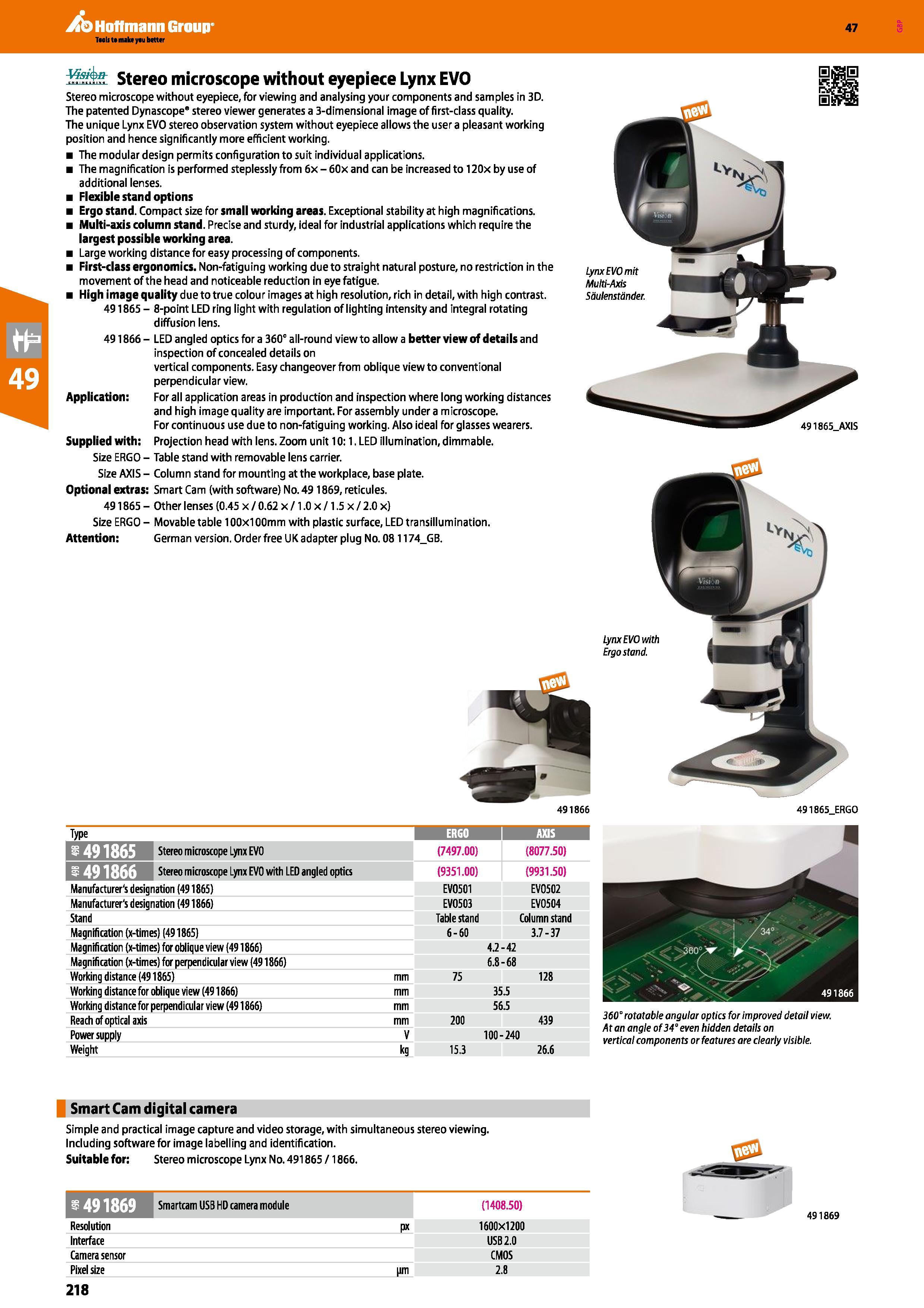

Hoffmann Group 47 Vision Stereo microscope without eyepiece Lynx EVO Stereo microscope without eyepiece, for viewing and analysing your components and samples in 3D. The patented Dynascope" stereo viewer generates a 3-dimensional image of first-class quality. The unique Lynx EVO stereo observation system without eyepiece allows the user a pleasant working position and hence significantly more efficient working. The modular design permits configuration to suit individual applications. The magnification is performed steplessly from 6x - 60x and can be increased to 120x by use of additional lenses. Flexible stand options Ergo stand. Compact size for small working areas. Exceptional stability at high magnifications. Multi-axis column stand. Precise and sturdy, ideal for industrial applications which require the largest possible working area. Large working distance for easy processing of components. First-class ergonomics. Non-fatiguing working due to straight natural posture, no restriction in the movement of the head and noticeable reduction in eye fatigue. High image quality due to true colour images at high resolution, rich in detail, with high contrast. 491865 - 8-point LED ring light with regulation of lighting intensity and integral rotating diffusion lens. 491866 - LED angled optics for a 360° all-round view to allow a better view of details and inspection of concealed details on vertical components. Easy changeover from oblique view to conventional perpendicular view. Application: For all application areas in production and inspection where long working distances and high image quality are important. For assembly under a microscope. For continuous use due to non-fatiguing working. Also ideal for glasses wearers. Supplied with: Projection head with lens. Zoom unit 10:1. LED illumination, dimmable. Size ERGO - Table stand with removable lens carrier. Size AXIS - Column stand for mounting at the workplace, base plate. Optional extras: Smart Cam (with software) No. 491869, reticules. 491865 - Other lenses (0.45 x / 0.62 x /1.0 x /1.5 x / 2.0 x) Size ERGO - Movable table 100x100mm with plastic surface, LED transillumination. Attention: German version. Order free UK adapter plug No. 081174_GB. 491866 Type 1 ERGO 1 AXIS S I I'If FlfiVM Stereo microscope Lynx EVO (7497.00) (8077.50) Stereo microscope Lynx EVO with LED angled optics (9351.00) (9931.50) Manufacturer's designation (491865) EV0501 EV0502 Manufacturer's designation (491866) EV0503 EV0504 Stand Table stand Column stand Magnification (x-times) (491865) 6-60 3.7-37 Magnification (x-times) for oblique view (491866) 4.2-42 Magnification (x-times) for perpendicular view (491866) 6.8-68 Working distance (491865) mm 75 128 Working distance for oblique view (491866) mm 35.5 Working distance for perpendicular view (491866) mm 56.5 Reach of optical axis mm 200 439 Power supply V 100-240 Weight kg 15.3 26.6 491865_ERGO 360° rotatable angular optics for improved detail view. At an angle of 34° even hidden details on vertical components or features are clearly visible. Smart Cam digital camera Simple and practical image capture and video storage, with simultaneous stereo viewing. Including software for image labelling and identification. Suitable for: Stereo microscope Lynx No. 491865 /1866. Smartcam USB HD camera module (1408.50) Resolution px 1600x1200 Interface USB 2.0 Camera sensor CMOS Pixel size pm 2.8 218 491869 Lynx EVO mit Multi-Aids Saulenstdnder. 491865_AXIS Lynx EVO with Ergo stand.
