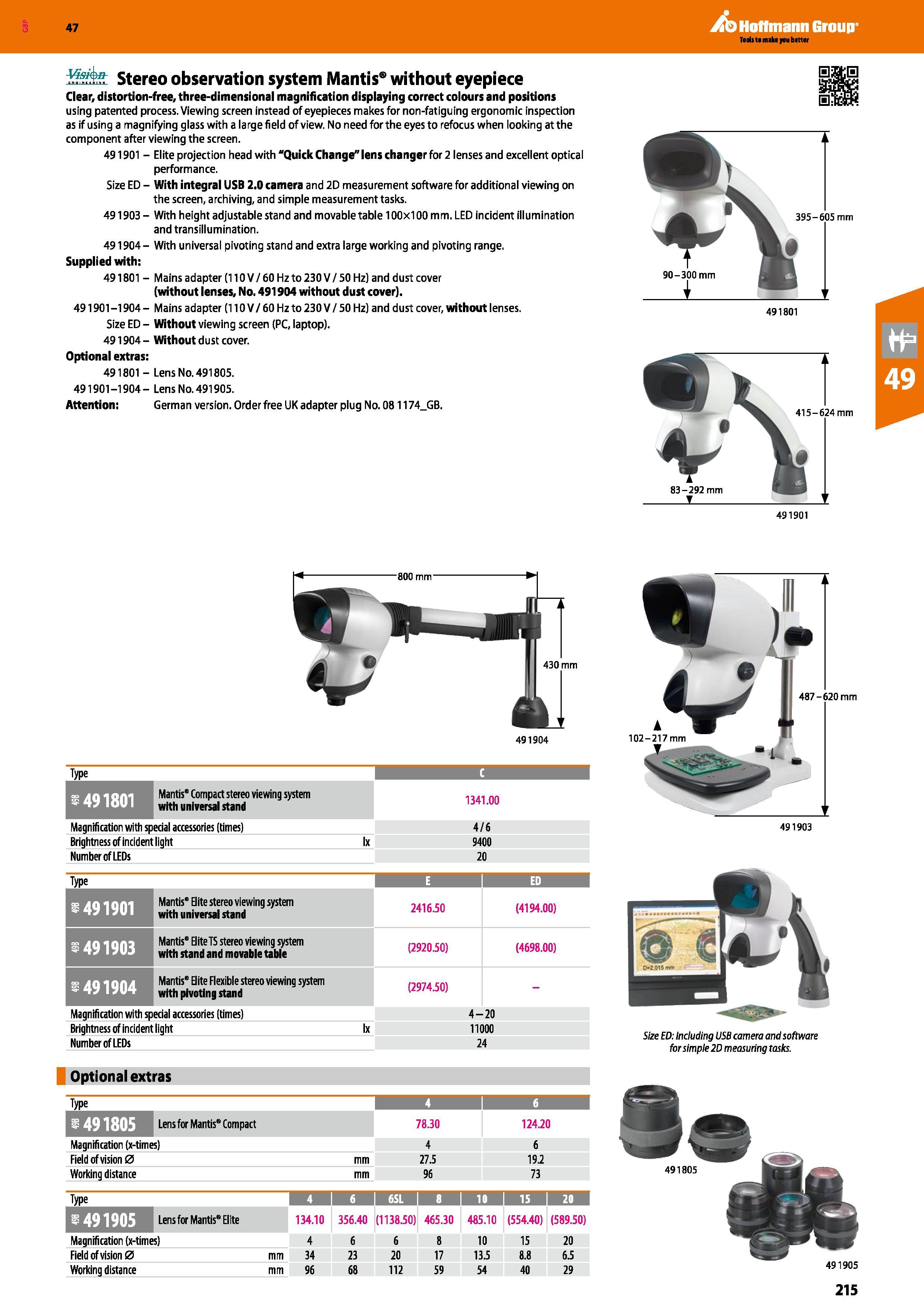

Hoffmann Group 47 Stereo observation system Mantis without eyepiece Clear, distortion-free, three-dimensional magnification displaying correct colours and positions using patented process. Viewing screen instead of eyepieces makes for non-fatiguing ergonomic inspection as if using a magnifying glass with a large field of view. No need for the eyes to refocus when looking at the component after viewing the screen. 491901 - Elite projection head with ‘Quick Change" lens changer for 2 lenses and excellent optical performance. Size ED - With integral USB 2.0 camera and 2D measurement software for additional viewing on the screen, archiving, and simple measurement tasks. 49 1 903 - With height adjustable stand and movable table 100x100 mm. LED incident illumination and transillumination. 491904- With universal pivoting stand and extra large working and pivoting range. Supplied with: 491801 - Mains adapter (110 V / 60 Hz to 230 V / 50 Hz and dust cover (without lenses. No. 491904 without dust cover). 491901 -1904 - Mains adapter (110 V/ 60 Hz to 230 V / 50 Hz and dust cover, without lenses. Size ED - Without viewing screen (PC, laptop). 491904 - Without dust cover. Optional extras: 491801 - Lens No. 491805. 491901-1904- Lens No. 491905. Attention: German version. Order free UK adapter plug No. 081174_GB. mm 491901 491801 mm 491904 Type Mantis’ Compact stereo viewing system with universal stand 1341.00 Magnification with special accessories (times) 4/6 Brightness of incident light Ix 9400 Number of LEDs 20 Type 491901 Mantis Elite stereo viewing system with universal stand Mantis" Elite TS stereo viewing system with stand and movable table Mantis’ Elite Flexible stereo viewing system with pivoting stand Magnification with special accessories (times) Brightness of incident light Number of LEDs 2416.50 (2920.50) (2974.50) 4-20 11000 24 (4194.00) (4698.00) Optional extras Type 491805 Lens for Mantis8 Compact 78.30 124.20 Magnification (x-times) 4 6 Field of vision 0 mm 27.5 19.2 Working distance mm 96 73 Type I SSL I 8 I 1 I 15 i 20 I Lens for Mantis’Elite 134.10 356.40 (1138.50) 465.30 485.10 (554.40) (589.50) Magnification (x-times) 4 6 6 8 10 15 20 Field of vision 0 mm 34 23 20 17 13.5 8.8 6 5 Working distance mm 96 68 112 59 54 40 29 102-217 mm 491903 487-620 mm Size CD: including USB camera and software for simple 2D measuring tasks. 491805 491905 215
