214 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.214

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 214 0214 ENG Lab2u

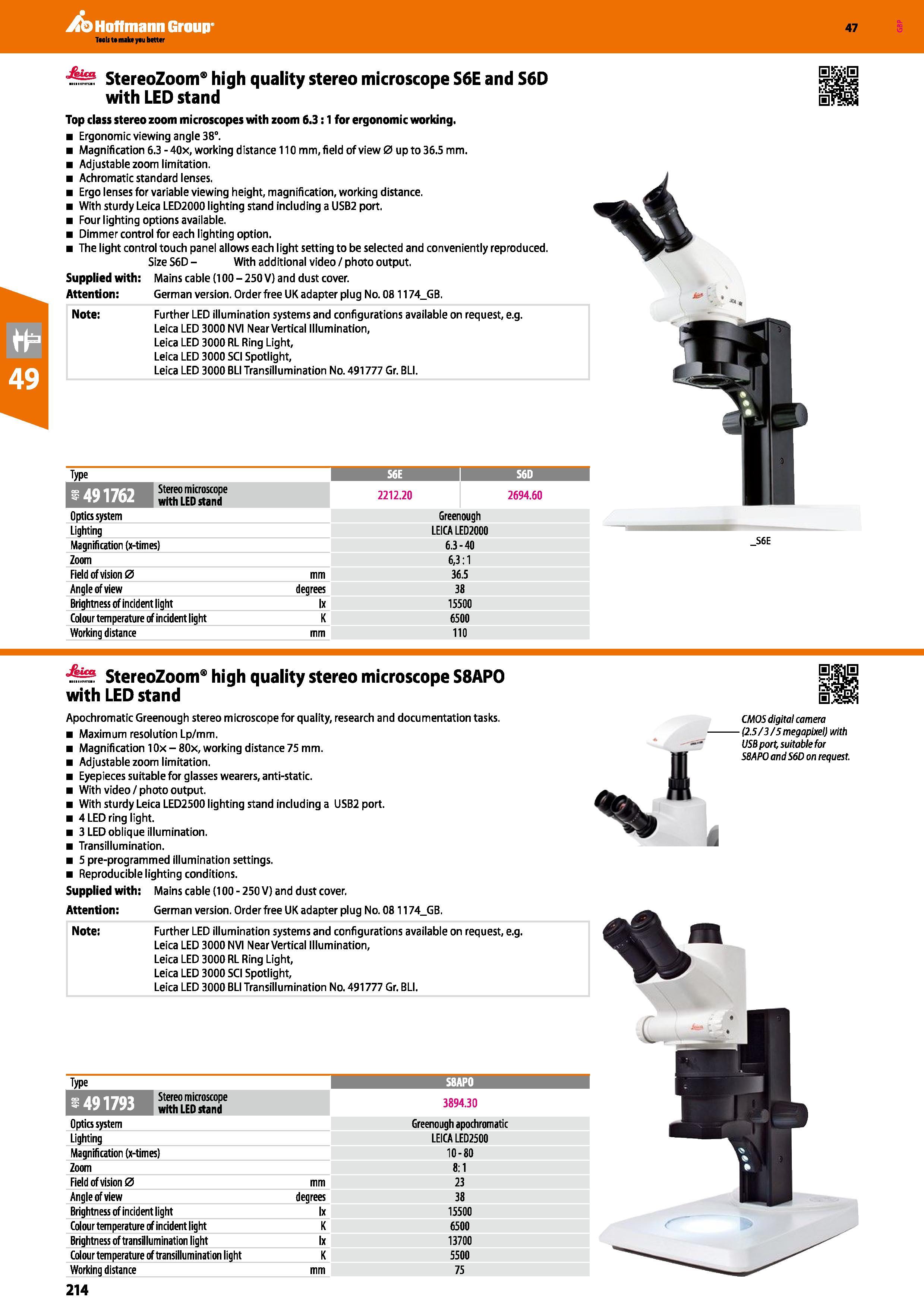

Hoffmann Group 47 StereoZoom high quality stereo microscope S6E and S6D with LED stand Top class stereo zoom microscopes with zoom 6.3:1 for ergonomic working. Ergonomic viewing angle 38°. Magnification 6.3 - 40x, working distance 110 mm, field of view 0 up to 36.5 mm. Adjustable zoom limitation. Achromatic standard lenses. Ergo lenses for variable viewing height, magnification, working distance. With sturdy Leica LED2000 lighting stand including a USB2 port. Four lighting options available. Dimmer control for each lighting option. The light control touch panel allows each light setting to be selected and conveniently reproduced. Size S6D - With additional video / photo output. Supplied with: Mains cable (100 - 250 V) and dust cover. Attention: German version. Order free UK adapter plug No. 081174_GB. Further LED illumination systems and configurations available on request, e.g. Leica LED 3000 NVI Near Vertical Illumination, Leica LED 3000 RL Ring Light, Leica LED 3000 SCI Spotlight, Leica LED 3000 BLI Transillumination No. 491777 Gr. BLI. Type S6E I S6D 1 Stereo microscope with LED stand 2212.20 2694.60 Optics system Greenough Lighting LEICA LED2000 Magnification (x-times) 6.3-40 Zoom 6,3:1 Field of vision 0 mm 36.5 Angle of view degrees 38 Brightness of incident light Ix 15500 Colour temperature of incident light K 6500 Working distance mm 110 S6E high quality stereo microscope S8APO StereoZoom with LED stand Apochromatic Greenough stereo microscope for quality, research and documentation tasks. Maximum resolution Lp/mm. Magnification 10x-80x, working distance 75 mm. Adjustable zoom limitation. Eyepieces suitable for glasses wearers, anti-static. With video /photo output. With sturdy Leica LED2500 lighting stand including a USB2 port. 4 LED ring light. 3 LED oblique illumination. Transillumination. 5 pre-programmed illumination settings. Reproducible lighting conditions. Supplied with: Mains cable (100-250 V) and dust cover. Attention: German version. Order free UK adapter plug No. 081174_GB. % Ji CMOS digital camera - (2.5/3/5 megapixel) with USB port, suitable for S8APO and S6D on request. Note: Further LED illumination systems and configurations available on request, e.g. Leica LED 3000 NVI Near Vertical Illumination, Leica LED 3000 RL Ring Light, Leica LED 3000 SCI Spotlight, Leica LED 3000 BLI Transillumination No. 491777 Gr. BLI. Type S8AP0 1 Stereo microscope with LED stand 3894.30 Optics system Greenough apochromatic Lighting LEICA LED2500 Magnification (x-times) 10-80 Zoom 8:1 Field of vision 0 mm 23 Angle of view degrees 38 Brightness of incident light Ix 15500 Colour temperature of incident light K 6500 Brightness of transillumination light Ix 13700 Colour temperature of transillumination light K 5500 Working distance mm 75
