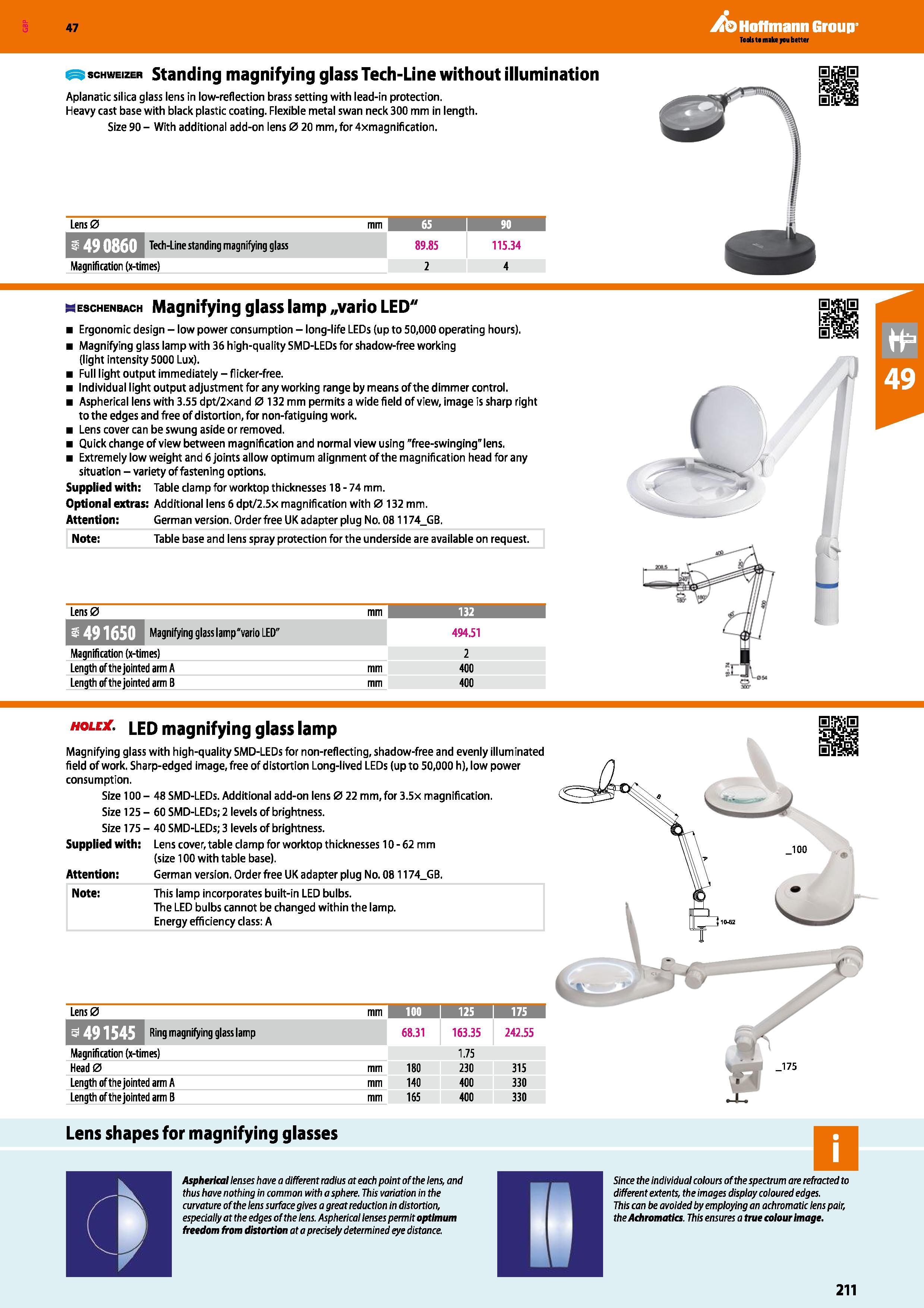

Hoffmann Group 47 £5 SCHWEIZER Standing magnifying glass Tech-Line without illumination Aplanatic silica glass lens in low-reflection brass setting with lead-in protection. Heavy cast base with black plastic coating. Flexible metal swan neck 300 mm in length. Size 90 - With additional add-on lens 0 20 mm, for 4xmagnification. Lens0 mm 65 i 0 1 Tech-Line standing magnifying glass 89.85 115.34 Magnification (x-times) 2 4 sseschenbach Magnifying glass lamp „vario LED" Ergonomic design - low power consumption - long-life LEDs (up to 50,000 operating hours). Magnifying glass lamp with 36 high-quality SMD-LEDs for shadow-free working (light intensity 5000 Lux). Full light output immediately - flicker-free. Individual light output adjustment for any working range by means of the dimmer control. Aspherical lens with 3.55 dpt/2xand 0 132 mm permits a wide field of view, image is sharp right to the edges and free of distortion, for non-fatiguing work. Lens cover can be swung aside or removed. Quick change of view between magnification and normal view using "free-swinging" lens. Extremely low weight and 6 joints allow optimum alignment of the magnification head for any situation - variety of fastening options. Supplied with: Table clamp for worktop thicknesses 18 - 74 mm. Optional extras: Additional lens 6 dpt/2.5x magnification with 0 132 mm. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Table base and lens spray protection for the underside are available on request. Lens0 mm 132 f Magnifying glass lamp"vario LED" 494.51 Magnification (x-times) 2 Length of the jointed arm A mm 400 Length of the jointed arm B mm 400 L hole . LED magnifying glass lamp Magnifying glass with high-quality SMD-LEDs for non-reflecting, shadow-free and evenly illuminated field of work. Sharp-edged image, free of distortion Long-lived LEDs (up to 50,000 h), low power consumption. Size 100 - 48 SMD-LEDs. Additional add-on lens 0 22 mm, for 3.5x magnification. Size 125 - 60 SMD-LEDs; 2 levels of brightness. Size 175 - 40 SMD-LEDs; 3 levels of brightness. Supplied with: Lens cover, table clamp for worktop thicknesses 10-62 mm (size 100 with table base). Attention: German version. Order free UK adapter plug No. 081174_GB, Note: This lamp incorporates built-in LED bulbs. The LED bulbs cannot be changed within the lamp. Energy efficiency class: A Lens0 mm 100 i 125 1 175 1 J H H Ring magnifying glass lamp 68.31 163.35 242.55 Magnification (x-times) 1.75 Head 0 mm 180 230 315 Length of the jointed arm A mm 140 400 330 Length of the jointed arm B mm 165 400 330 Lens shapes for magnifying glasses Aspherical lenses have a different radius at each point of the lens, and thus have nothing in common with a sphere. This variation in the curvature of the lens surface gives a great reduction in distortion, especially at the edges of the lens. Aspherical lenses permit optimum freedom from distortion at a precisely determined eye distance. Since the individual colours of the spectrum are refracted to different extents, the images display coloured edges. This can be avoided by employing an achromatic lens pair, theAchromatlcs. This ensures a true colour image. 211
