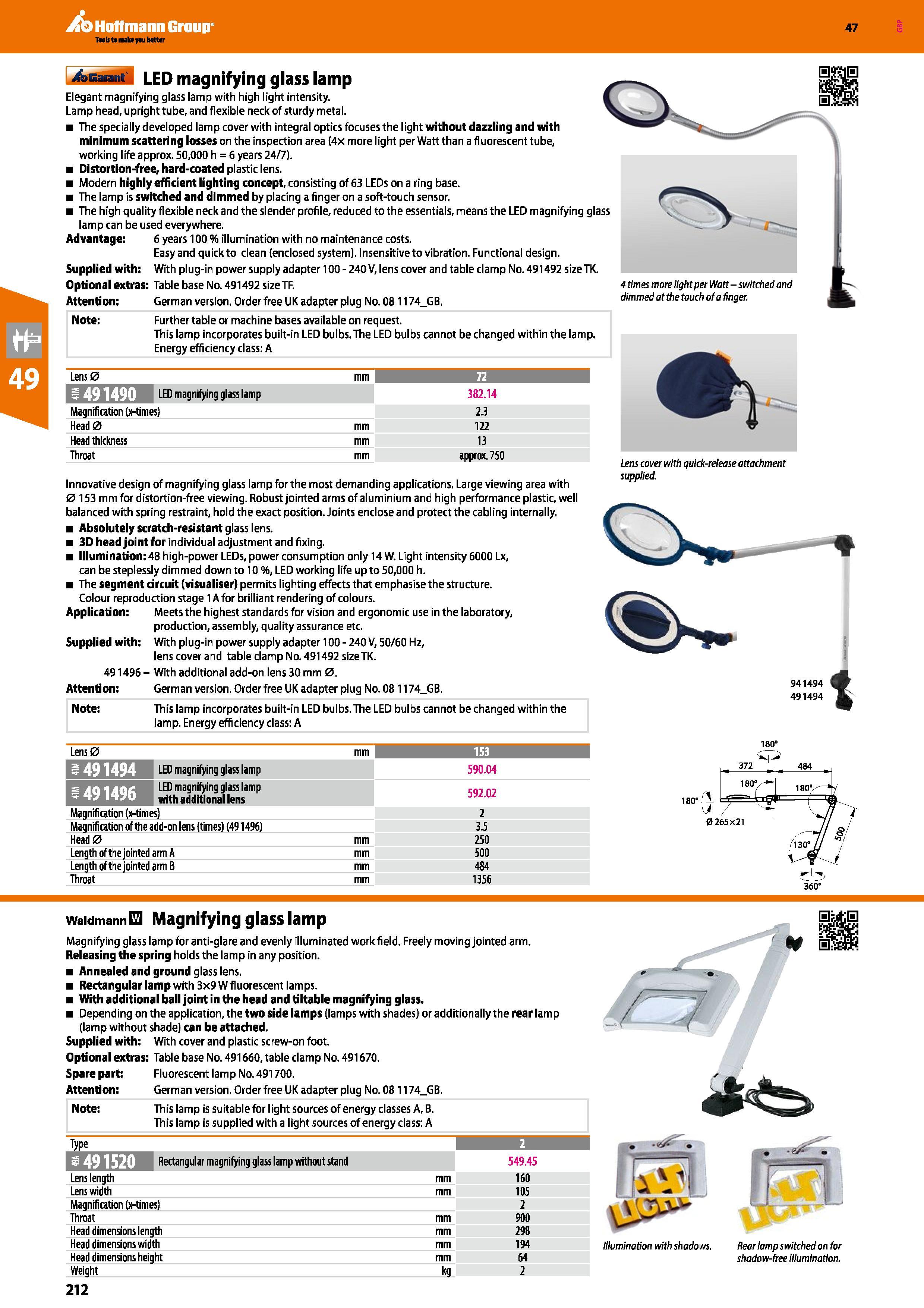

Hoffmann Group 47 LED magnifying glass lamp Elegant magnifying glass lamp with high light intensity. Lamp head, upright tube, and flexible neck of sturdy metal. The specially developed lamp cover with integral optics focuses the light without dazzling and with minimum scattering losses on the inspection area (4x more light per Watt than a fluorescent tube, working life approx. 50,000 h = 6 years 24/7). Distortion-free, hard-coated plastic lens. Modern highly efficient lighting concept, consisting of 63 LEDs on a ring base. The lamp is switched and dimmed by placing a finger on a soft-touch sensor. The high quality flexible neck and the slender profile, reduced to the essentials, means the LED magnifying glass lamp can be used everywhere. Advantage: 6 years 100% illumination with no maintenance costs. Easy and quick to clean (enclosed system). Insensitive to vibration. Functional design. Supplied with: With plug-in power supply adapter 100- 240 V, lens cover and table clamp No. 491492 sizeTK. Optional extras: Table base No. 491492 sizeTF. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: Further table or machine bases available on request. This lamp incorporates built-in LED bulbs.The LED bulbs cannot be changed within the lamp. Energy efficiency class: A 4 times more light per Watt- switched and dimmed at the touch of a finger. Lens0 LED magnifying glass lamp Magnification (x-times) Head0 Head thickness Throat mm 382.14 2.3 122 13 approx. 750 Innovative design of magnifying glass lamp for the most demanding applications. Large viewing area with 0 153 mm for distortion-free viewing. Robust jointed arms of aluminium and high performance plastic, well balanced with spring restraint, hold the exact position. Joints enclose and protect the cabling internally. Absolutely scratch-resistant glass lens. 3D head joint for individual adjustment and fixing. Illumination: 48 high-power LEDs, power consumption only 14W. Light intensity 6000 Lx, can be steplessly dimmed down to 10 %, LED working life up to 50,000 h. The segment circuit (visualiser) permits lighting effects that emphasise the structure. Colour reproduction stage 1 Afor brilliant rendering of colours. Application: Meets the highest standards for vision and ergonomic use in the laboratory, production, assembly, quality assurance etc. Supplied with: With plug-in power supply adapter 100 - 240 V, 50/60 Mz, lens cover and table clamp No. 491492 sizeTK. 491496 - With additional add-on lens 30 mm 0. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: This lamp incorporates built-in LED bulbs.The LED bulbs cannot be changed within the lamp. Energy efficiency class: A Lens cover with quick-release attachmen t supplied. 941494 491494 t Lens0 mm 153 I LED magnifying glass lamp 590.04 WTT1TT LED magnifying glass lamp additional lens 592.02 Magnification (x-times) 2 Magnification of the add-on lens (times) (491496) 3.5 Head0 mm 250 Length of the jointed arm A mm 500 Length of the jointed arm B mm 484 Throat mm 1356 Waldmann M Magnifying glass lamp Magnifying glass lamp for anti-glare and evenly illuminated work field. Freely moving jointed arm. Releasing the spring holds the lamp in any position. Annealed and ground glass lens. Rectangular lamp with 3x9W fluorescent lamps. With additional ball joint in the head and tiltable magnifying glass. Depending on the application, the two side lamps (lamps with shades) or additionally the rear lamp (lamp without shade) can be attached. Supplied with: With cover and plastic screw-on foot. Optional extras: Table base No. 491660, table clamp No. 491670. Spare part: Fluorescent lamp No. 491700. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: This lamp is suitable for light sources of energy classes A, B. This lamp is supplied with a light sources of energy class: A Type Rectangular magnifying glass lamp without stand 549.45 Lens length mm 160 Lens width mm 105 Magnification (x-times) 2 Throat mm 900 Head dimensions length mm 298 Head dimensions width mm 194 Head dimensions height mm 64 Weight kg 2 212 Illumination with shadows. Rear lamp switched on for shadow-free illumination.
