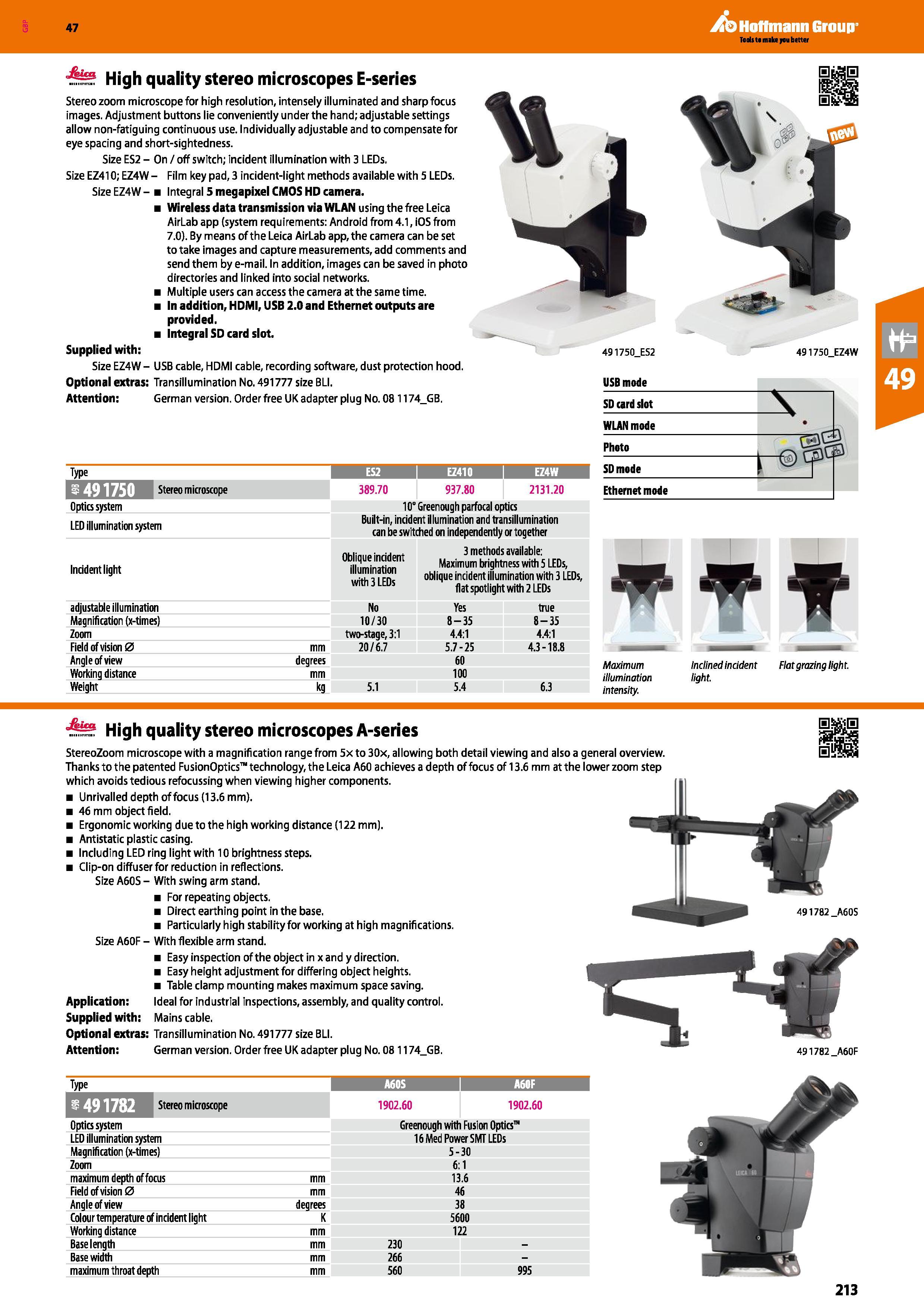

47 High quality stereo microscopes E-series Stereo zoom microscope for high resolution, intensely illuminated and sharp focus images. Adjustment buttons lie conveniently under the hand; adjustable settings allow non-fatiguing continuous use. Individually adjustable and to compensate for eye spacing and short-sightedness. Size ES2 - On / off switch; incident illumination with 3 LEDs. Size EZ410; EZ4W - Film key pad, 3 incident-light methods available with 5 LEDs. Size EZ4W - Integral 5 megapixel CMOS HD camera. Wireless data transmission via WLAN using the free Leica AirLabapp (system requirements: Android from 4.1, iOS from 7.0). By means of the Leica AirLab app,the camera can be set to take images and capture measurements, add comments and send them by e-mail. In addition, images can be saved in photo directories and linked into social networks. Multiple users can access the camera at the same time. In addition, HDMI, USB 2.0 and Ethernet outputs are provided. Integral SD card slot. Supplied with: Size EZ4W - USB cable, HDMI cable, recording software, dust protection hood. Optional extras: Transillumination No. 491777 size BLI. Attention: German version. Order free UK adapter plug No. 081174_GB. As) Hoffmann Group Type Stereo microscope Optics system LED illumination system Incident light adjustable illumination Magnification (x-times) Zoom Field of vision 0 Angle of view Working distance Weight 389.70 937.80 2131.20 10° Greenough parfocal optics Built-in, incident illumination and transillumination can be switched on independently or together Obligue incident illumination with 3 LEDs 3 methods available: Maximum brightness with 5 LEDs, obligue incident illumination with 3 LI flat spotlight with 2 LEDs No Yes true 10/30 8-35 8-35 two-stage, 3:1 4.4:1 4.4:1 mm 20/6.7 5.7-25 4.3-18.8 degrees 60 mm 100 kg 5.1 5.4 6.3 Inclined incident Flat grazing light, light. High quality stereo microscopes A-series StereoZoom microscope with a magnification range from 5x to 30x, allowing both detail viewing and also a general overview. Thanks to the patented FusionOptics technology, the Leica A60 achieves a depth of focus of 13.6 mm at the lower zoom step which avoids tedious refocussing when viewing higher components. Unrivalled depth of focus (13.6 mm). 46 mm object field. Ergonomic working due to the high working distance (122 mm). Antistatic plastic casing. Including LED ring light with 10 brightness steps. Clip-on diffuser for reduction in reflections. Size A60S - With swing arm stand. For repeating objects. Direct earthing point in the base. Particularly high stability for working at high magnifications. Size A60F - With flexible arm stand. Easy inspection of the object in x and y direction. Easy height adjustment for differing object heights. Table clamp mounting makes maximum space saving. Application: Ideal for industrial inspections, assembly, and quality control. Supplied with: Mains cable. Optional extras: Transillumination No. 491777 size BLI. Attention: German version. Order free UK adapter plug No. 081174_GB. Type A60S I A60F I Stereo microscope 1902.60 1902.60 Optics system Greenough with Fusion Optics” LED illumination system 16 Med Power SMT LEDs Magnification (x-times) 5-30 Zoom 6:1 maximum depth of focus mm 13.6 Field of vision 0 mm 46 Angle of view degrees 38 Colour temperature of incident light K 5600 Working distance mm 122 Base length mm 230 Base width mm 266 maximum throat depth mm 560 995 213
