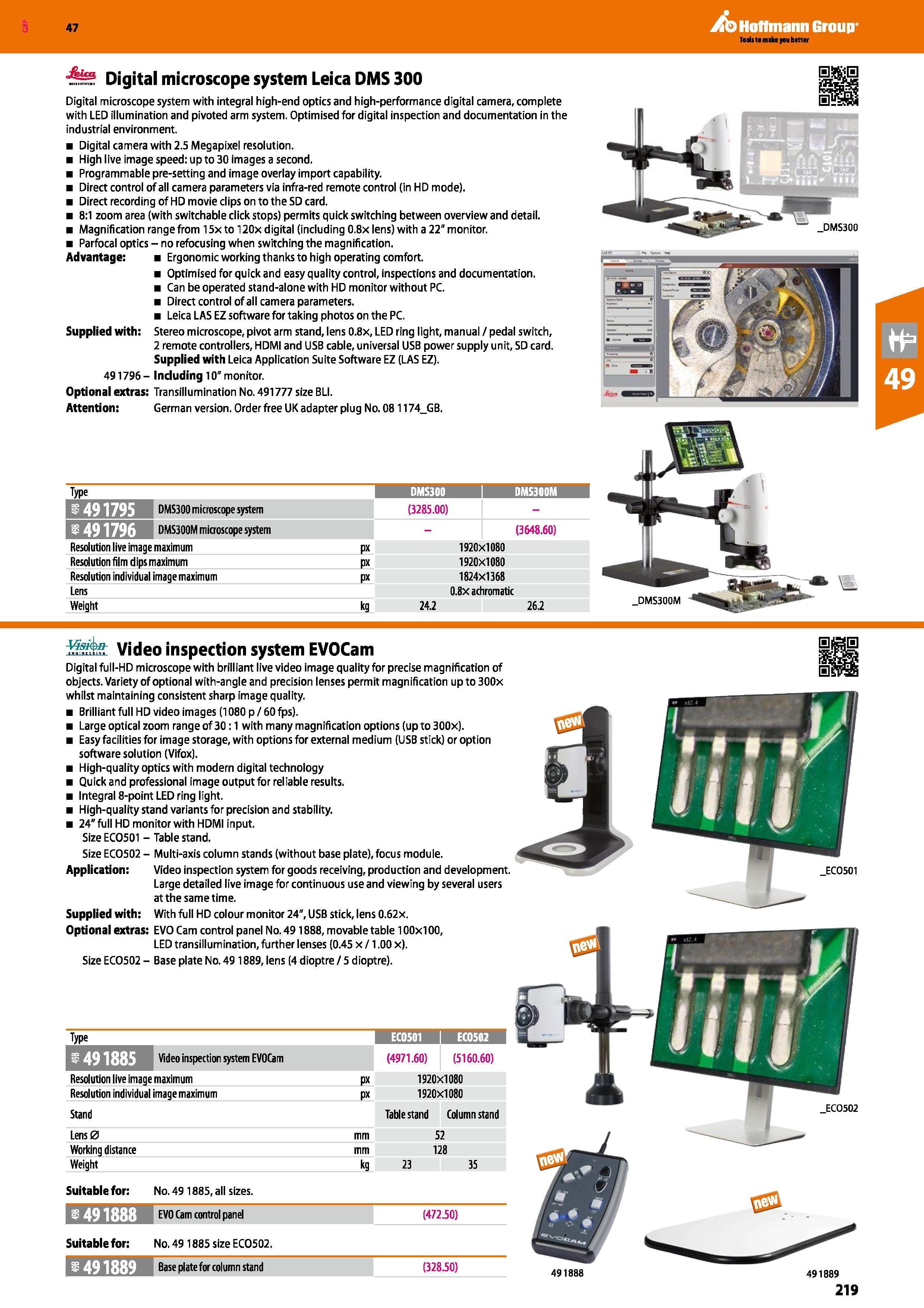

47 Digital microscope system Leica DMS 300 Digital microscope system with integral high-end optics and high-performance digital camera, complete with LED illumination and pivoted arm system. Optimised for digital inspection and documentation in the industrial environment. Digital camera with 2.5 Megapixel resolution. High live image speed: up to 30 images a second. Programmable pre-setting and image overlay import capability. Direct control of all camera parameters via infra-red remote control (in HD mode). Direct recording of HD movie clips on to the SD card. 8:1 zoom area (with switchable click stops) permits quick switching between overview and detail. Magnification range from 15x to 120x digital (including 0.8x lens) with a 22" monitor. Parfocal optics - no refocusing when switching the magnification. Advantage: Ergonomic working thanks to high operating comfort. Optimised for quick and easy quality control, inspections and documentation. Can be operated stand-alone with HD monitor without PC. Direct control of all camera parameters. Leica LAS EZ software for taking photos on the PC. Supplied with: Stereo microscope, pivot arm stand, lens 0.8x, LED ring light, manual / pedal switch, 2 remote controllers, HDMI and USB cable, universal USB power supply unit, SD card. Supplied with Leica Application Suite Software EZ (LAS EZ). 491796- Including 10" monitor. Optional extras: Transillumination No. 491777 size BLI. Attention: German version. Order free UK adapter plug No. 081174_GB. As) Hoffmann Group Type DMS300 1 DMS300M DMS300 microscope system (3285.00) DMS300M microscope system (3648.60) Resolution live image maximum px 1920x1080 Resolution film dips maximum px 1920x1080 Resolution individual image maximum px 1824x1368 Lens 0.8x achromatic Weight kg 24.2 26.2 _DMS300M Video inspection system EVOCam Visi L Digital full-HD microscope with brilliant live video image quality for precise magnification of objects. Variety of optional with-angle and precision lenses permit magnification up to 300x whilst maintaining consistent sharp image quality. Brilliant full HD video images (1080 p/60fps). Large optical zoom range of 30:1 with many magnification options (up to 300x). Easy facilities for image storage, with options for external medium (USB stick) or option software solution (Vifox). High-quality optics with modern digital technology Quick and professional image output for reliable results. Integral 8-point LED ring light. High-quality stand variants for precision and stability. 24" full HD monitor with HDMI input. Size EC0501 - Table stand. Size EC0502 - Multi-axis column stands (without base plate), focus module. Application: Video inspection system for goods receiving, production and development. Large detailed live image for continuous use and viewing by several users at the same time. Supplied with: With full HD colour monitor 24", USB stick, lens 0.62x. Optional extras: EVO Cam control panel No. 491888, movable table 100x100, LED transillumination, further lenses (0.45 x /1.00 x). Size EC0502 - Base plate No. 49 1889, lens (4 dioptre / 5 dioptre). Type 1 EC0501 EC0302 f Video inspection system EVOCam (4971.60) (5160.60) Resolution live image maximum px 1920x1080 Resolution individual image maximum px 1920x1080 Stand Table stand Column stand Lens0 mm 52 Working distance mm 128 Weight kg 23 35 Suitable for: No. 49 1885, all sizes. EVO Cam control panel (472.50) Suitable for: No. 49 1885 size EC0502. g491889 Base plate for column stand (328.50) 491888 491889 219 EC0501
