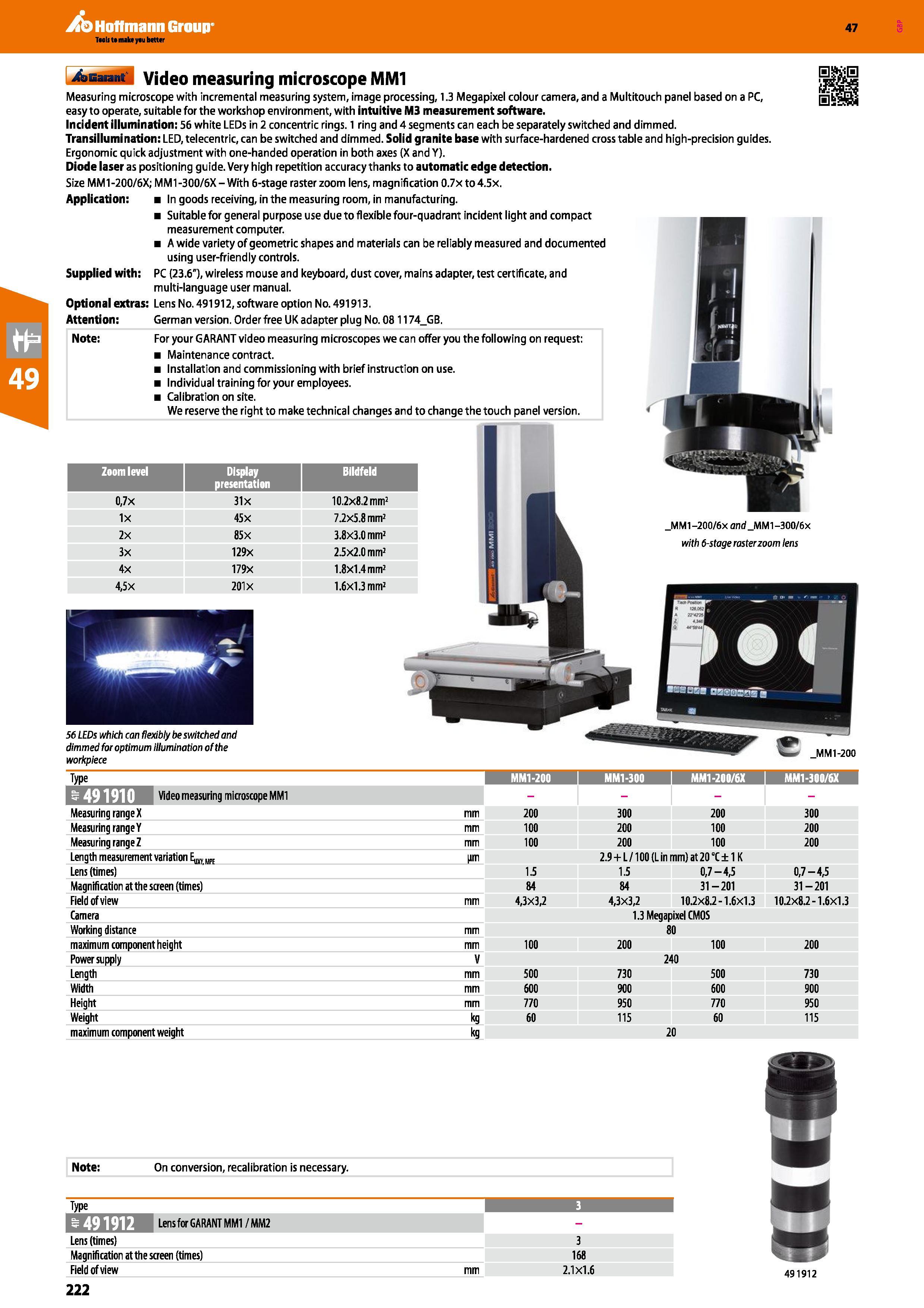

Hoffmann Group Type I MM1-200 MM1-300 ; MM1-200/6X MM1-300/6X rUILjTn Video measuring microscope MM1 - Measuring range X mm 200 300 200 300 Measuring rangeY mm 100 200 100 200 Measuring range 2 mm 100 200 100 200 Length measurement variation E , W im 2.9+L/100 (Lin mm)at20°C± 1 K Lens (times) 1J 1.5 0,7-4,5 0,7-4,5 Magnification at the screen (times) 84 84 31-201 31-201 Field of view mm 4,3x3,2 4,3x3,2 10.2x8.2-1.6x1.3 10.2x8.2-1.6x1.3 Camera 1.3 Megapixel CMOS Working distance mm 80 maximum component height mm 100 200 100 200 Power supply V 240 Length mm 500 730 500 730 Width mm 600 900 600 900 Height mm 770 950 770 950 Weight kg 60 115 60 115 maximum component weight kg 20 Note: On conversion, recalibration is necessary. Type Lens for GARANT MM1/MM2 - Lens (times) 3 Magnification at the screen (times) 168 Field of view mm 2.1x1.6 4ana M Video measuring microscope MM1 Measuring microscope with incremental measuring system, image processing, 1.3 Megapixel colour camera, and a Multitouch panel based on a PC, easy to operate, suitable for the workshop environment, with intuitive M3 measurement software. Incident illumination: 56 white LEDs in 2 concentric rings. 1 ring and 4 segments can each be separately switched and dimmed. Transillumination: LED, telecentric, can be switched and dimmed. Solid granite base with surface-hardened cross table and high-precision guides. Ergonomic quick adjustment with one-handed operation in both axes (X and Y). Diode laser as positioning guide. Very high repetition accuracy thanks to automatic edge detection. Size MM1-200/6X; MM1-300/6X-With 6-stage raster zoom lens, magnification 0.7x to4.5x. Application: In goods receiving, in the measuring room, in manufacturing. Suitable for general purpose use due to flexible four-quadrant incident light and compact measurement computer. A wide variety of geometric shapes and materials can be reliably measured and documented using user-friendly controls. Supplied with: PC (23.6"), wireless mouse and keyboard, dust cover, mains adapter, test certificate, and multi-language user manual. Optional extras: Lens No. 491912, software option No. 491913. Attention: German version. Order free UK adapter plug No. 081174_GB. Note: For your GARANT video measuring microscopes we can offer you the following on request: Maintenance contract. Installation and commissioning with brief instruction on use. Individual training for your employees. Calibration on site. We reserve the right to make technical changes and to change the touch panel version. Zoom level Display presentation Bildfeld 0,7x 31x 10.2x8.2 mm2 1x 45x 7.2X5.8 mm2 2x 85x 3.8x3.0 mm2 3x 129x 2.5x2.0 mm2 4x 179x 1.8x1.4 mm2 4,5x 201 x 1.6x1 J mm2 _MM1-200/6x and _MM1-300/6x with 6-stage raster zoom lens 56 LEDs which can flexibly be switched and dimmed for optimum illumination of the workpiece 491912
