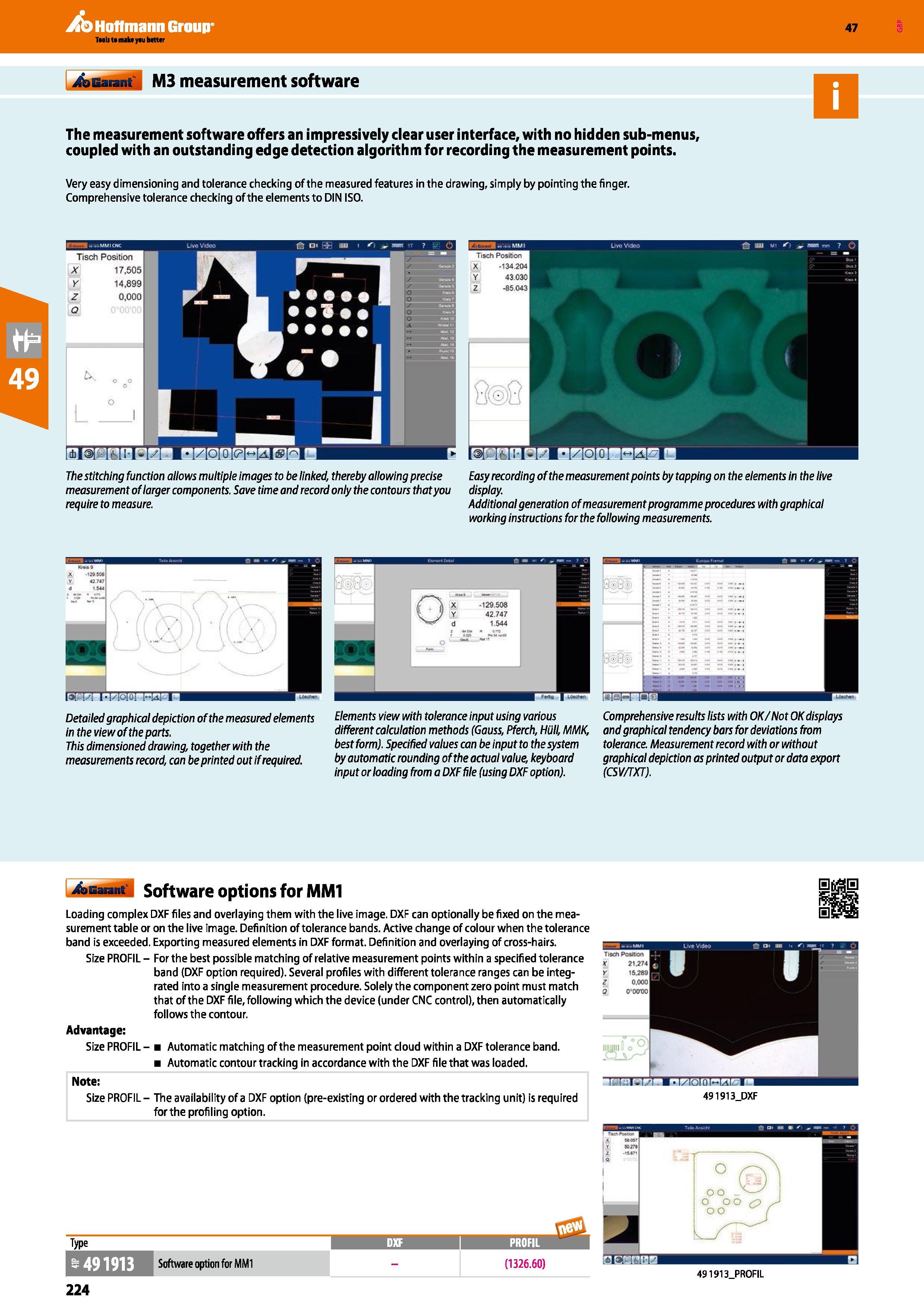

Hoffmann Group XbGarant M3 measurement software 47 The measurement software offers an impressively clear user interface, with no hidden sub-menus, coupled with an outstanding edge detection algorithm for recording the measurement points. Very easy dimensioning and tolerance checking of the measured features in the drawing, simply by pointing the finger. Comprehensive tolerance checking of the elements to DIN ISO. The stitching function allows multiple images to be linked, thereby allowing precise measurement of larger components. Save time and record only the contours that you require to measure. Easy recording of the measurement points by tapping on the elements in the live display. Additional generation of measurement programme procedures with graphical working instructions for the following measurements. Detailed graphical depiction of the measured elements in the view of the parts. This dimensioned drawing, together with the measurements record, can be printed out if required. Elements view with tolerance input using various different calculation methods (Gauss, Pferch, Hull, MMK, best form). Specified values can be input to the system by automatic rounding of the actual value, keyboard input or loading from a DXF file (using DXF option). Comprehensive results lists with OK/Not OK displays and graphical tendency bars for deviations from tolerance. Measurement record with or without graphical depiction as printed output or data export (CSV/TXT). Garant Software options for MM1 Loading complex DXF files and overlaying them with the live image. DXF can optionally be fixed on the measurement table or on the live image. Definition of tolerance bands. Active change of colour when the tolerance band is exceeded. Exporting measured elements in DXF format. Definition and overlaying of cross-hairs. Size PROFIL - For the best possible matching of relative measurement points within a specified tolerance band (DXF option required). Several profiles with different tolerance ranges can be integrated into a single measurement procedure. Solely the component zero point must match that of the DXF file, following which the device (under CNC control), then automatically follows the contour. Advantage: Size PROFIL - Automatic matching of the measurement point cloud within a DXF tolerance band. Automatic contour tracking in accordance with the DXF file that was loaded. Note: Size PROFIL - The availability of a DXF option (pre-existing or ordered with the tracking unit) is required for the profiling option. "T;;I_T T MOIOMaL-'I-491913_DXF i f r r'
