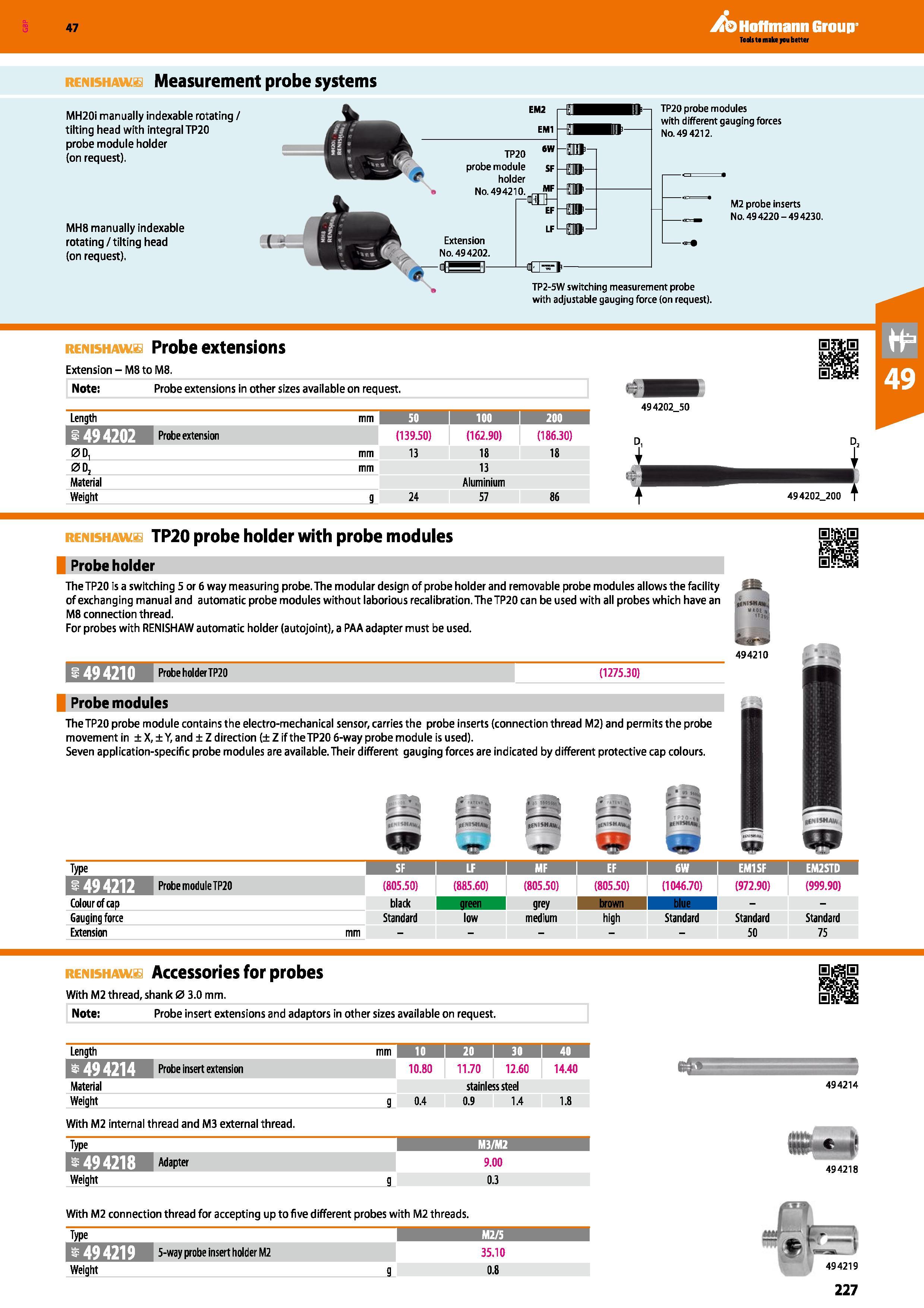

Hoffmann Group 47 Measurement probe systems MH20i manually indexable rotating / tilting head with integral TP20 probe module holder (on request). MH8 manually indexable rotating /tilting head (on request). HSl HEM -BDt-i -m- TP20 probe modules with different gauging forces No. 49 4212. M2 probe inserts No. 49 4220 - 49 4230. TP2-5W switching measurement probe with adjustable gauging force (on request). Probe extensions Extension - M8 to M8. Note: Probe extensions in other sizes available on request. Length mm 50 ioo 1 200 I 49 4202 (139.50) (162.90) (186.30) 0D, mm 13 18 18 0D2 mm 13 Material Aluminium Weight 9 24 57 86 494202_50 I 49 4202_200 TP20 probe holder with probe modules Probe holder TheTP20 is a switching 5 or 6 way measuring probe. The modular design of probeholder and removable probe modules allows the facility of exchanging manual and automatic probe modules without laborious recalibration. The TP20 can be used with all probes which have an M8 connection thread. For probes with RENISHAW automatic holder (autojoint), a PAA adapter must be used. HEZSIB Probe holder TP20 Probe modules (1275.30) The TP20 probe module contains the electro-mechanical sensor, carries the probe inserts (connection thread M2) and permits the probe movement in ± X, ± Y, and ± Z direction (± Z if theTP20 6-way probe module is used). Seven application-specific probe modules are available. Their different gauging forces are indicated by different protective cap colours. P ,f- HA . il' 'M W, nni>. Type HBBi 1 lf i MF 1 ef 1 6W 1 EM1SF I EM2STD I iXi'EHi H 1 >ro )e m(K e TP20 (805.50) (885.60) (805.50) (805.50) (1046.70) (972.90) (999.90) Colour of cap black afl grey brown blue Gauging force Standard low medium high Standard Standard Standard Extension mm - 50 75 renishawb Accessories for probes With M2 thread, shank 0 3.0 mm. Note: Probe insert extensions and adaptors in other sizes available on request. Length mm 20 30 40 Probe insert extension 10.80 11.70 12.60 14.40 Material stainless steel Weight g 0.4 0.9 1.4 1.8 With M2 internal thread and M3 external thread. Type M3/M2 M94218 Adapter 9.00 Weight g 0.3 With M2 connection thread for accepting up to five different probes with M2 threads. Type M2/5 494219 5-way probe insert holder M2 35.10 Weight g 0.8 494214 494218
