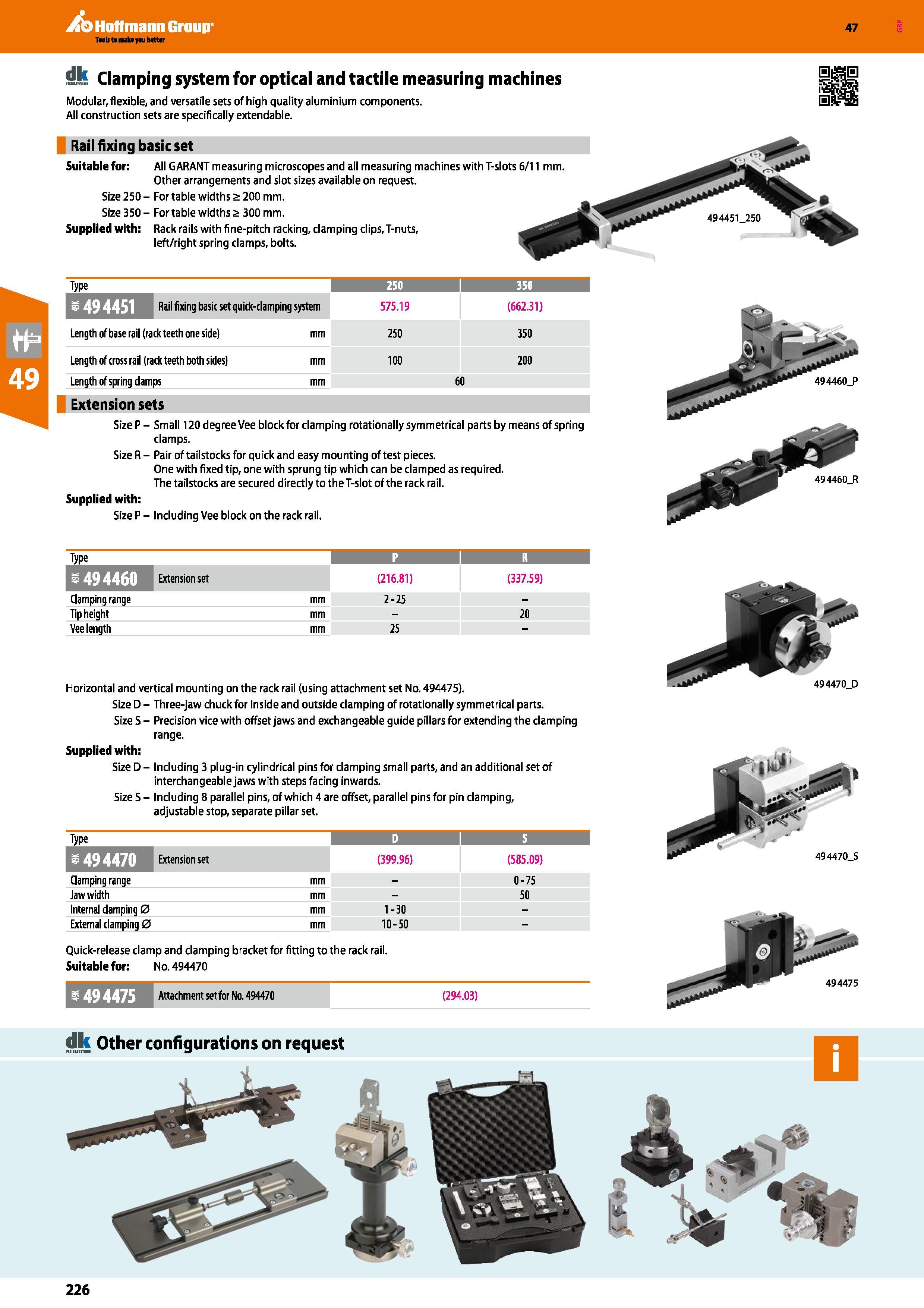

Hoffmann Group 47 < l Clamping system for optical and tactile measuring machines Modular, flexible, and versatile sets of high quality aluminium components. All construction sets are specifically extendable. Rail fixing basic set Suitable for: All GARANT measuring microscopes and all measuring machines with T-slots Other arrangements and slot sizes available on request. Size 250 - For table widths > 200 mm. Size 350 - For table widths s 300 mm. Supplied with: Rack rails with fine-pitch racking, clamping clips,T-nuts, left/right spring clamps, bolts. Type 250 1 350 1 Rail fixing basic set quick-damping system 575.19 (662.31) Length of base rail (rack teeth one side) mm 250 350 Length of cross rail (rack teeth both sides) mm 100 200 Length of spring damps mm 60 Extension sets Size P - Small 120 degree Vee block for clamping rotationally symmetrical parts by means of spring clamps. Size R - Pair of tailstocks for quick and easy mounting of test pieces. One with fixed tip, one with sprung tip which can be clamped as required. The tailstocks are secured directly to the T-slot of the rack rail. Supplied with: Size P - Including Vee block on the rack rail. i 49 4460 (216.81) (337.59) Clamping range mm 2-25 - Tip height mm - 20 Vee length mm 25 - Horizontal and vertical mounting on the rack rail (using attachment set No. 494475). Size D - Three-jaw chuck for inside and outside clamping of rotationally symmetrical parts. Size S - Precision vice with offset jaws and exchangeable guide pillars for extending the clamping range. Supplied with: Size D- Including 3 plug-in cylindrical pins for clamping small parts, and an additional set of interchangeable jaws with steps facing inwards. Size S - Including 8 parallel pins, of which 4 are offset, parallel pins for pin clamping, adjustable stop, separate pillar set. Type D I s 111 EMI Extension set (399.96) (585.09) Clamping range mm - 0-75 Jaw width mm - 50 Internal clamping 0 mm 1-30 - External damping 0 mm 10-50 - Quick-release clamp and clamping bracket for fitting to the rack rail. Suitable for: No. 494470 494475 Attachment set for No. 494470 (294.03) dk Other configurations on request HIIIiinTElE 494460_P 49 4460_R 49 4470_S 494475
