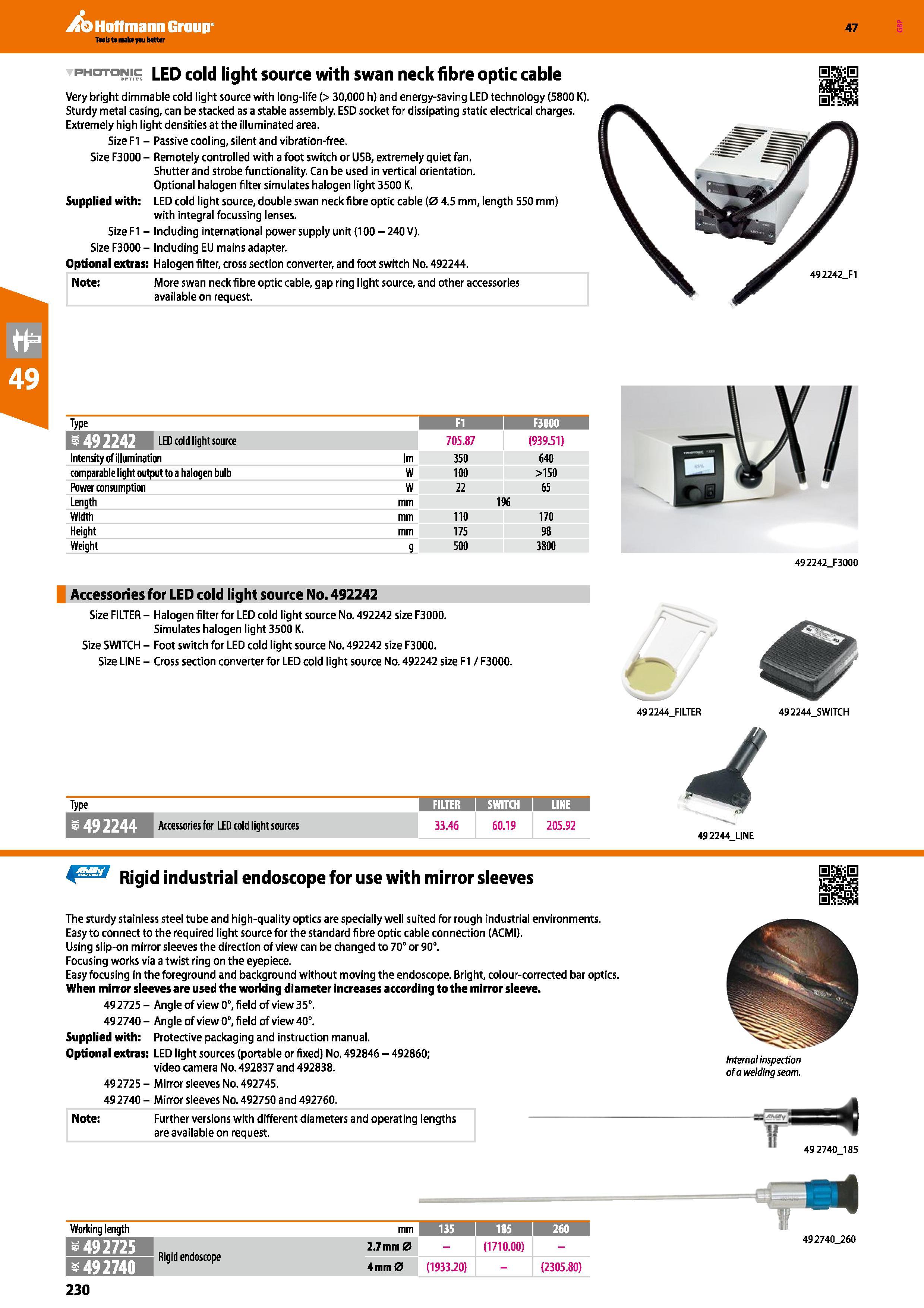

photon's LED cold light source with swan neck fibre optic cable Very bright dimmable cold light source with long-life (> 30,000 h) and energy-saving LED technology (5800 K). Sturdy metal casing, can be stacked as a stable assembly. ESD socket for dissipating static electrical charges. Extremely high light densities at the illuminated area. Size FI - Passive cooling, silent and vibration-free. Size F3000 - Remotely controlled with a foot switch or USB, extremely quiet fan. Shutter and strobe functionality. Can be used in vertical orientation. Optional halogen filter simulates halogen light 3500 K. Supplied with: LED cold light source, double swan neck fibre optic cable (0 4.5 mm, length 550 mm) with integral focussing lenses. Size FI - Including international power supply unit (100-240 V). Size F3000 - Including EU mains adapter. Optional extras: Halogen filter, cross section converter, and foot switch No. 492244. Note: More swan neck fibre optic cable, gap ring light source, and other accessories available on request. Type FI F3000 I LED cold liaht source 705.87 (939.51) Intensity of illumination Im 350 640 comparable light output to a halogen bulb W 100 >150 Power consumption W 22 65 Length mm 196 Width mm 110 170 Height mm 175 98 Weight g 500 3800 Hoffmann Group 492242_F1 492244_FILTER 49 2244_SWITCH 492244J.INE Accessories for LED cold light source No. 492242 Size FILTER - Halogen filter for LED cold light source No. 492242 size F3000. Simulates halogen light 3500 K. Size SWITCH - Foot switch for LED cold light source No. 492242 size F3000. Size LINE - Cross section converter for LED cold light source No. 492242 size FI / F3000. Type FILTER I SWITCH MI'M Accessories for LED cold light sources 33.46 60.19 205.92 4 Rigid industrial endoscope for use with mirror sleeves The sturdy stainless steel tube and high-quality optics are specially well suited for rough industrial environments. Easy to connect to the required light source for the standard fibre optic cable connection (ACMI). Using slip-on mirror sleeves the direction of view can be changed to 70° or 90°. Focusing works via a twist ring on the eyepiece. Easy focusing in the foreground and background without moving the endoscope. Bright, colour-corrected bar optics. When mirror sleeves are used the working diameter increases according to the mirror sleeve. 49 2725 - Angle of view 0°, field of view 35°. 492740 - Angle of view 0°, field of view 40°. Supplied with: Protective packaging and instruction manual. Optional extras: LED light sources (portable or fixed) No. 492846 - 492860; video camera No. 492837 and 492838. 492725 - Mirror sleeves No. 492745. 492740 - Mirror sleeves No. 492750 and 492760. Note: Further versions with different diameters and operating lengths are available on request. Working length mm 135 185 I 260 492725 PPM 2,7 mm 0 - (1710.00) - s 49 2740 1 4mm 0 (1933.20) - (2305.80) 230 Internal inspection of a welding seam. 492740_260
