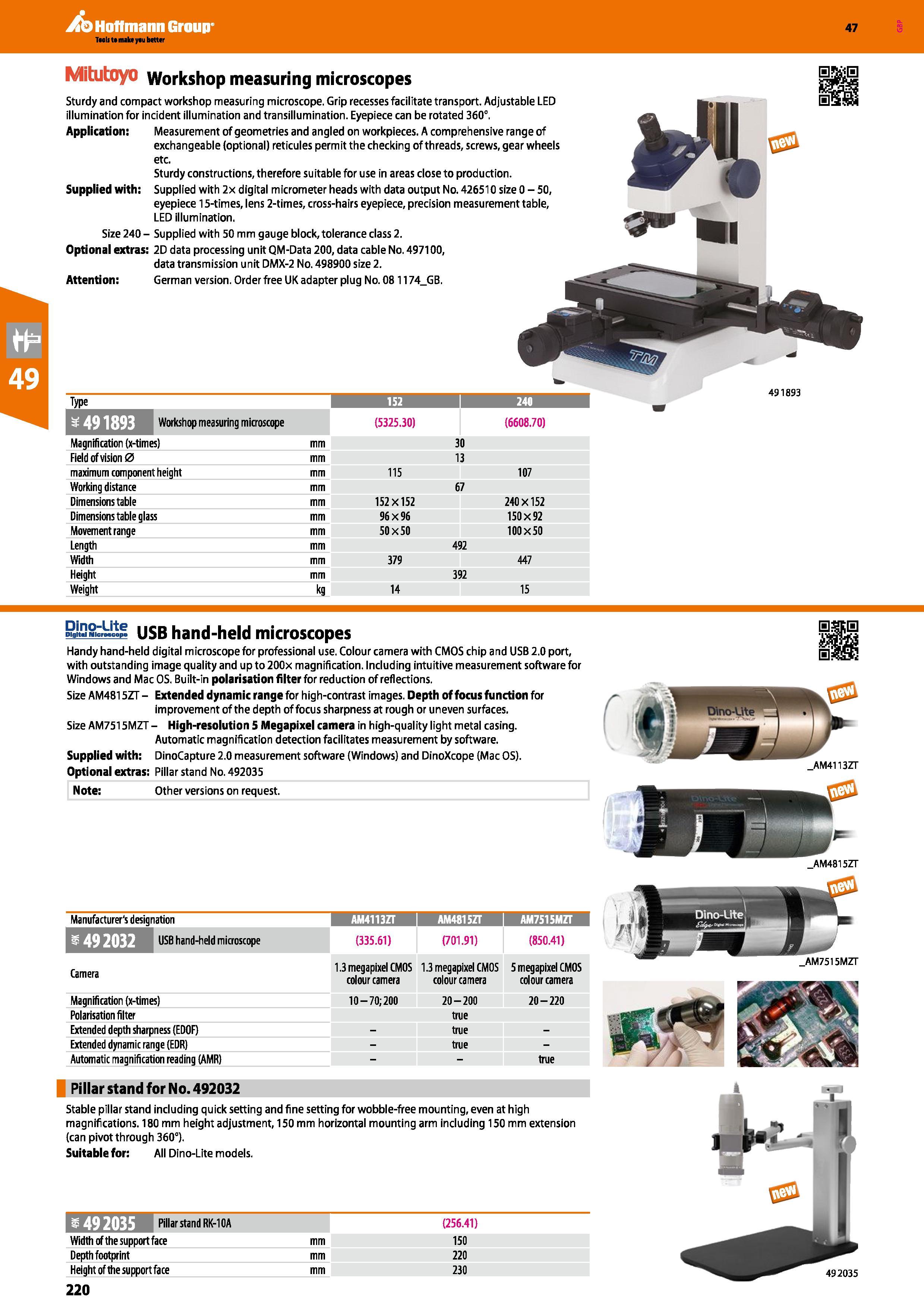

Hoffmann Group 47 Mitutoyo Workshop measuring microscopes Sturdy and compact workshop measuring microscope. Grip recesses facilitate transport. Adjustable LED illumination for incident illumination and transillumination. Eyepiece can be rotated 360°. Application: Measurement of geometries and angled on workpieces. A comprehensive range of exchangeable (optional) reticules permit the checking of threads, screws, gear wheels etc. Sturdy constructions, therefore suitable for use in areas close to production. Supplied with 2x digital micrometer heads with data output No. 426510 size 0 - 50, eyepiece 15-times, lens 2-times, cross-hairs eyepiece, precision measurement table, LED illumination. Size 240 - Supplied with 50 mm gauge block, tolerance class 2. Optional extras: 2D data processing unit QM-Data 200, data cable No. 497100, data transmission unit DMX-2 No. 498900 size 2. Attention: German version. Order free UK adapter plug No. 081174_GB. Supplied with: Type 152 I 240 1 ELihyicB Workshop measuring microscope (5325.30) (6608.70) Magnification (x-times) mm 30 Field of vision 0 mm 13 maximum component height mm 115 107 Working distance mm 67 Dimensions table mm 152X152 240X152 Dimensions table glass mm 96x96 150x92 Movement range mm 50x50 100x50 Length mm 492 Width mm 379 447 Height mm 392 Weight kg 14 15 491893 Digital Wcra cop USB hand-held microscopes Handy hand-held digital microscope for professional use. Colour camera with CMOS chip and USB 2.0 port, with outstanding image quality and up to 200x magnification. Including intuitive measurement software for Windows and Mac OS. Built-in polarisation filter for reduction of reflections. Size AM4815ZT - Extended dynamic range for high-contrast images. Depth of focus function for improvement of the depth of focus sharpness at rough or uneven surfaces. Size AM7515MZT - High-resolution 5 Megapixel camera in high-quality light metal casing. Automatic magnification detection facilitates measurement by software. Supplied with: DinoCapture 2.0 measurement software (Windows) and DinoXcope (Mac OS). Optional extras: Pillar stand No. 492035 _AM4113ZT Note: Other versions on request. ’Jhi iHr “38 J ; Manufacturer's designation j H AM4113ZT AM4815ZT AM7515MZT j USB hand-held microscope (335.61) (701.91) (850.41) Camera 1.3 megapixel CMOS colour camera 1.3 megapixel CMOS colour camera 5 megapixel CMOS colour camera Magnification (x-times) 10-70; 200 20-200 20 - 220 Polarisation filter true Extended depth sharpness (ED0F) - true - Extended dynamic range (EDR) - true - Automatic magnification reading (AMR) true Pillar stand for No. 492032 Stable pillar stand including quick setting and fine setting for wobble-free mounting, even at high magnifications. 180 mm height adjustment, 150 mm horizontal mounting arm including 150 mm extension (can pivot through 360°). Suitable for: All Dino-Lite models. Pillar stand RK-10A (256.41) Width of the support face mm 150 Depth footprint mm 220 Height of the support face mm 230 492035 220
