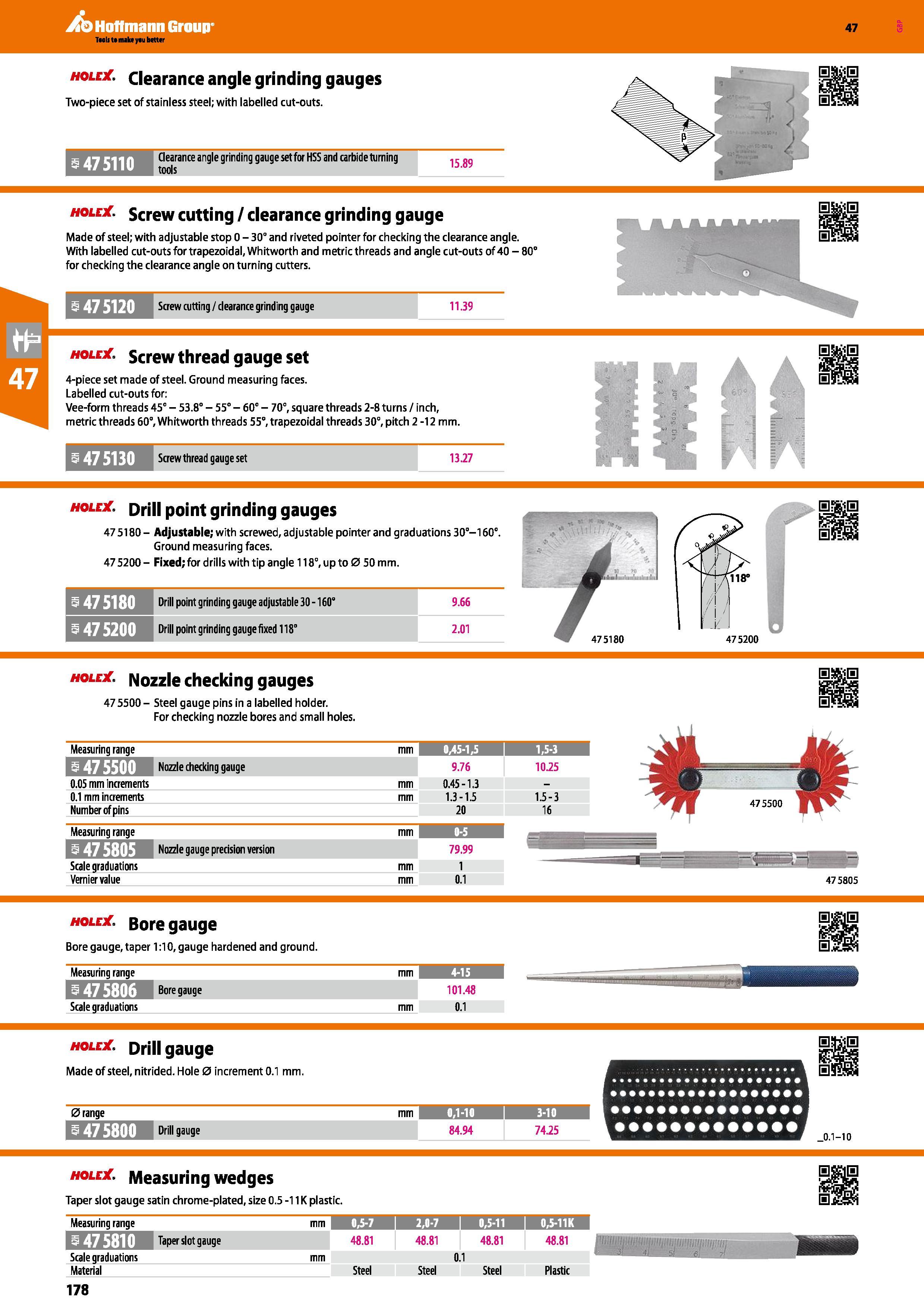

Hoffmann Group 47 hole , clearance angle grinding gauges Two-piece set of stainless steel; with labelled cut-outs. 475110 Clearance angle grinding gauge set for HSS and carbide turning tools 15.89 holex. Screw cutting / clearance grinding gauge Made of steel; with adjustable stop 0 - 30° and riveted pointer for checking the clearance angle. With labelled cut-outs for trapezoidal, Whitworth and metric threads and angle cut-outs of 40 - 80° for checking the clearance angle on turning cutters. 475120 Screw cutting / clearance grinding gauge 11.39 hole . Screw thread gauge set 4-piece set made of steel. Ground measuring faces. Labelled cut-outs for: Vee-form threads 45° - 53.8° - 55° - 60° - 70°, square threads 2-8 turns / inch, metric threads 60°, Whitworth threads 55°, trapezoidal threads 30°, pitch 2-12 mm. 475130 Screw thread gauge set 13.27 holex. Drill point grinding gauges 47 5180 - Adjustable; with screwed, adjustable pointer and graduations 30°-l 60°. Ground measuring faces. 475200- Fixed; for drills with tip angle 118°, up to 0 50 mm. 9.66 2.01 5475180 Drill point grinding gauge adjustable 30 -160° 5 47 5200 Drill point grinding gauge fixed 118° Brill hole . Nozzle checking gauges 47 5500 - Steel gauge pins in a labelled holder. For checking nozzle bores and small holes. Measuring range mm 0/45-1,5 i 1,5-3 EiXCTmH Nozzle checking gauge 9.76 10.25 0.05 mm increments mm 0.45-1.3 _ 0.1 mm increments mm 1.3-1.5 1.5-3 Number of pins 20 16 Measuring range 475805 Scale graduations Vernier value Nozzle gauge precision version mm 79.99 1 0.1 475805 hole . Bore gauge Bore gauge, taper 1:10, gauge hardened and ground. Measuring range mm 4-15 f 1 475806 M 101.48 Scale graduations mm 0.1 si hole . Drill gauge Made of steel, nitrided. Hole 0 increment 0.1 mm. 0 range mm t,i-it 3-10 I 475800 84.94 74.25 _0/l-10 hole . Measuring wedges Taper slot gauge satin chrome-plated, size 0.5 -11K plastic. 178 EpE 0j Measuring range mm 0,5-7 I 2,0-7 0,5-11 I 0,5-1 IK 1 I s 47 5810 hWMU 48.81 48.81 48.81 48.81 Scale graduations mm 0.1 Material Steel Steel Steel Plastic
