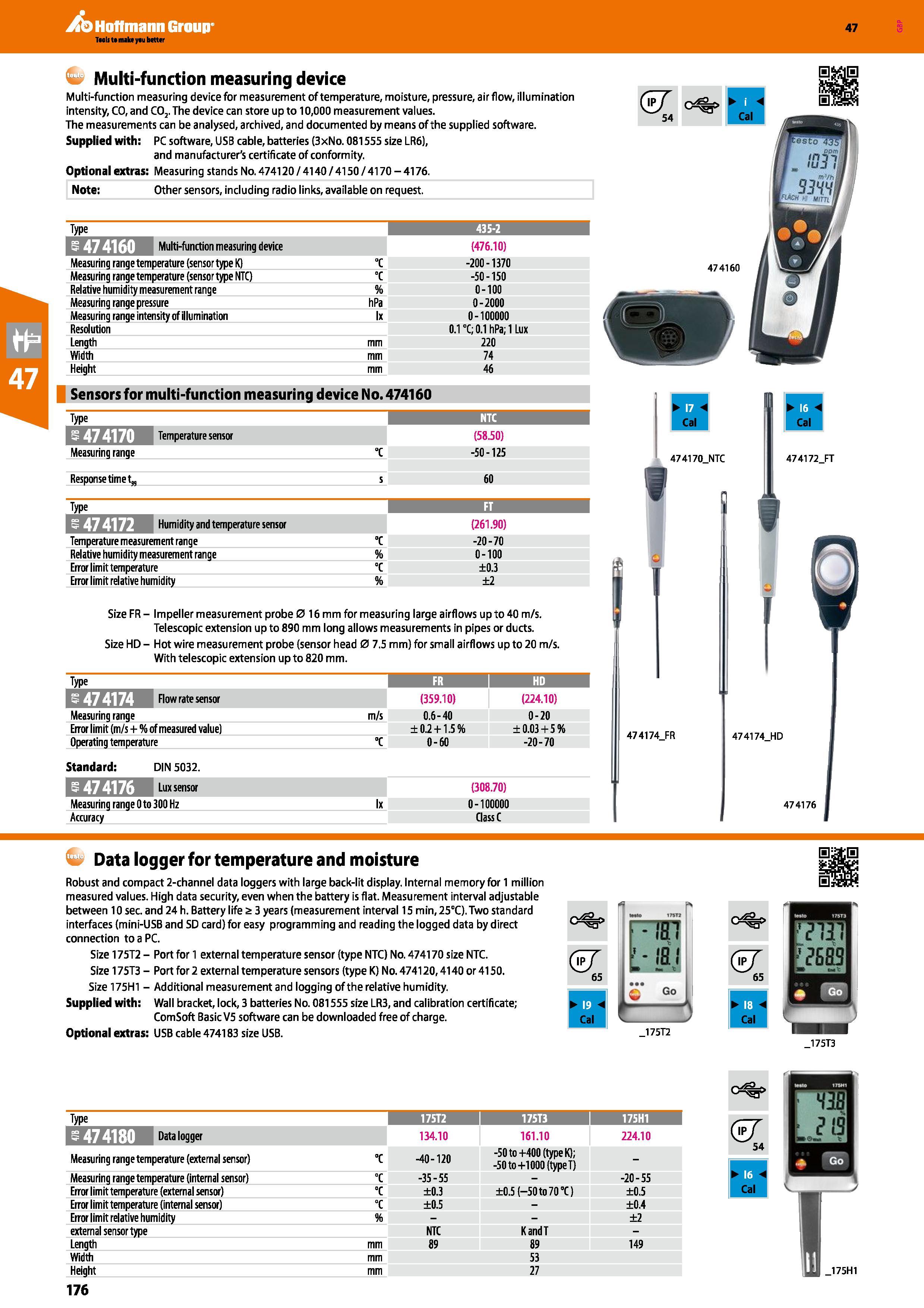

Hoffmann Group 47 Multi-function measuring device Multi-function measuring device for measurement of temperature, moisture, pressure, air flow, illumination intensity, CO, and C02. The device can store up to 10,000 measurement values. The measurements can be analysed, archived, and documented by means of the supplied software. Supplied with: PC software, USB cable, batteries (3xNo. 081555 size LR6), and manufacturer's certificate of conformity. Optional extras: Measuring stands No. 474120/4140/4150/4170-4176. Note: Other sensors, including radio links, available on request. Type 435-2 I Multi-function measuring device (476.10) Measuring range temperature (sensor type K) °C -200-1370 Measuring range temperature (sensor type NTC) "C -50-150 Relative humidity measurement range % 0-100 Measuring range pressure hPa 0-2000 Measuring range intensity of illumination Ix 0-100000 Resolution 0.1 °C; 0.1 hPa; 1 Lux Length mm 220 Width mm 74 Height mm 46 Sensors for multi-function measuring device No. 474160 Type 474170 Measuring range Temperature sensor (58.50) -50-125 Response time t„ 60 Type FT 1 j r/M Humidity and temperature sensor (261.90) Temperature measurement range "C -20-70 Relative humidity measurement range % 0-100 Error limit temperature "C ±0.3 Error limit relative humidity % ±2 Size FR- Impeller measurement probe 0 16 mm for measuring large airflows up to 40 m/s. Telescopic extension up to 890 mm long allows measurements in pipes or ducts. Size HD - Hot wire measurement probe (sensor head 0 7.5 mm) for small airflows up to 20 m/s. With telescopic extension up to 820 mm. Type 1 FR 1 HD 1 5 474174 (359.10) (224.10) Measuring range m/s 0.6-40 0-20 Error limit (m/s+% of measured value) ±0.2 + 1.5% ±0.03 + 5% Operating temperature "C 0-60 -20-70 Standard: DIN 5032. 5 474176 (308.70) Measuring range 0 to 300 Hz Ix 0-100000 Accuracy Class C 4 Data logger for temperature and moisture Robust and compact 2-channel data loggers with large back-lit display. Internal memory for 1 million measured values. High data security, even when the battery is flat. Measurement interval adjustable between 10 sec. and 24 h. Battery life s 3 years (measurement interval 15 min,25°C). Two standard interfaces (mini-USB and SD card) for easy programming and reading the logged data by direct connection to a PC. Size 175T2 - Port for 1 external temperature sensor (type NTC) No. 474170 size NTC. Size 175T3 - Port for 2 external temperature sensors (type K) No. 474120,4140 or 4150. Size 175H1 - Additional measurement and logging of the relative humidity. Supplied with: Wall bracket, lock, 3 batteries No. 081555 size LR3, and calibration certificate; ComSoft Basic V5 software can be downloaded free of charge. Optional extras: USB cable 474183 size USB. _175T3 Type 175T2 i 175T3 1 175H1 s 474180 134.10 161.10 224.10 Measuring range temperature (external sensor) "C -40-120 -50 to +400 (type K); -50 to +1000 (type T) - Measuring range temperature (internal sensor) °C -35-55 - -20-55 Error limit temperature (external sensor) "C ±0.3 ±0.5 (-50 to 70 °C) ±0.5 Error limit temperature (internal sensor) °c ±0.5 - ±0.4 Error limit relative humidity % ±2 external sensor type NTC KandT - Length mm 89 89 149 Width mm 53 Height mm 27 Cal 1 v 474170_NTC 47 4172J 474174 FR 474174 HD 474176
