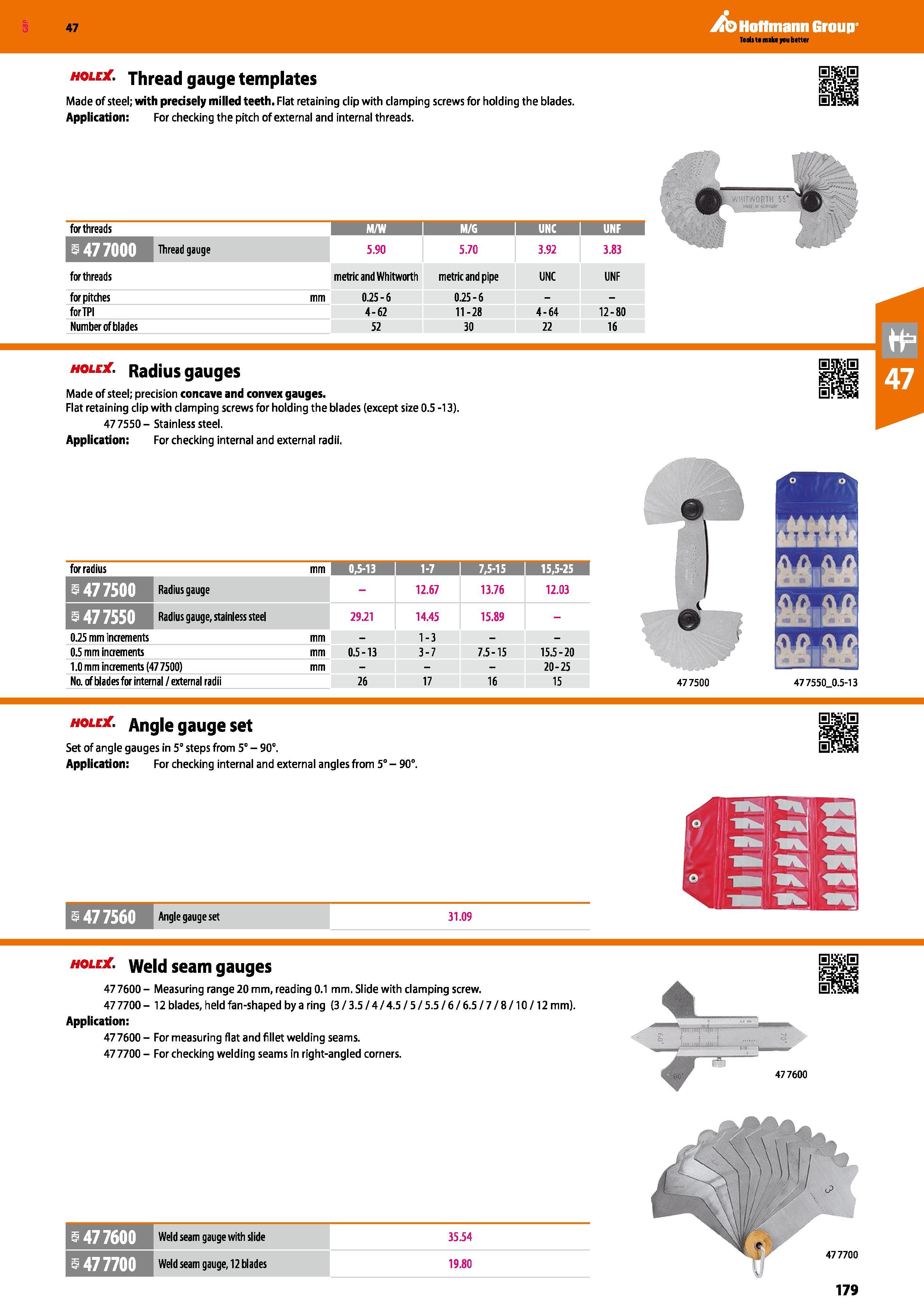

Hoffmann Group 47 hole . Thread gauge templates Made of steel; with precisely milled teeth. Flat retaining clip with clamping screws for holding the blades. Application: For checking the pitch of external and internal threads. for threads M/W M/G UNC I UNF 5 47 7000 5.90 5.70 3.92 3.83 for threads metric and Whitworth metric and pipe UNC UNF for pitches mm 0.25-6 0.25-6 for TPI 4-62 11-28 4-64 12-80 Number of blades 52 30 22 16 hole , Radius gauges Made of steel; precision concave and convex gauges. Flat retaining clip with clamping screws for holding the blades (except size 0.5 -13). 477550- Stainless steel. Application: For checking internal and external radii. for radius mm 0,5-13 1-7 i 7,5-15 I 15,5-25 477500 - 12.67 13.76 12.03 Radius gauge, stainless steel 29.21 14.45 15.89 - 0.25 mm increments mm - 1-3 0.5 mm increments mm 0.5-13 3-7 7.5-15 15.5-20 1.0 mm increments (477500) mm 20-25 No. of blades for internal / external radii 26 17 16 15 477500 477550_0.5-13 holex. Angle gauge set Set of angle gauges in 5° steps from 5° - 90°. Application: For checking internal and external angles from 5° - 90°. 477560 Angle gauge set 31.09 hole . Weld seam gauges 47 7600 - Measuring range 20 mm, reading 0.1 mm. Slide with clamping screw. 47 7700 - 12 blades, held fan-shaped by a ring (3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 8 /10 /12 mm). Application: 47 7600 - For measuring flat and fillet welding seams. 477700 - For checking welding seams in right-angled corners. 477600 5 477600 Weld seam gauge with slide 477700 Weld seam gauge, 12 blades 477700 179
