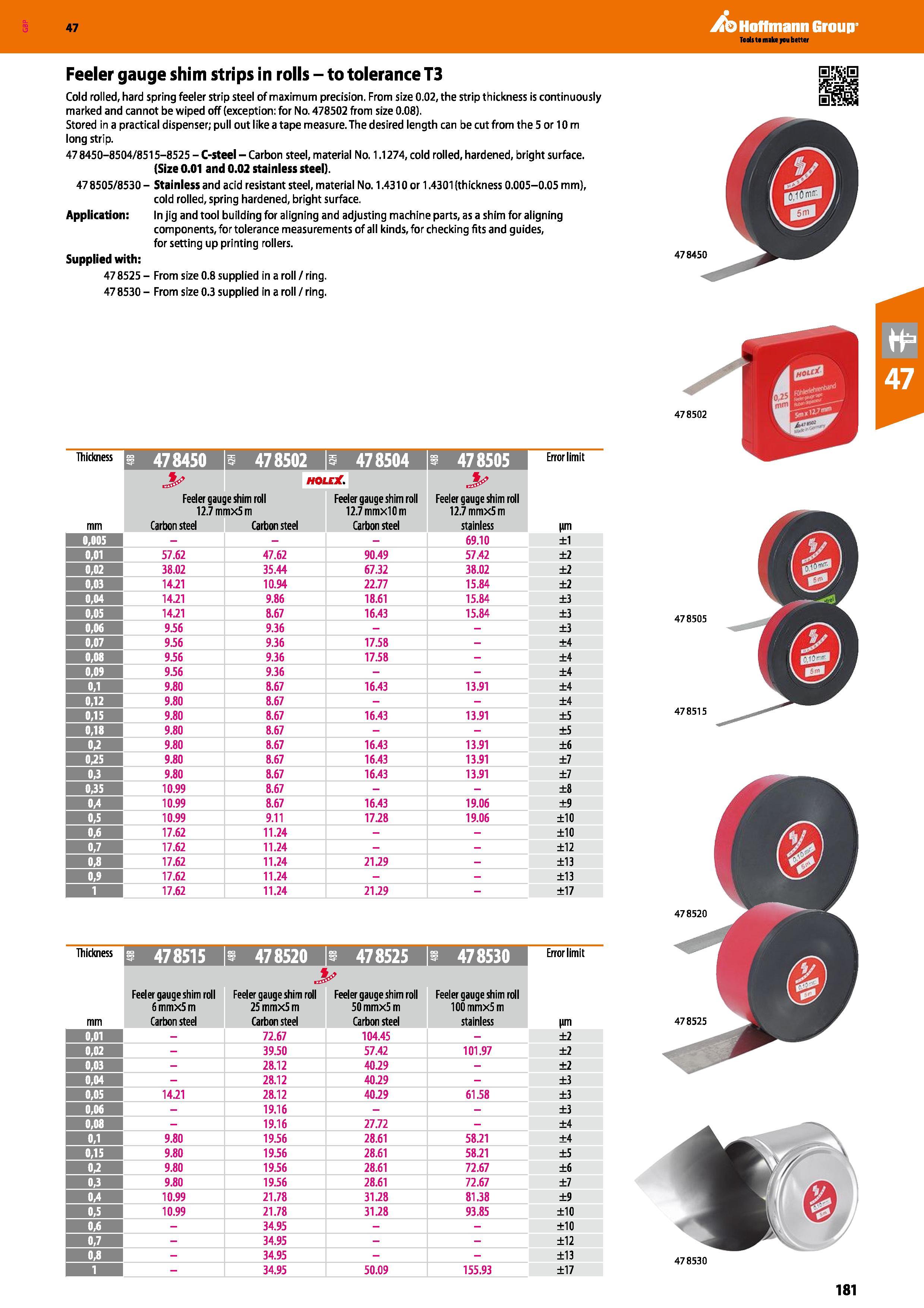

Hoffmann Group 47 Feeler gauge shim strips in rolls - to tolerance T3 Cold rolled, hard spring feeler strip steel of maximum precision. From size 0.02, the strip thickness is continuously marked and cannot be wiped off (exception: for No. 478502 from size 0.08). Stored in a practical dispenser; pull out like a tape measure. The desired length can be cut from the 5 or 10 m long strip. 47 8450-8504/8515-8525 - C-steel - Carbon steel, material No. 1.1274, cold rolled, hardened, bright surface. (Size 0.01 and 0.02 stainless steel). 47 8505/8530 - Stainless and acid resistant steel, material No. 1.4310 or 1.4301 (thickness 0.005-0.05 mm), cold rolled, spring hardened, bright surface. Application: In jig and tool building for aligning and adjusting machine parts, as a shim for aligning components, for tolerance measurements of all kinds, for checking fits and guides, for setting up printing rollers. Supplied with: 47 8525 - From size 0.8 supplied in a roll / ring. 478530 - From size 0.3 supplied in a roll / ring. Thickness i 478450 5 478502 i 478504 n 478505 Error limit mu/. Feeler gauge shim roll 12.7mmx5m Feeler gauge shim roll 12.7mmx10m Feeler gauge shim roll 12.7mmx5m mm Carbon steel Carbon steel Carbon steel stainless im 0,005 69.10 ±1 0,01 57.62 47.62 90.49 57.42 ±2 0,02 38.02 35.44 67.32 38.02 ±2 0,03 14.21 10.94 22.77 15.84 ±2 0,04 14.21 9.86 18.61 15.84 ±3 0,05 14.21 8.67 16.43 15.84 ±3 0,06 9.56 9.36 ±3 0,07 9.56 9.36 17.58 - ±4 0,08 9.56 9.36 17.58 - ±4 0,09 9.56 9.36 ±4 0,1 9.80 8.67 16.43 13.91 ±4 0,12 9.80 8.67 ±4 0,15 9.80 8.67 16.43 13.91 ±5 0,18 9.80 8.67 ±5 0,2 9.80 8.67 16.43 13.91 ±6 0,25 9.80 8.67 16.43 13.91 ±7 0,3 9.80 8.67 16.43 13.91 ±7 0,35 10.99 8.67 ±8 0,4 10.99 8.67 16.43 19.06 ±9 0,5 10.99 9.11 17.28 19.06 ±10 0,6 17.62 11.24 ±10 0,7 17.62 11.24 ±12 0,8 17.62 11.24 21.29 - ±13 0,9 17.62 11.24 ±13 1 17.62 11.24 21.29 - ±17 478505 478515 Thickness i 478515 i 478525 s 478530 Error limit Feeler gauge shim roll 6mmx5m Feeler gauge shim roll 25 mmx5 m Feeler gauge shim roll 50 mmx5 m Feeler gauge shim roll 100 mmx5 m mm Carbon steel Carbon steel Carbon steel stainless im 0,01 - 72.67 104.45 - ±2 0,02 - 39.50 57.42 101.97 ±2 0,03 - 28.12 40.29 - ±2 0,04 - 28.12 40.29 - ±3 0,05 14.21 28.12 40.29 61.58 ±3 0,06 - 19.16 ±3 0,08 - 19.16 27.72 - ±4 0,1 9.80 19.56 28.61 58.21 ±4 0,15 9.80 19.56 28.61 58.21 ±5 0,2 9.80 19.56 28.61 72.67 ±6 0,3 9.80 19.56 28.61 72.67 ±7 0/4 10.99 21.78 31.28 81.38 ±9 0,5 10.99 21.78 31.28 93.85 ±10 0,6 - 34.95 ±10 0,7 - 34.95 ±12 0,8 - 34.95 ±13 1 - 34.95 50.09 155.93 ±17 478450 478502 478520 478525 478530 181
