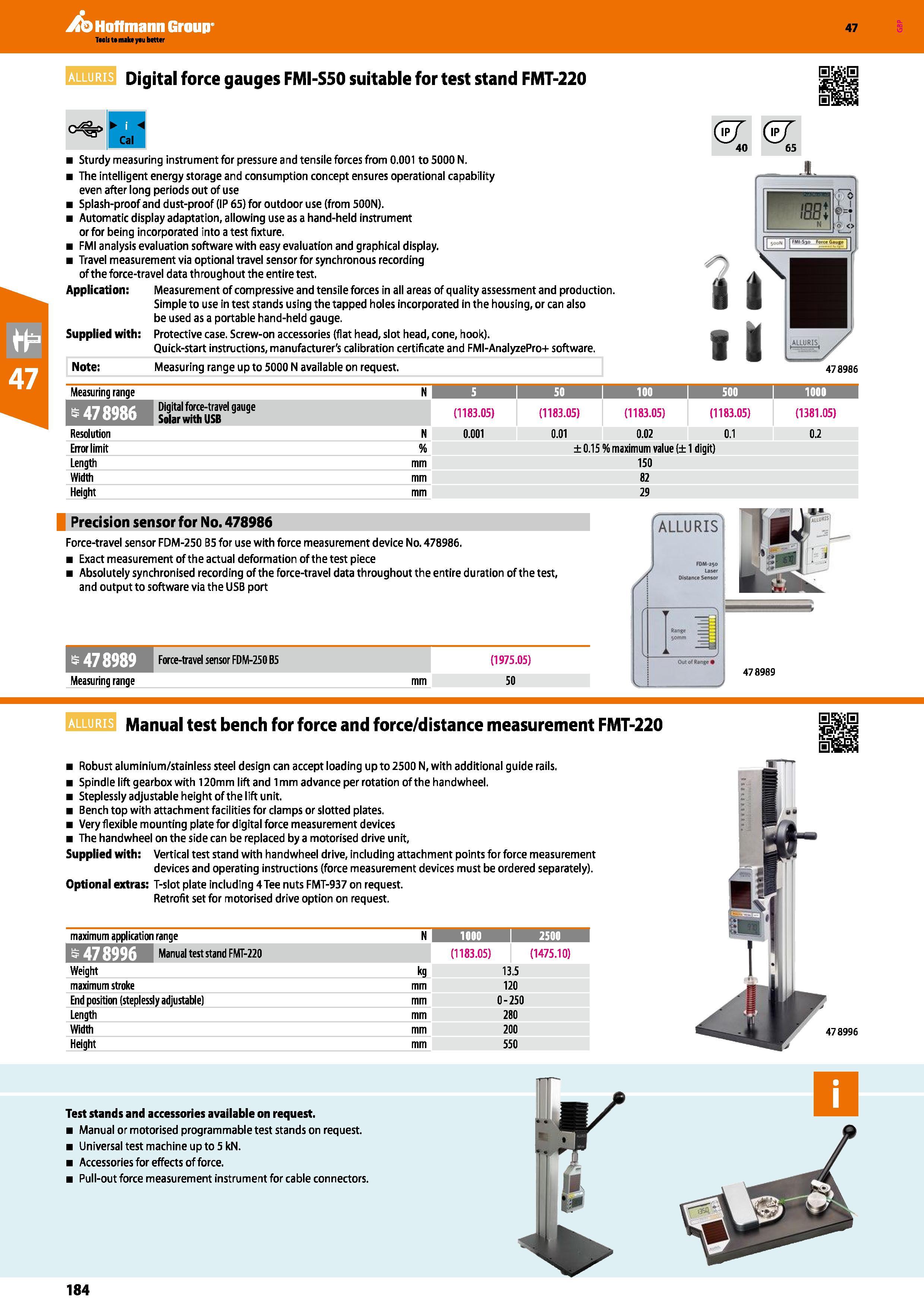

Hoffmann Group 47 ALLURIS Digital force gauges FMI-S50 suitable for test stand FMT-220 SSjftS li < Cal Sturdy measuring instrument for pressure and tensile forces from 0.001 to 5000 N. The intelligent energy storage and consumption concept ensures operational capability even after long periods out of use Splash-proof and dust-proof (IP 65) for outdoor use (from 500N). Automatic display adaptation, allowing use as a hand-held instrument or for being incorporated into a test fixture. FMI analysis evaluation software with easy evaluation and graphical display. Travel measurement via optional travel sensor for synchronous recording of the force-travel data throughout the entire test. & & 40 65 15 N I ooN Sjo Application: Supplied with: Note: Measurement of compressive and tensile forces in all areas of quality assessment and production Simple to use in test stands using the tapped holes incorporated in the housing, or can also be used as a portable hand-held gauge. Protective case. Screw-on accessories (flat head, slot head, cone, hook). Quick-start instructions, manufacturer's calibration certificate and FMI-AnalyzePro+ software. Measuring range up to 5000 N available on request. Measuring range 478986 Resolution Error limit Length Width Height Digital force-travel gauge Solar with USB N % mm (1183.05) 0.001 (1183.05) 0.01 (1183.05) ± 0.15 % maximum value (± 1 digit) 150 82 29 Precision sensor for No. 478986 Force-travel sensor FDM-250 B5 for use with force measurement device No. 478986. Exact measurement of the actual deformation of the test piece Absolutely synchronised recording of the force-travel data throughout the entire duration of the test, and output to software via the USB port ALLURIS A FQitoyl Force-travel sensor FDM-250 B5 (1975.05) Measuring range mm 50 j 478989 Manual test bench for force and force/distance measurement FMT-220 Robust aluminium/stainless steel design can accept loading up to 2500 N, with additional guide rails. Spindle lift gearbox with 120mm lift and 1mm advance per rotation of the handwheel. Steplessly adjustable height of the lift unit. Bench top with attachment facilities for clamps or slotted plates. Very flexible mounting plate for digital force measurement devices The handwheel on the side can be replaced by a motorised drive unit. Supplied with: Vertical test stand with handwheel drive, including attachment points for force measurement devices and operating instructions (force measurement devices must be ordered separately). Optional extras: T-slot plate including 4Tee nuts FMT-937 on request. Retrofit set for motorised drive option on request. ALLURIS maximum application range N 1000 1 2500 i Manual test stand FMT-220 (1183.05) (1475.10) Weight kg 13.5 maximum stroke mm 120 End position (steplessly adjustable) mm 0-250 Length mm 280 Width mm 200 Height mm 550 Test stands and accessories available on request. Manual or motorised programmable test stands on request. Universal test machine up to 5 kN. Accessories for effects of force. Pull-out force measurement instrument for cable connectors. 478996 184
