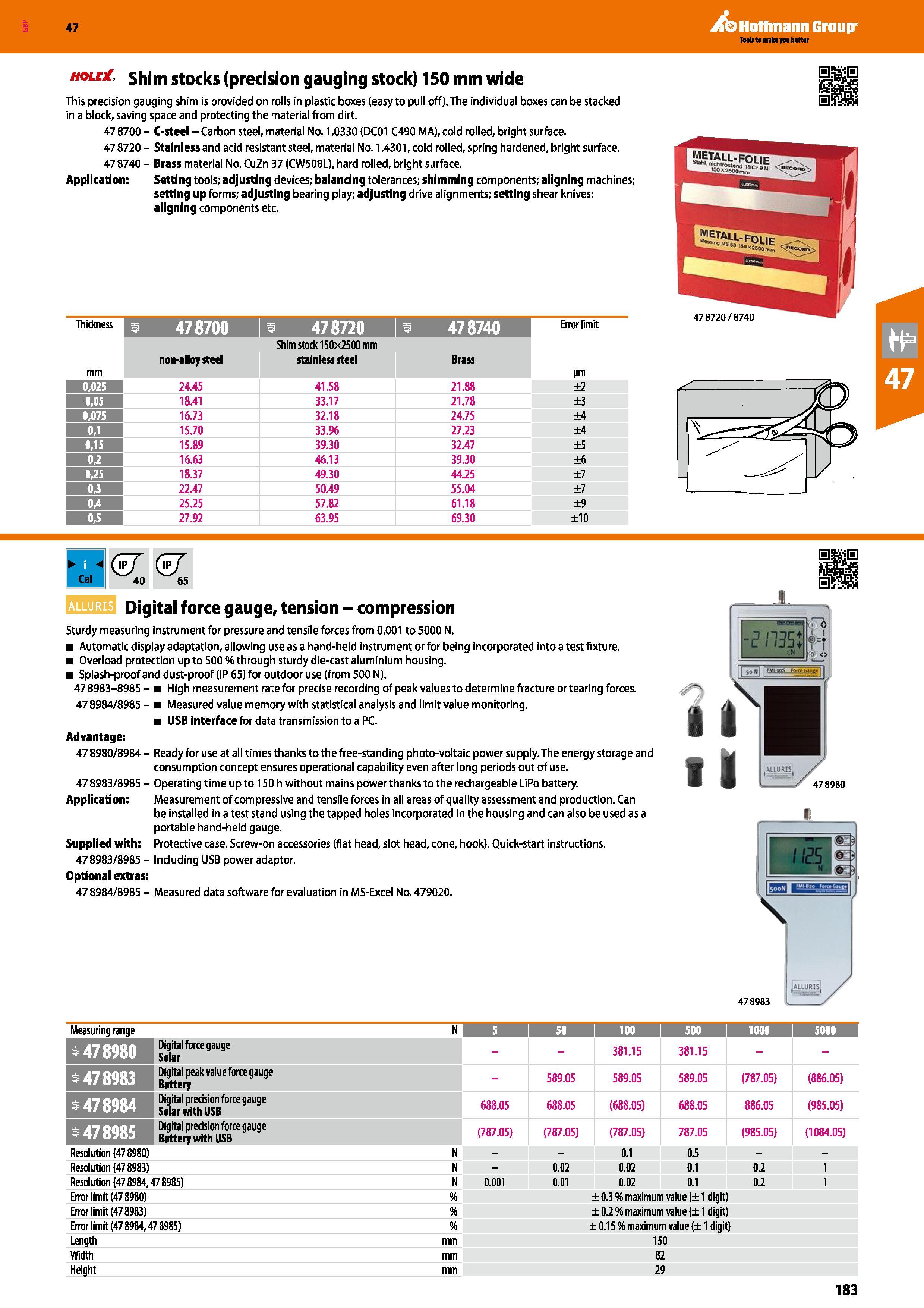

Hoffmann Group 47 holoC. shim stocks (precision gauging stock) 150 mm wide This precision gauging shim is provided on rolls in plastic boxes (easy to pull off).The individual boxes can be stacked in a block, saving space and protecting the material from dirt. 47 8700 - C-steel - Carbon steel, material No. 1.0330 (DC01 C490 MA), cold rolled, bright surface. 47 8720 - Stainless and acid resistant steel, material No. 1.4301, cold rolled, spring hardened, bright surface. 478740 - Brass material No. CuZn 37 (CW508L), hard rolled, bright surface. Application: Setting tools; adjusting devices; balancing tolerances; shimming components; aligning machines; setting up forms; adjusting bearing play; adjusting drive alignments; setting shear knives; aligning components etc. Thickness 478700 478740 mm non-alloy steel Shim stock 150x2500 mm stainless steel Brass 0,025 24.45 41.58 21.88 0,05 18.41 33.17 21.78 BBB 16.73 32.18 24.75 0,1 15.70 33.96 27.23 0,15 15.89 39.30 32.47 0,2 16.63 46.13 39.30 0,25 18.37 49.30 44.25 0,3 22.47 50.49 55.04 0 A 25.25 57.82 61.18 0,5 27.92 63.95 69.30 Error limit im ±2 ±3 ±4 ±4 ±5 ±6 ±7 ±7 ±9 ±10 478720/8740 (Ip f (Ip f 40 65 ALLURIS Digital force gauge, tension - compression Sturdy measuring instrument for pressure and tensile forces from 0.001 to 5000 N. Automatic display adaptation, allowing use as a hand-held instrument or for being incorporated into a test fixture. Overload protection up to 500% through sturdy die-cast aluminium housing. Splash-proof and dust-proof (IP 65) for outdoor use (from 500 N). 47 8983-8985 - High measurement rate for precise recording of peak values to determine fracture or tearing forces. 47 8984/8985 - Measured value memory with statistical analysis and limit value monitoring. USB interface for data transmission to a PC. Advantage: 47 8980/8984 - Ready for use at all times thanks to the free-standing photo-voltaic power supply. The energy storage and consumption concept ensures operational capability even after long periods out of use. 47 8983/8985 - Operating time up to 150 h without mains power thanks to the rechargeable LiPo battery. Application: Measurement of compressive and tensile forces in all areas of quality assessment and production. Can be installed in a test stand using the tapped holes incorporated in the housing and can also be used as a portable hand-held gauge. Supplied with: Protective case. Screw-on accessories (flat head, slot head, cone, hook). Quick-start instructions. 478983/8985 - Including USB power adaptor. Optional extras: 47 8984/8985 - Measured data software for evaluation in MS-Excel No. 479020. .i. 1 A -< f 3 s: H cN 1 < <> 1 SON f II II 478980 BSD \ 478983 Measuring range ;l' ; il M7 8983 Digital force gauge Solar Digital peak value force gauge Battery Digital precision force gauge Solar with USB Digital precision force gauge Battery with USB Resolution (478980) Resolution (478983) Resolution (478984,478985) Error limit (47 8980) Error limit (47 8983) Error limit (47 8984,47 8985) Length Width Height N N N % % % mm 688.05 (787.05) 0.001 589.05 688.05 (787.05) 0.02 0.01 381.15 589.05 (688.05) (787.05) 381.15 589.05 688.05 787.05 0.1 0.5 0.02 0.1 0.02 0.1 ± 0.3 % maximum value (± 1 digit) ± 0.2 % maximum value (± 1 digit) ± 0.15 % maximum value (± 1 digit) 150 82 29 (787.05) 886.05 (985.05) 0.2 0.2 (886.05) (985.05) (1084.05) 1 1 183
