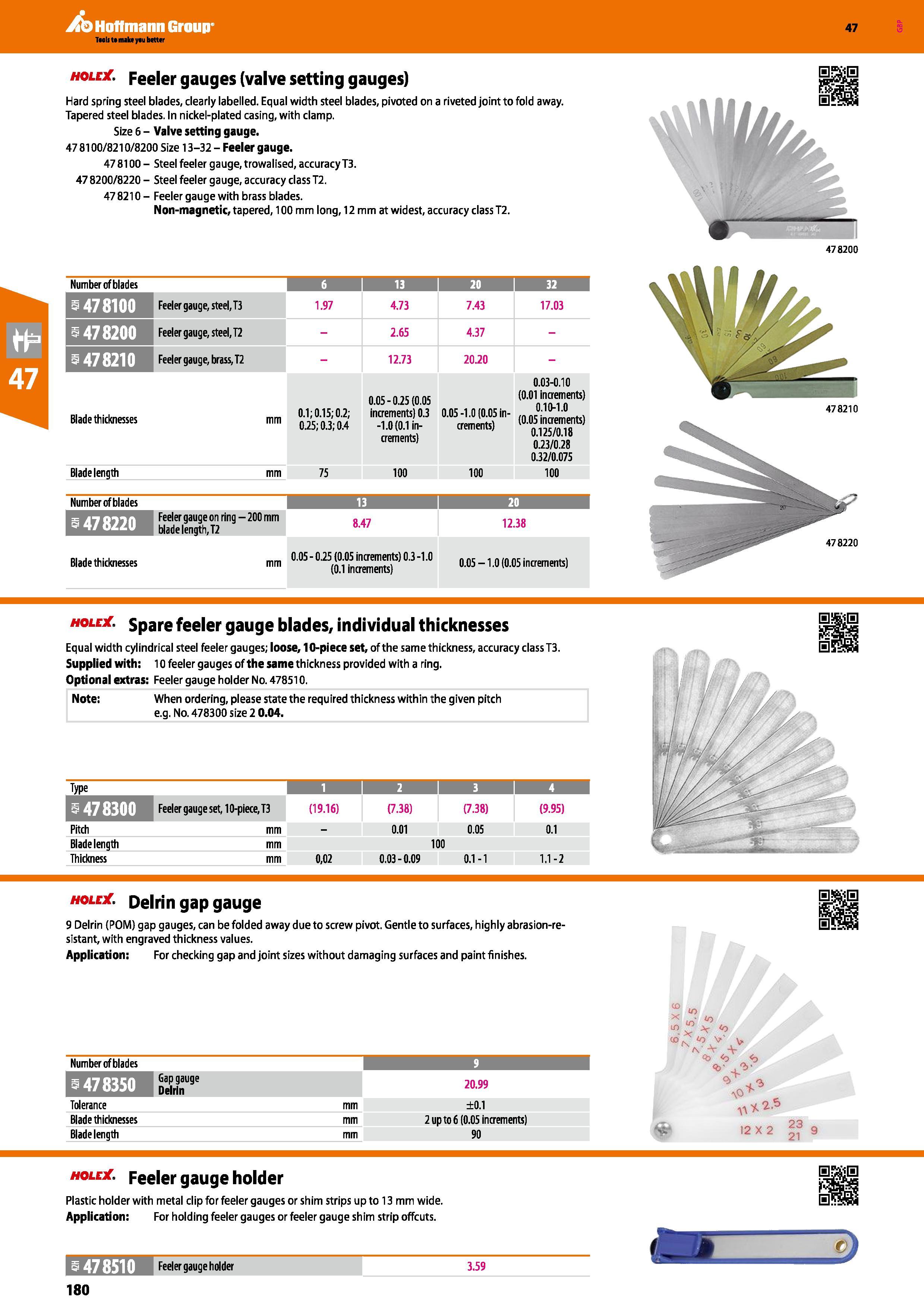

Hoffmann Group 47 hole . Feeler gauges (valve setting gauges) Hard spring steel blades, clearly labelled. Equal width steel blades, pivoted on a riveted joint to fold away. Tapered steel blades. In nickel-plated casing, with clamp. Size 6 - Valve setting gauge. 47 8100/8210/8200 Size 13-32 - Feeler gauge. 478100 - Steel feeler gauge, trowalised, accuracy T3. 47 8200/8220 - Steel feeler gauge, accuracy class T2. 478210- Feeler gauge with brass blades. Non-magnetic, tapered, 100 mm long, 12 mm at widest, accuracy class T2. Number of blades 6 i 13 20 1 32 1 5 478100 Feeler gauge, steel, T3 1.97 4.73 7.43 17.03 5 478200 Feeler gauge, steel, T2 - 2.65 4.37 - 5 478210 Feeler gauge, brass, T2 - 12.73 20.20 - Blade thicknesses mm 0.1; 0.15; 0.2; 0.25; 0.3; 0.4 0.05 - 0.25(0.05 increments) 0.3 -1.0 (0.1 increments) 0.05-1.0 (0.05 increments) 0.03-0.10 (0.01 increments) 0.10-1.0 (0.05 increments) 0.125/0.18 0.23/0.28 0.32/0.075 Blade length mm 75 100 100 100 Number of blades 13 20 1 5 478220 Feeler gauge on ring - 200 mm blade length, T2 8.47 12.38 Blade thicknesses mm 0.05 - 0.25 (0.05 increments) 0.3 -1.0 (0.1 increments) 0.05 -1.0 (0.05 increments) Type 1 1 2 1 3 1 4 5 478300 Feeler gauge set, 10-piece, T3 (19.16) (7.38) (7.38) (9.95) Pitch mm - 0.01 0.05 0.1 Blade length mm 100 Thickness mm 0,02 0.03-0.09 0.1-1 1.1-2 478220 hole Spare feeler gauge blades, individual thicknesses Equal width cylindrical steel feeler gauges; loose, 10-piece set, of the same thickness, accuracy class T3. Supplied with: 10 feeler gauges of the same thickness provided with a ring. Optional extras: Feeler gauge holder No. 478510. Note: When ordering, please state the required thickness within the given pitch e.g. No. 478300 size 2 0.04. holex. Delrin gap gauge 9 Delrin (POM) gap gauges, can be folded away due to screw pivot. Gentle to surfaces, highly abrasion-resistant, with engraved thickness values. Application: For checking gap and joint sizes without damaging surfaces and paint finishes. 5 47 8350 Gap gauge Delrin 20.99 Tolerance mm ±0.1 Blade thicknesses mm 2 up to 6 (0.05 increments) Blade length mm 90 “>'n > A Y -V- > \0' Y\ 12 X 2 9 hole . Feeler gauge holder Plastic holder with metal clip for feeler gauges or shim strips up to 13 mm wide. Application: For holding feeler gauges or feeler gauge shim strip offcuts. Feeler gauge holder 3.59 SJ 180
