177 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.177

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 177 0177 ENG Lab2u

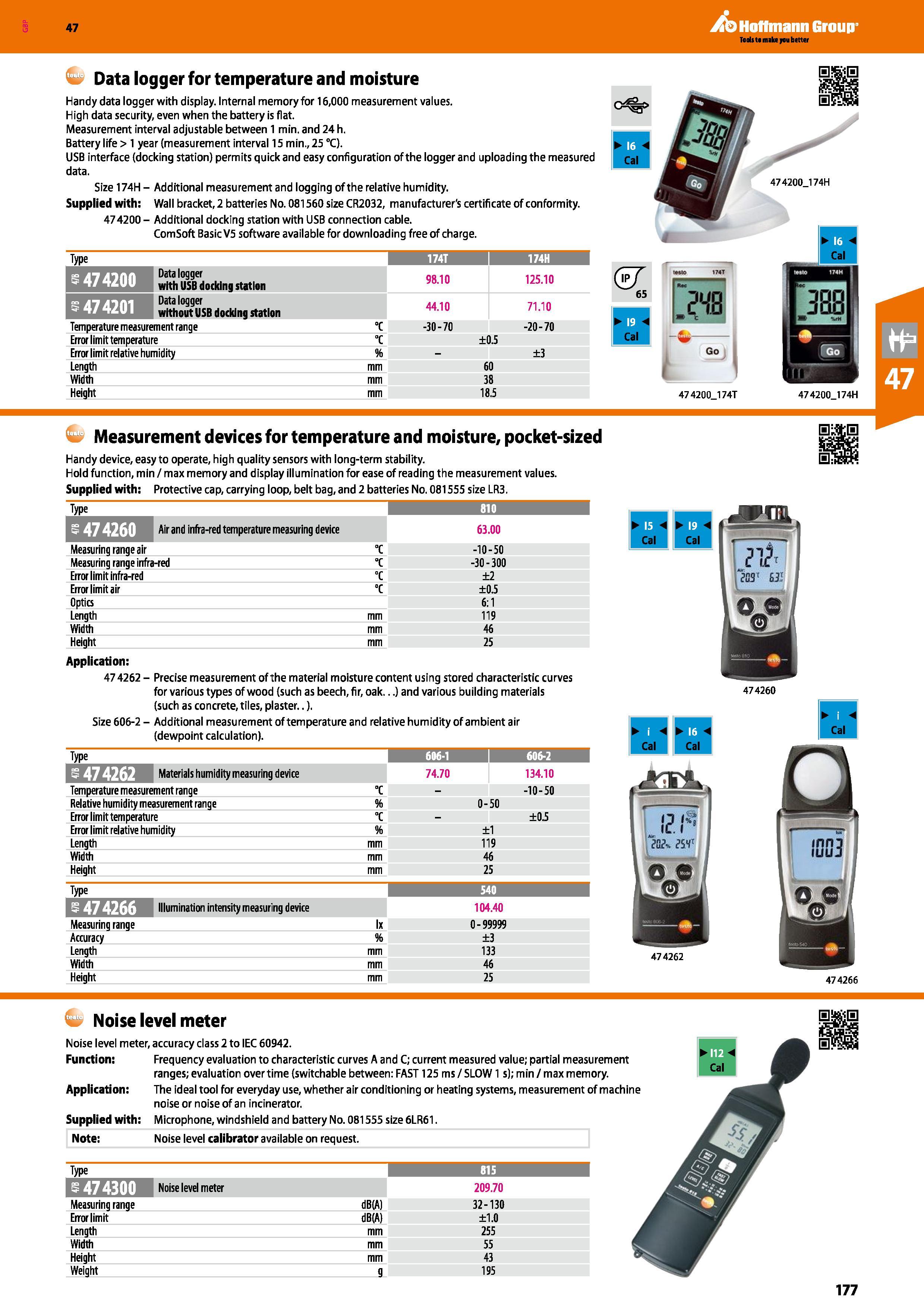

Hoffmann Group 47 Data logger for temperature and moisture Handy data logger with display. Internal memory for 16,000 measurement values. High data security, even when the battery is flat. Measurement interval adjustable between 1 min. and 24 h. Battery life > 1 year (measurement interval 15 min., 25 °C). USB interface (docking station) permits quick and easy configuration of the logger and uploading the measured Size 174H - Additional measurement and logging of the relative humidity. Supplied with: Wall bracket, 2 batteries No. 081560 size CR2032, manufacturer's certificate of conformity. 474200 - Additional docking station with USB connection cable. ComSoft Basic V5 software available for downloading free of charge. 474200J74H Type 174T 174H 1 Datalogger with USB docking station 98.10 125.10 Datalogger without USB docking station 44.10 71.10 Temperature measurement range "C -30-70 -20-70 Error limit temperature °C ±0.5 Error limit relative humidity % - ±3 Length mm 60 Width mm 38 Height mm 18.5 tMIO 174T Go 47 4200_174T Measurement devices for temperature and moisture, pocket-sized Handy device, easy to operate, high quality sensors with long-term stability. Hold function, min / max memory and display illumination for ease of reading the measurement values. Supplied with: Protective cap, carrying loop, belt bag, and 2 batteries No. 081555 size LR3. Type 810 1 yjTvTnj Air and infra-red temperature measuring device 63.00 Measuring range air °C -10-50 Measuring range infra-red “C -30-300 Error limit infra-red °C ±2 Error limit air "C ±0.5 Optics 6:1 Length mm 119 Width mm 46 Height mm 25 Application: 47 4262 - Precise measurement of the material moisture content using stored characteristic curves for various types of wood (such as beech, fir, oak...) and various building materials (such as concrete, tiles, plaster..). Size 606-2 - Additional measurement of temperature and relative humidity of ambient air (dewpoint calculation). Type 606-1 1 606-2 j Materials humidity measuring device 74.70 134.10 Temperature measurement range ”C _ -10-50 Relative humidity measurement range % 0-50 Error limit temperature °c _ ±0.5 Error limit relative humidity % ±1 Length mm 119 Width mm 46 Height mm 25 Type 540 1 XyTvTjTifl Illumination intensity measuring device 104.40 Measuring range Ix 0-99999 Accuracy % ±3 Length mm 133 Width mm 46 Height mm 25 Cal 474262 Noise level meter Noise level meter, accuracy class 2 to IEC 60942. Function: Frequency evaluation to characteristic curves A and C; current measured value; partial measurement ranges; evaluation over time (switchable between: FAST 125 ms / SLOW 1 s); min / max memory. Application: The ideal tool for everyday use, whether air conditioning or heating systems, measurement of machine noise or noise of an incinerator. Supplied with: Microphone, windshield and battery No. 081555 size 6LR61 Note: Noise level calibrator available on request. Type 815 I 474300 Noise level meter 209.70 Measuring range dB(A) 32-130 Error limit dB(A) ±1.0 Length mm 255 Width mm 55 Height mm 43 Weight g 195 474260 474266 177
