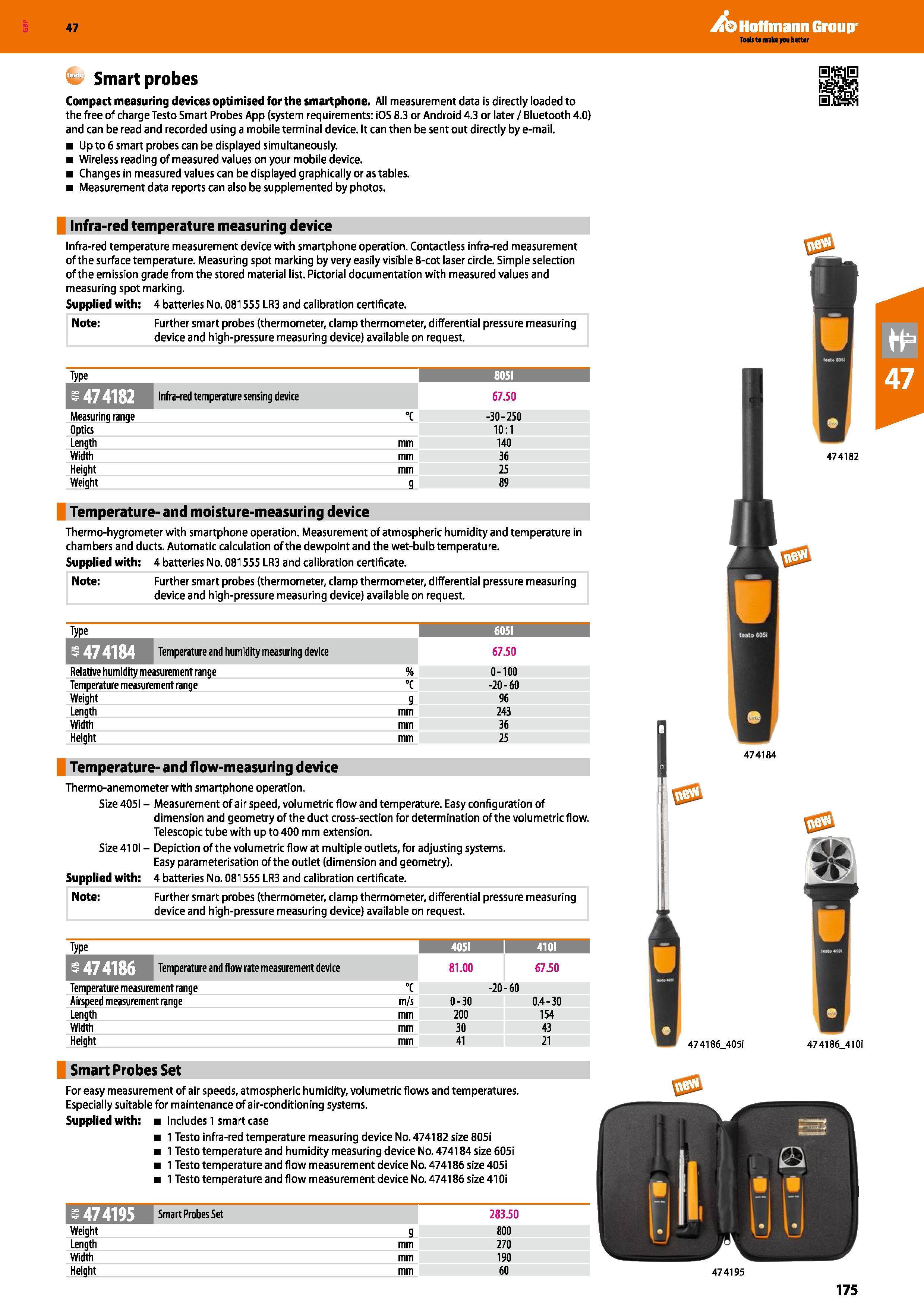

47 Smart probes Compact measuring devices optimised for the smartphone. All measurement data is directly loaded to the free of charge Testo Smart Probes App (system requirements: iOS 8.3 or Android 4.3 or later / Bluetooth 4.0) and can be read and recorded using a mobile terminal device. It can then be sent out directly by e-mail. Up to 6 smart probes can be displayed simultaneously. Wireless reading of measured values on your mobile device. Changes in measured values can be displayed graphically or as tables. Measurement data reports can also be supplemented by photos. Infra-red temperature measuring device Infra-red temperature measurement device with smartphone operation. Contactless infra-red measurement of the surface temperature. Measuring spot marking by very easily visible 8-cot laser circle. Simple selection of the emission grade from the stored material list. Pictorial documentation with measured values and measuring spot marking. Supplied with: 4 batteries No. 081555 LR3 and calibration certificate. Note: Further smart probes (thermometer, clamp thermometer, differential pressure measuring device and high-pressure measuring device) available on request. Type 8051 i HE: ihfrJ Infra-red temperature sensing device 67.50 Measuring range "C -30-250 Optia 10:1 Length mm 140 Width mm 36 Height mm 25 Weight g 89 Temperature-and moisture-measuring device Thermo-hygrometer with smartphone operation. Measurement of atmospheric humidity and temperature in chambers and ducts. Automatic calculation of the dewpoint and the wet-bulb temperature. Supplied with: 4 batteries No. 081555 LR3 and calibration certificate. Note: Further smart probes (thermometer, clamp thermometer, differential pressure measuring device and high-pressure measuring device) available on request. Type 6051 1 Temperature and humidity measuring device 67.50 Relative humidity measurement range % 0-100 Temperature measurement range c -20-60 Weight g 96 Length mm 243 Width mm 36 Height mm 25 Temperature- and flow-measuring device Thermo-anemometer with smartphone operation. Size 4051 - Measurement of air speed, volumetric flow and temperature. Easy configuration of dimension and geometry of the duct cross-section for determination of the volumetric flow. Telescopic tube with up to 400 mm extension. Size 4101 - Depiction of the volumetric flow at multiple outlets, for adjusting systems. Easy parameterisation of the outlet (dimension and geometry). Supplied with: 4 batteries No. 081555 LR3 and calibration certificate. Note: Further smart probes (thermometer, clamp thermometer, differential pressure measuring device and high-pressure measuring device) available on request. Type 4051 I 4101 Temperature and flow rate measurement device 81.00 67.50 Temperature measurement range °C -20-60 Airspeed measurement range m/s 0-30 0.4-30 Length mm 200 154 Width mm 30 43 Height mm 41 21 Smart Probes Set For easy measurement of air speeds, atmospheric humidity, volumetric flows and temperatures. Especially suitable for maintenance of air-conditioning systems. Supplied with: Includes 1 smart case 1 Testo infra-red temperature measuring device No. 474182 size 805i 1 Testo temperature and humidity measuring device No. 474184 size 605i 1 Testo temperature and flow measurement device No. 474186 size 405i 1 Testo temperature and flow measurement device No. 474186 size 41 Oi 474195 HMM 283.50 Weight g 800 Length mm 270 Width mm 190 Height mm 60
