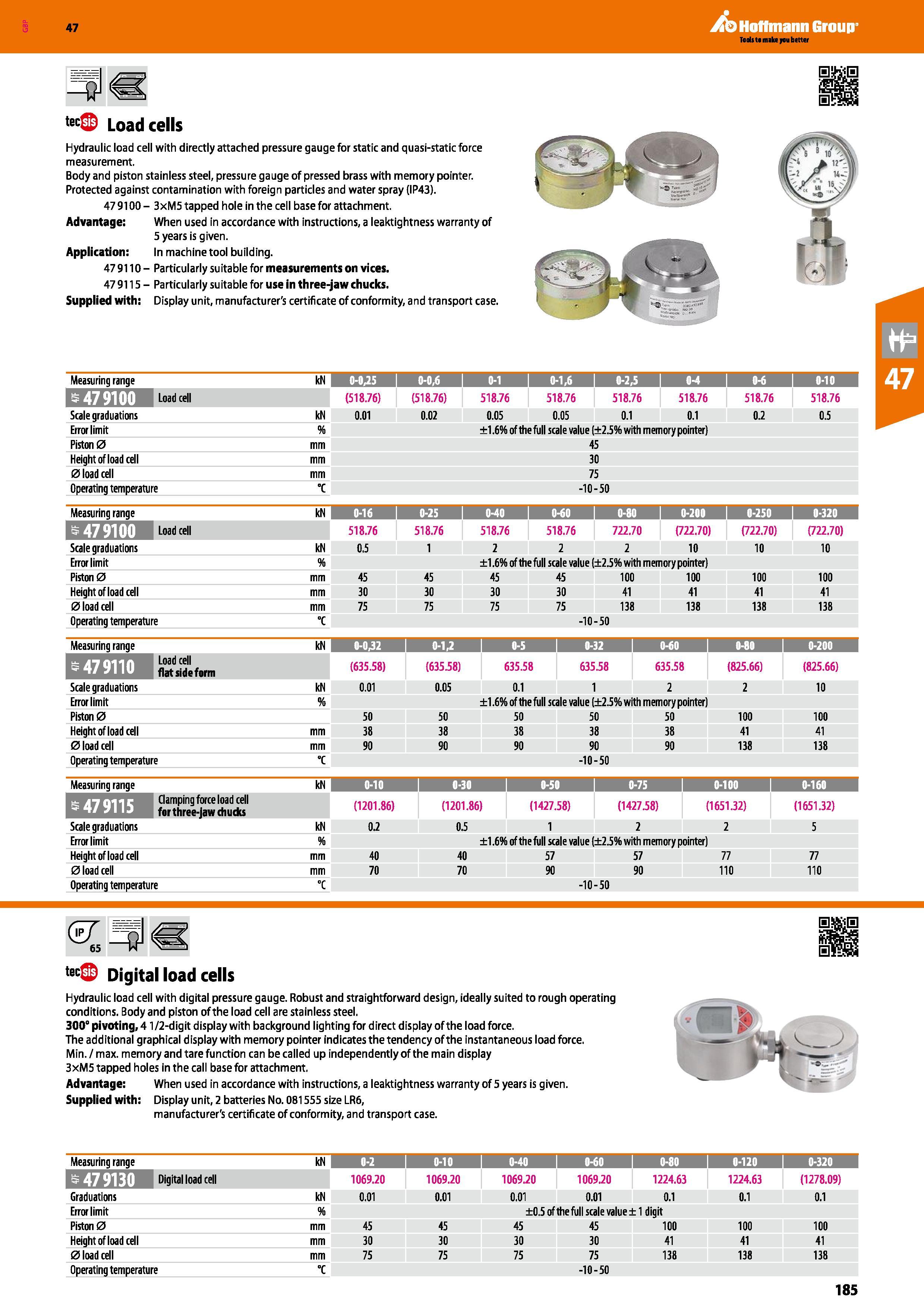

Hoffmann Group 47 tec Load cells Hydraulic load cell with directly attached pressure gauge for static and quasi-static force measurement. Body and piston stainless steel, pressure gauge of pressed brass with memory pointer. Protected against contamination with foreign particles and water spray (IP43). 47 9100 - 3xM5 tapped hole in the cell base for attachment. Advantage: When used in accordance with instructions, a leaktightness warranty of 5 years is given. Application: In machine tool building. 479110 - Particularly suitable for measurements on vices. 47 9115 - Particularly suitable for use in three-jaw chucks. Supplied with: Display unit, manufacturer's certificate of conformity, and transport case. Measuring range kN ; nai 0-0,6 0-1 SBBm 0-4 \ 0-6 0-10 s 479100 (518.76) (518.76) 518.76 518.76 518.76 518.76 518.76 518.76 Scale graduations kN 0.01 0.02 0.05 0.05 0.1 0.1 0.2 0.5 Error limit % ±1.6% of the full scale value (±2.5% with memory pointer) Piston 0 mm 45 Height of load cell mm 30 0 load cell mm 75 Operating temperature "C -10-50 Measuring range kN 0-16 1 0-25 : 0-40 i 0-60 I 0-80 j 0-200 \ 0-250 0-320 s 479100 518.76 518.76 518.76 518.76 722.70 (722.70) (722.70) (722.70) Scale graduations kN 0.5 1 2 2 2 10 10 10 Error limit % ±1.6% of the full scale value (±2.5% with memory pointer) Piston 0 mm 45 45 45 45 100 100 100 100 Height of load cell mm 30 30 30 30 41 41 41 41 0 load cell mm 75 75 75 75 138 138 138 138 Operating temperature "C -10-50 Measuring range kN 0-0,32 0-1,2 0-5 i 0-32 i 0-60 I 0-80 0-200 i Load cell flat side form (635.58) (635.58) 635.58 635.58 635.58 (825.66) (825.66) Scale graduations kN 0.01 0.05 0.1 1 2 2 10 Error limit % ±1.6% of the full scale value (±2.5% with memory pointer) Piston 0 50 50 50 50 50 100 100 Height of load cell mm 38 38 38 38 38 41 41 0 load cell mm 90 90 90 90 90 138 138 Operating temperature c -10-50 Measuring range kN 0-10 0-30 0-50 0-75 I 0-100 I 0-160 MTTffTfl Clamping force load cell for three-jaw chucks (1201.86) (1201.86) (1427.58) (1427.58) (1651.32) (1651.32) Scale graduations kN 0.2 0.5 1 2 2 5 Error limit % ±1.6% of the full scale value (±2.5% with memory pointer) Height of load cell mm 40 40 57 57 77 77 0 load cell mm 70 70 90 90 110 110 Operating temperature °C -10-50 (vJ 65 V tec Digital load cells Hydraulic load cell with digital pressure gauge. Robust and straightforward design, ideally suited to rough operating conditions. Body and piston of the load cell are stainless steel. 300° pivoting, 41/2-digit display with background lighting for direct display of the load force. fy The additional graphical display with memory pointer indicates the tendency of the instantaneous load force. _ v. U V ,< Min. / max. memory and tare function can be called up independently of the main display 3xM5 tapped holes in the call base for attachment. Advantage: When used in accordance with instructions, a leaktightness warranty of 5 years is given. Supplied with: Display unit, 2 batteries No. 081555 size LR6, manufacturer's certificate of conformity, and transport case. Pt Measuring range kN 0-2 j 0-10 i 0-40 I 0-60 0-80 0-120 I 0-320 Is479130 1069.20 1069.20 1069.20 1069.20 1224.63 1224.63 (1278.09) Graduations kN 0.01 0.01 0.01 0.01 0.1 0.1 0.1 Error limit % ±0.5 of the full scale value ± 1 digit Piston 0 mm 45 45 45 45 100 100 100 Height of load cell mm 30 30 30 30 41 41 41 0 load cell mm 75 75 75 75 138 138 138 Operating temperature "C -10-50 185
