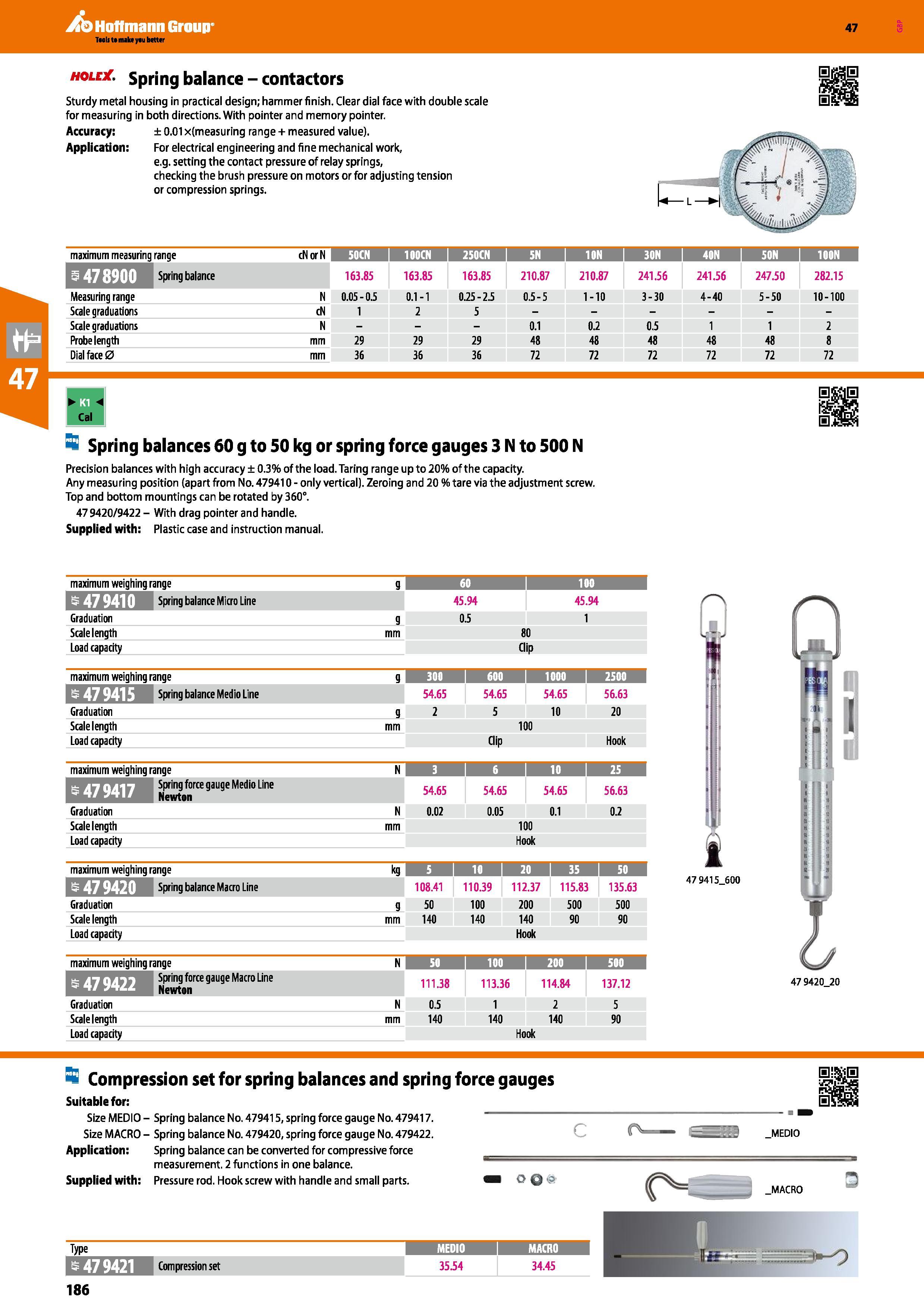

Hoffmann Group 47 hole . Spring balance - contactors Sturdy metal housing in practical design; hammer finish. Clear dial face with double scale for measuring in both directions. With pointer and memory pointer. Accuracy: ± 0.01 x(measuring range + measured value). Application: For electrical engineering and fine mechanical work, e.g. setting the contact pressure of relay springs, checking the brush pressure on motors or for adjusting tension or compression springs. maximum measuring range cNorN 50CN I 100CN 1 250CN ; 5N I 10N 30N 40N 1 50N I 100N 5 478900 163.85 163.85 163.85 210.87 210.87 241.56 241.56 247.50 282.15 Measuring range N 0.05-0.5 0.1-1 0.25-2.5 0.5-5 1-10 3-30 4-40 5-50 10-100 Scale graduations cN 1 2 5 Scale graduations N 0.1 0.2 0.5 1 1 2 Probe length mm 29 29 29 48 48 48 48 48 8 Dial face 0 mm 36 36 36 72 72 72 72 72 72 Spring balances 60 g to 50 kg or spring force gauges 3 N to 500 N Precision balances with high accuracy ±0.3% of the load. Taring range up to 20% of the capacity. Any measuring position (apart from No. 479410 - only vertical). Zeroing and 20 % tare via the adjustment screw. Top and bottom mountings can be rotated by 360°. 47 9420/9422 - With drag pointer and handle. Supplied with: Plastic case and instruction manual. maximum weighing range 9 60 1 100 grZTQH Spring balance Micro Line 45.94 45.94 Graduation g 0.5 1 Scale length mm 80 Load capacity Scale length Load capacity Load capacity Clip maximum weighing range g 300 j 600 i 1000 i 2500 1 W: ftZ j U Spring balance Medio Line 54.65 54.65 54.65 56.63 Graduation g 2 5 10 20 Scale length mm 100 Load capacity Clip Hook maximum weighing range N 3 I 6 I 10 I 25 PrTTVTH Spring force gauge Medio Line HiiSiiUfl Newton 54.65 54.65 54.65 56.63 Graduation N 0.02 0.05 0.1 0.2 100 Hook maximum weighing range kg 5 n 20 I 35 50 FrZTQi Spring balance Macro Line 108.41 110.39 112.37 115.83 135.63 Graduation g 50 100 200 500 500 Scale length mm 140 140 140 90 90 Hook I 47 9415_600 maximum weighing range N 100 I 200 500 j Spring force gauge Macro Line Newton 111.38 113.36 114.84 137.12 Graduation N 0.5 1 2 5 Scale length mm 140 140 140 90 Load capacity Hook 47 9420_20 Compression set for spring balances and spring force gauges Suitable for: Size MEDIO - Spring balance No. 479415, spring force gauge No. 479417. Size MACRO - Spring balance No. 479420, spring force gauge No. 479422. Application: Spring balance can be converted for compressive force measurement. 2 functions in one balance. Supplied with: Pressure rod. Hook screw with handle and small parts. c _MEDIO O & Type HflKMBMI MACRO 47 9421 Compression set 35.54 34.45 186
