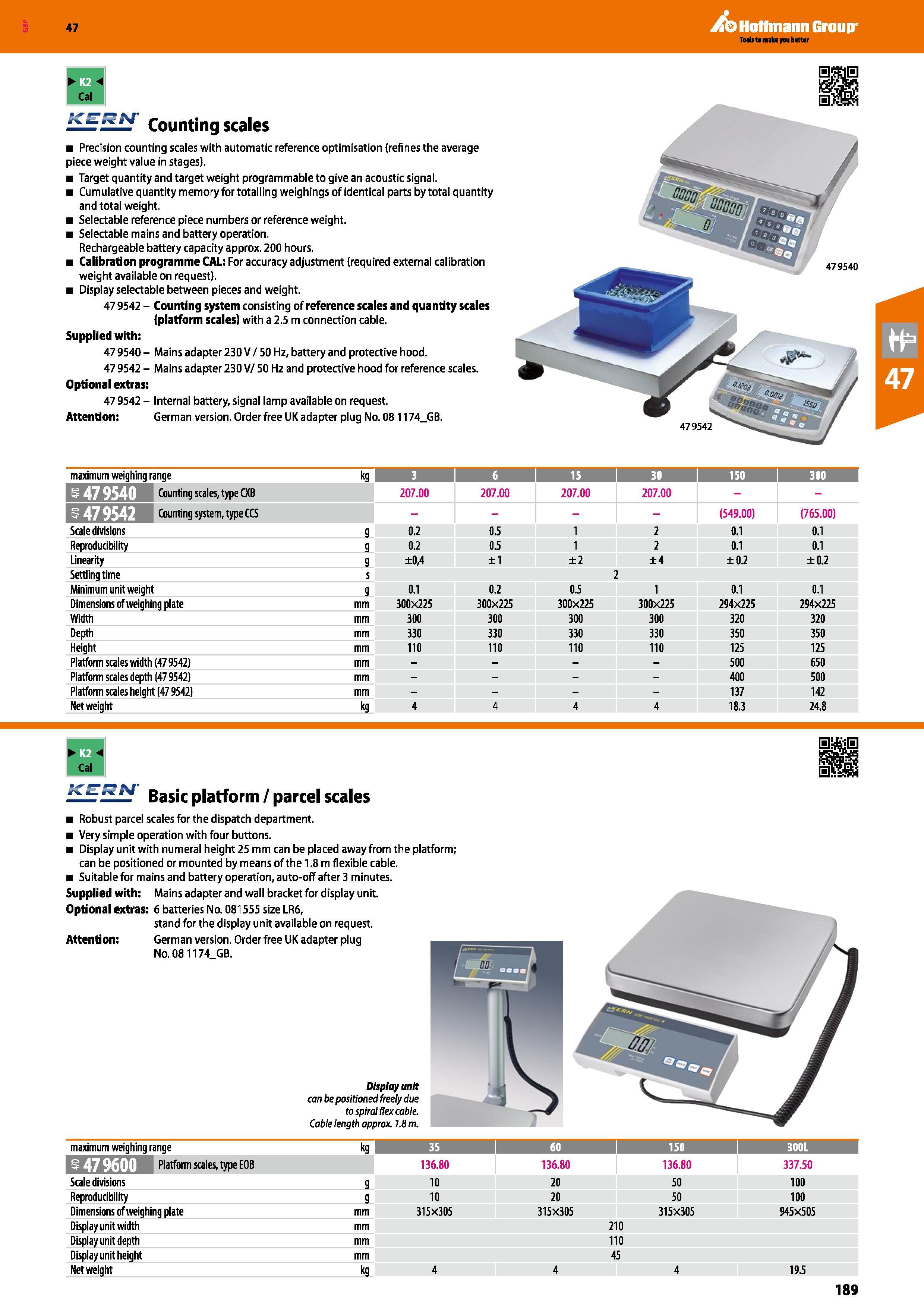

Hoffmann Group 47 KERN Counting scales Precision counting scales with automatic reference optimisation (refines the average piece weight value in stages). Target quantity and target weight programmable to give an acoustic signal. Cumulative quantity memory for totalling weighings of identical parts by total quantity and total weight. Selectable reference piece numbers or reference weight. Selectable mains and battery operation. Rechargeable battery capacity approx. 200 hours. Calibration programme CAL: For accuracy adjustment (required external calibration weight available on request). Display selectable between pieces and weight. 47 9542 - Counting system consisting of reference scales and quantity scales (platform scales) with a 2.5 m connection cable. Supplied with: 47 9540 - Mains adapter 230 V / 50 Hz, battery and protective hood. 47 9542 - Mains adapter 230 V/ 50 Hz and protective hood for reference scales. Optional extras: 47 9542 - Internal battery, signal lamp available on request. Attention: German version. Order free UK adapter plug No. 081174_GB. 479542 maximum weighing range kg 3 6 I 15 I 30 I 150 300 Counting scales, type CXB 207.00 207.00 207.00 207.00 W: Counting system, type CCS - (549.00) (765.00) Scale divisions g 0.2 0.5 1 2 0.1 0.1 Reproducibility g 0.2 Oi 1 2 0.1 0.1 Linearity g ±0,4 ±1 ±2 ±4 ±0.2 ±0.2 Settling time s 2 Minimum unit weight g 0.1 0.2 0.5 1 0.1 0.1 Dimensions of weighing plate mm 300x225 300x225 300x225 300x225 294x225 294x225 Width mm 300 300 300 300 320 320 Depth mm 330 330 330 330 350 350 Height mm 110 110 110 110 125 125 Platform scales width (47 9542) mm - 500 650 Platform scales depth (47 9542) mm - 400 500 Platform scales height (47 9542) mm - 137 142 Net weight kg 4 4 4 4 18.3 24.8 Cal KERN Basic platform / parcel scales Display unit can be positioned freely due to spiral flex cable. Cable length approx. 1.8 m. maximum weighing range kg 35 I 60 I 150 300L i Platform scales,type EOB 136.80 136.80 136.80 337.50 Scale divisions g 10 20 50 100 Reproducibility g 10 20 50 100 Dimensions of weighing plate mm 315x305 315x305 315x305 945x505 Display unit width mm 210 Display unit depth mm 110 Display unit height mm 45 Net weight kg 4 4 4 19.5 Robust parcel scales for the dispatch department. Very simple operation with four buttons. Display unit with numeral height 25 mm can be placed away from the platform; can be positioned or mounted by means of the 1.8 m flexible cable. Suitable for mains and battery operation, auto-off after 3 minutes. Supplied with: Mains adapter and wall bracket for display unit. Optional extras: 6 batteries No. 081555 size LR6, stand for the display unit available on request. Attention: German version. Order free UK adapter plug No. 08 1174_GB.
